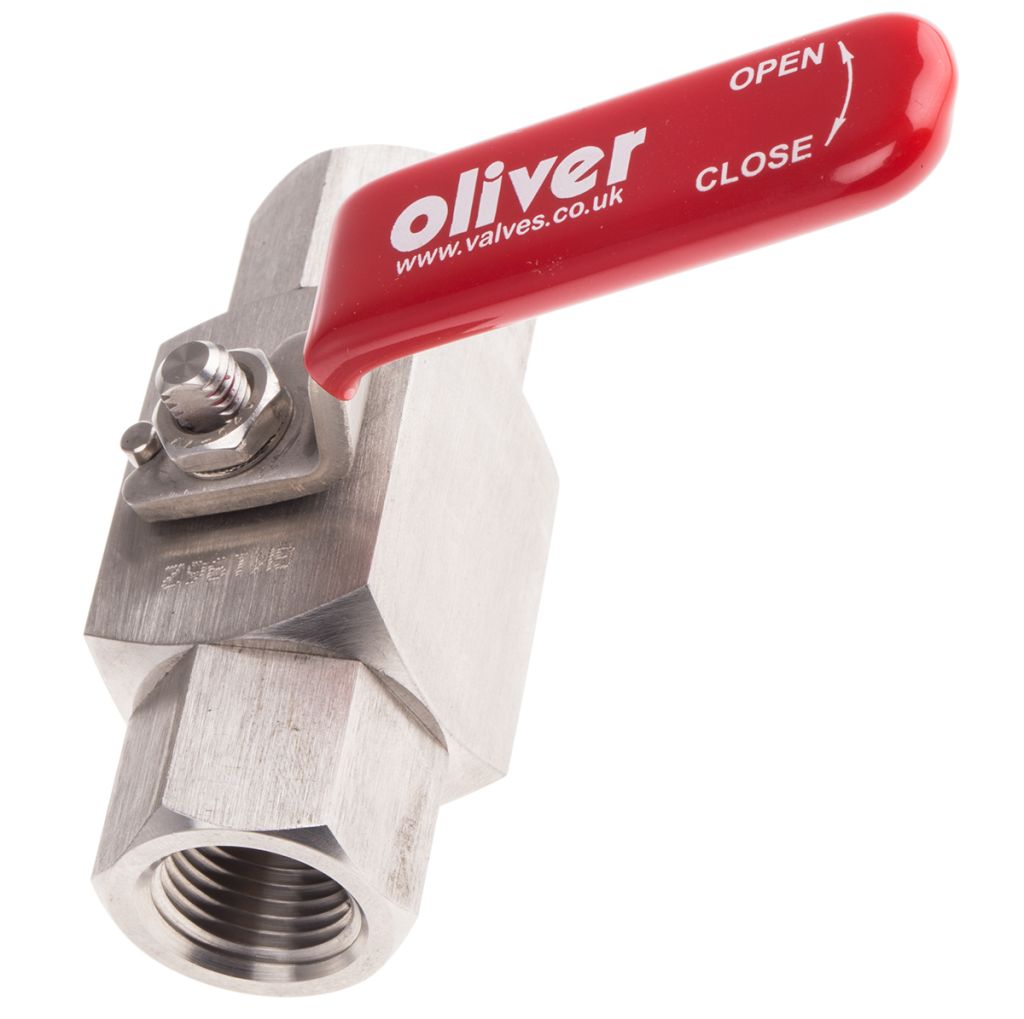

RS PRO Stainless Steel Hydraulic Ball Valve NPT 1/2

RS Stock No.:
3245004
Brand:
RS PRO

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 3245004
Product description RS PRO Stainless Steel Hydraulic Ball Valve NPT 1/2
Manufacturer / Brand RS PRO

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Dec 25, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: GB


Product Details

Stainless Steel Ball Valve

316 stainless steel 2 way ball valves with 3 ball valve options. Valves can be locked in either the open or closed position, panel mount which is cost effective and there is also a firesafe/antistatic option.

Reduced bore design
Available in BSP and NPT sizes
Suitable for use with water and oil
PTFE seals


Specifications

Attribute Value
Brand RS PRO
Body Material Stainless Steel
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +120 °C
Manufacturer Series B6BI
Thread Size 1/2 in
Connection Port Thread NPT 1/2
Maximum Operating Pressure 6000 psi
Thread Standard NPT
Seal Material PTFE (Stem Seal), Teflon/kel-F (Ball Seal)
Number of Ports 2-way
