SMC Toggle Lever 3/2 Pneumatic Manual Control Valve VM400 Series

RS Stock No.:
2688422
Mfr. Prt No.:
VM430-01-08
Brand:
SMC

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 2688422
Product description SMC Toggle Lever 3/2 Pneumatic Manual Control Valve VM400 Series
Manufacturer / Brand SMC
Manufacturer part number VM430-01-08

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Nov 23, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: FR


Product Details

Pneumatic Toggle Valves

3//2 mechanical valves
Wide variety of actuator mechanisms
Rc 1/ 8 or Rc 1/ 4 ports

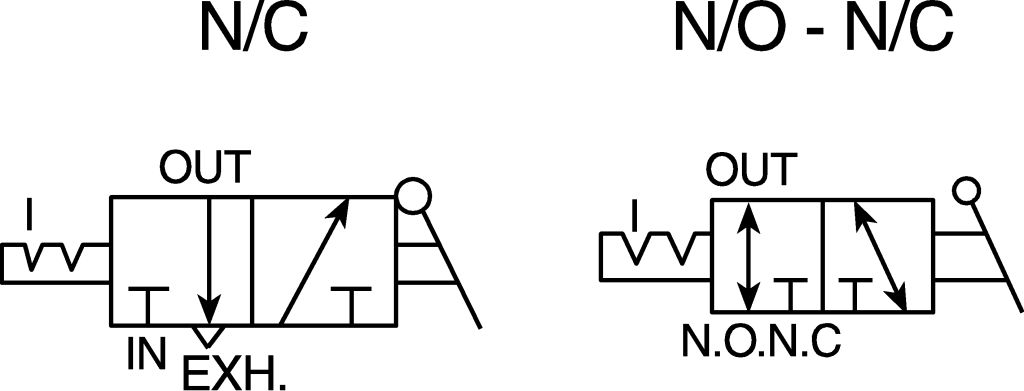

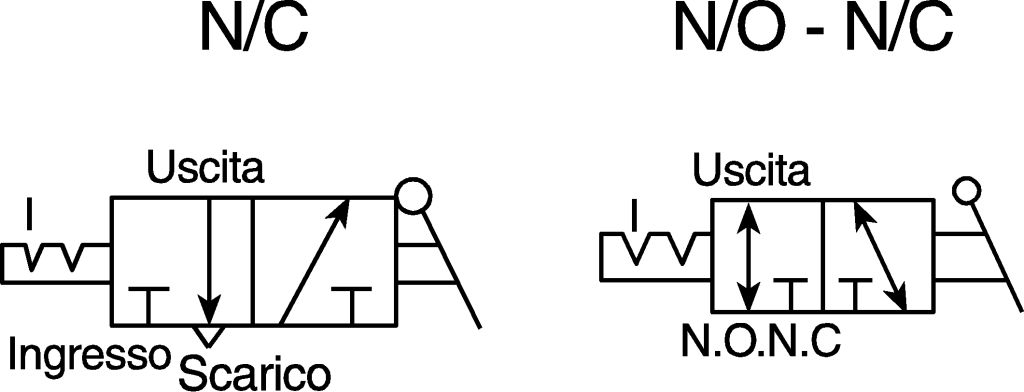

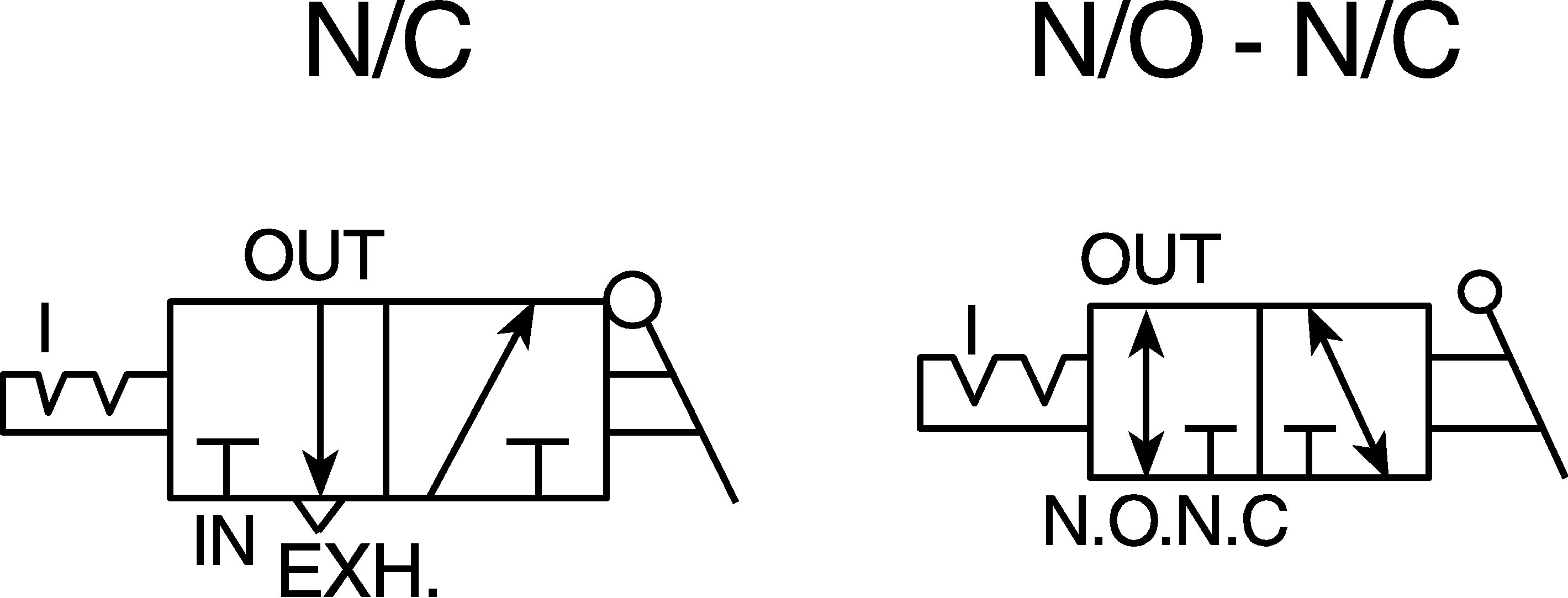

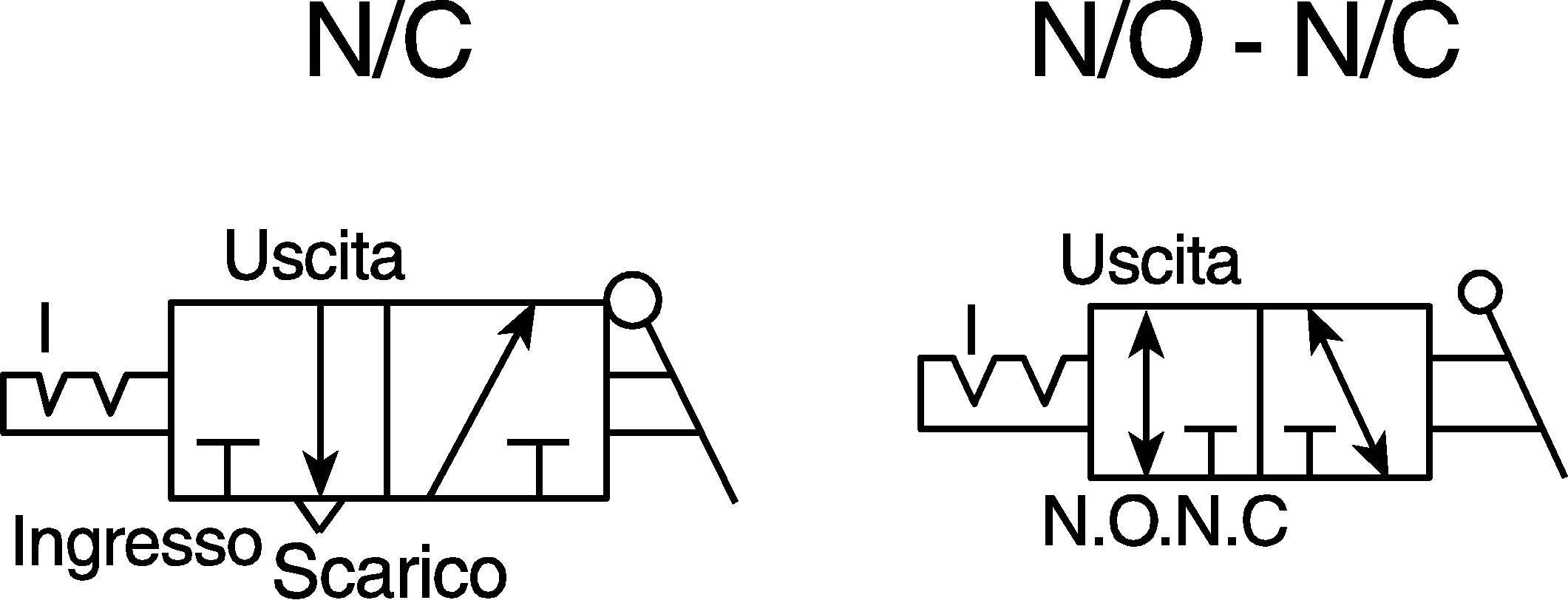

N/O - N/C can be piped for either option

L268821-01L268821-02LI268821-01LI268821-10

Specifications

Attribute Value
Brand SMC
Maximum Flow Rate 338.77 NL/min
Maximum Operating Temperature +60 °C
Control Mechanism Toggle Lever
Manufacturer Series VM400
Thread Size 1/8 in
Connection Port Thread Rc 1/8
Maximum Operating Pressure 1 MPa
Thread Standard Rc
Number of Ports 3/2
Function 3/2
Body Material Aluminium Alloy
Minimum Operating Temperature -5 °C
