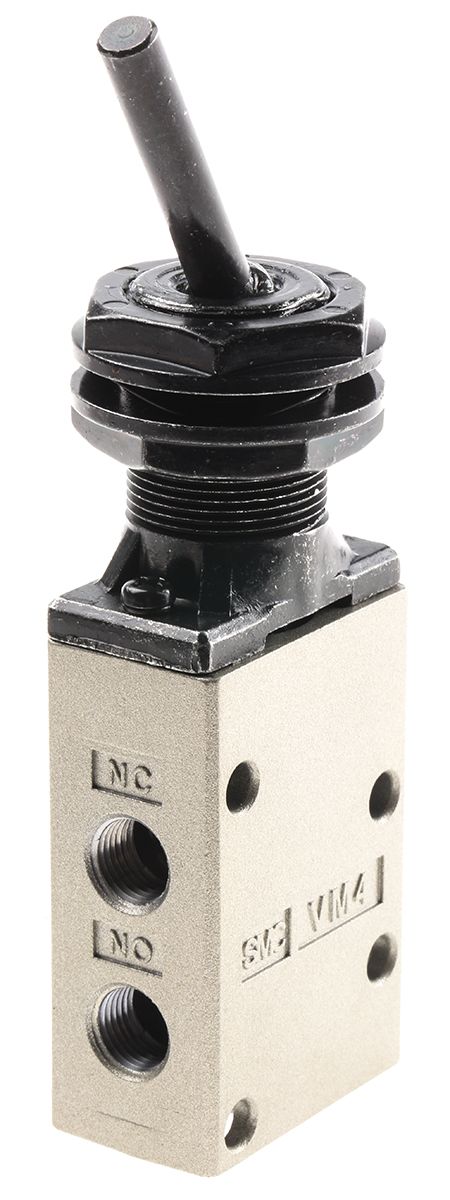

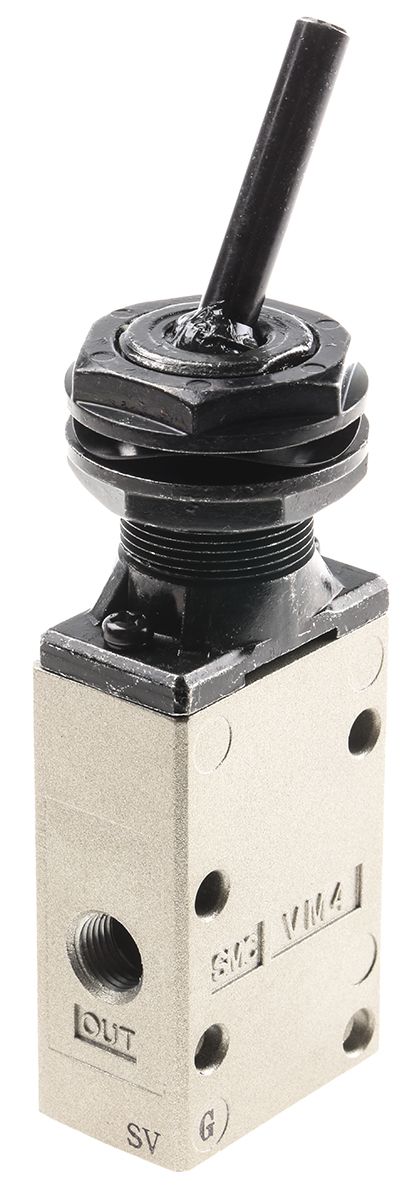

SMC Toggle Lever 3/2 Pneumatic Manual Control Valve VM400 Series
- RS Stock No.:
- 2688422
- Mfr. Prt No.:
- VM430-01-08
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2688422 |
| Product description | SMC Toggle Lever 3/2 Pneumatic Manual Control Valve VM400 Series |
| Manufacturer / Brand | SMC |
| Manufacturer part number | VM430-01-08 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Pneumatic Toggle Valves
3//2 mechanical valves
Wide variety of actuator mechanisms
Rc 1/ 8 or Rc 1/ 4 ports
N/O - N/C can be piped for either option
Specifications
| Attribute | Value |
| Brand | SMC |
| Maximum Flow Rate | 338.77 NL/min |
| Maximum Operating Temperature | +60 °C |
| Control Mechanism | Toggle Lever |
| Manufacturer Series | VM400 |
| Thread Size | 1/8 in |
| Connection Port Thread | Rc 1/8 |
| Maximum Operating Pressure | 1 MPa |
| Thread Standard | Rc |
| Number of Ports | 3/2 |
| Function | 3/2 |
| Body Material | Aluminium Alloy |
| Minimum Operating Temperature | -5 °C |
