RS PRO Adjustable Angle Gauge, Steel
- RS Stock No.:
- 1368104
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1368104 |
| Product description | RS PRO Adjustable Angle Gauge, Steel |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 16, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details

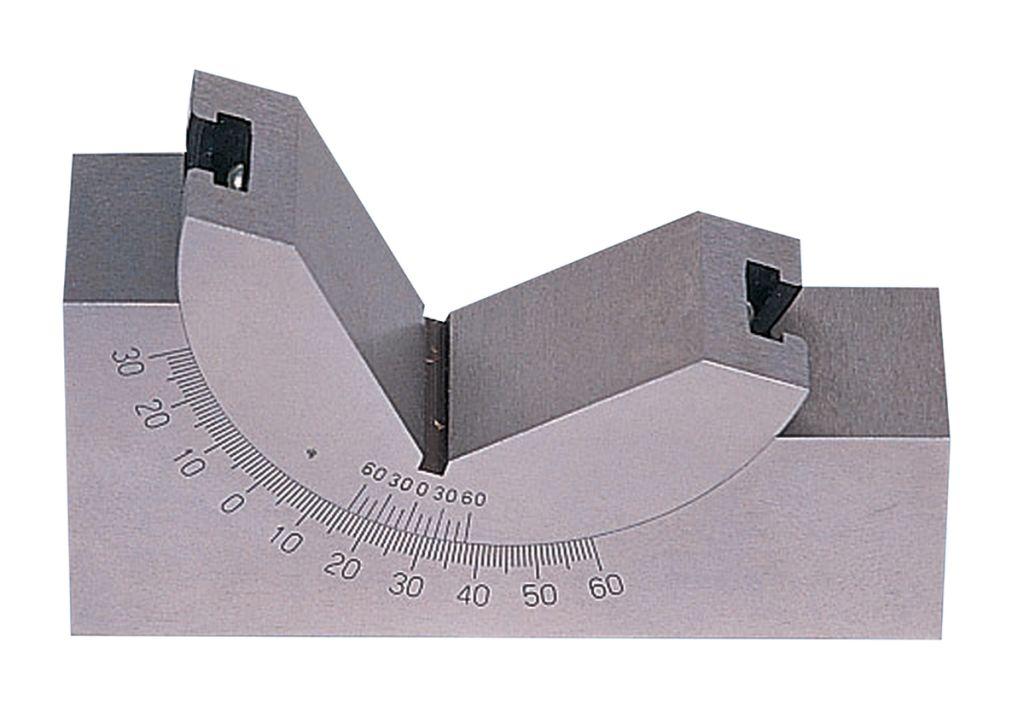

RS Pro Adjustable Angle Gauges
RS Pro adjustable angle gauges, used in milling machine and grinding machine. Precise V-shaped, adjustable 0-60°. Suitable for fast angle positioning for layout, drilling, milling set-up tasks.
Features and Benefits
• Manufactured from chrome steel hardened
• 90º vee located in precision tee slot
• Vee movement: 60º anti clockwise, 30º clockwise
• Vernier scale on vee reads in 10 sec. divisions
• Vee locked in place by 2 tee nuts
• Dimensions: length 102 mm, height 48 mm, width 30 mm
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Length | 102 mm |
| Material | Steel |
| Height | 48 mm |
| Width | 30 mm |
| Dimensions | 102 x 48 x 30 mm |
