Microchip MRF24J40MA-I/RM Zigbee Transceiver, 12-Pin Module
- RS Stock No.:
- 6665748
- Mfr. Prt No.:
- MRF24J40MA-I/RM
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 6665748 |
| Product description | Microchip MRF24J40MA-I/RM Zigbee Transceiver, 12-Pin Module |
| Manufacturer / Brand | Microchip |
| Manufacturer part number | MRF24J40MA-I/RM |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 6665748 |
| Product description | Microchip MRF24J40MA-I/RM Zigbee Transceiver, 12-Pin Module |
| Manufacturer / Brand | Microchip |
| Manufacturer part number | MRF24J40MA-I/RM |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
ZigBee is a specification (IEEE 802.15.4) for a suite of high-level communication protocols using small, low-power digital radios for Wireless Personal Area Networks (WPANs).
WPAN (IEEE 802.15.4) - Microchip
MRF24J40MA ZigBee Module

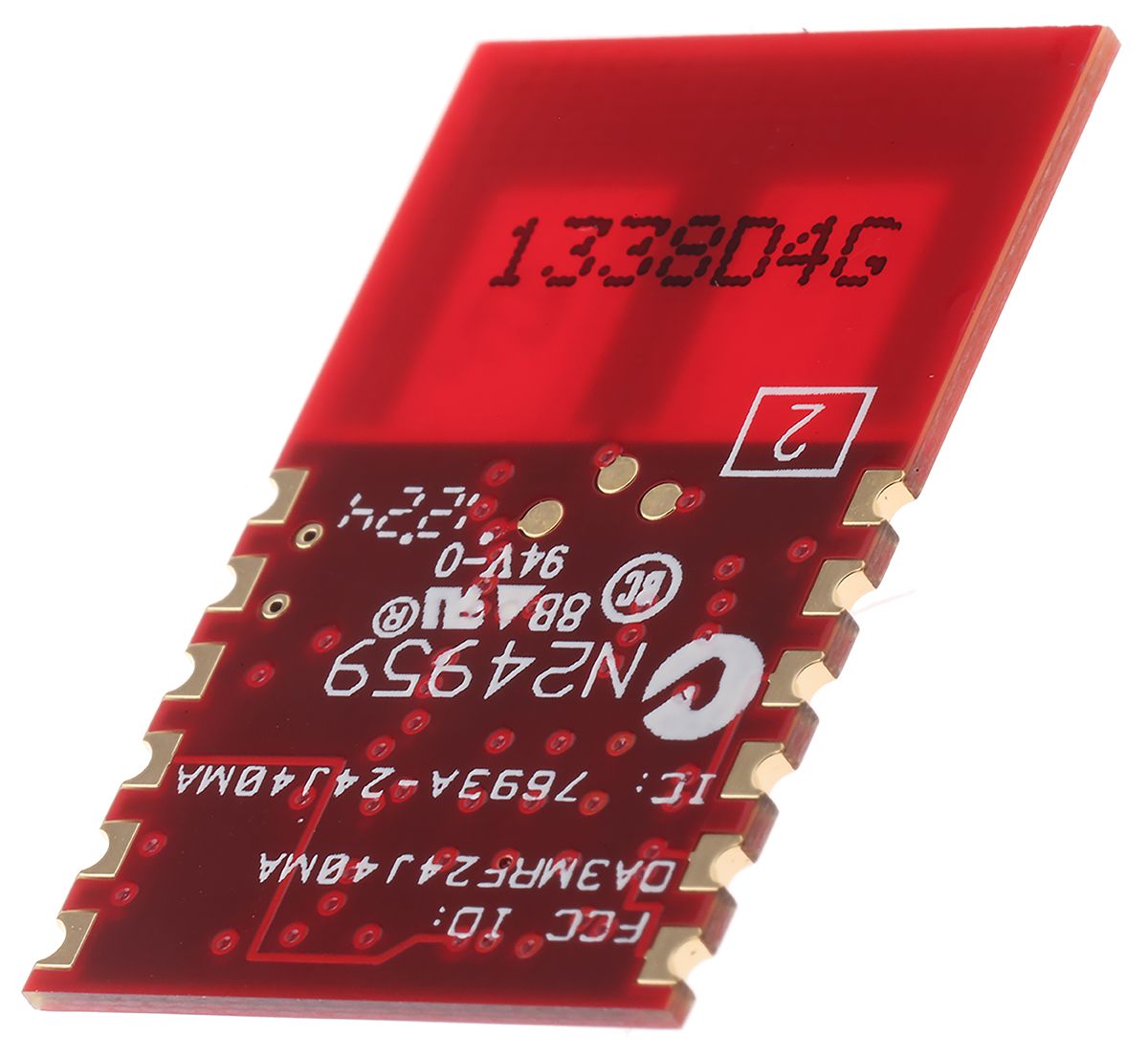

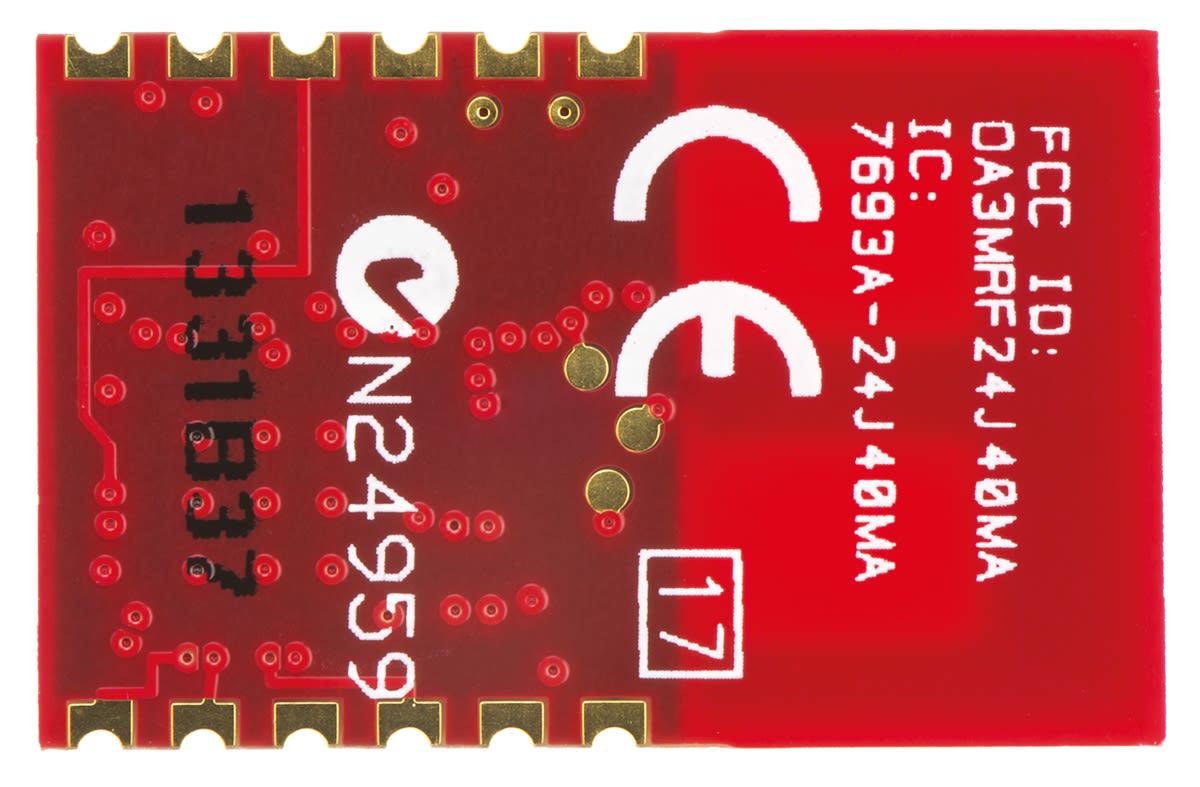

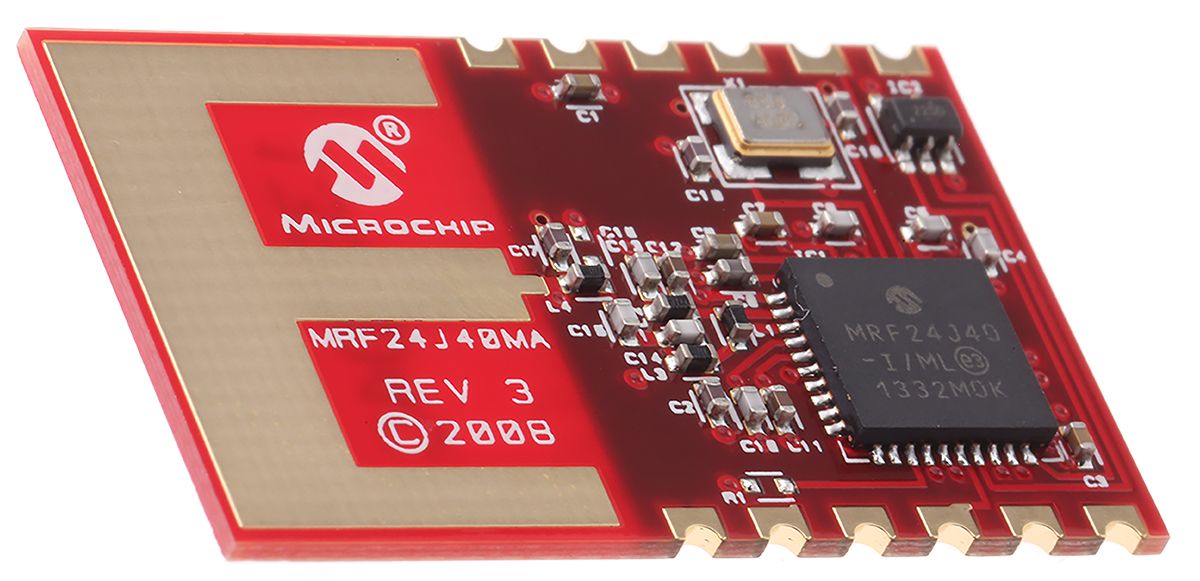

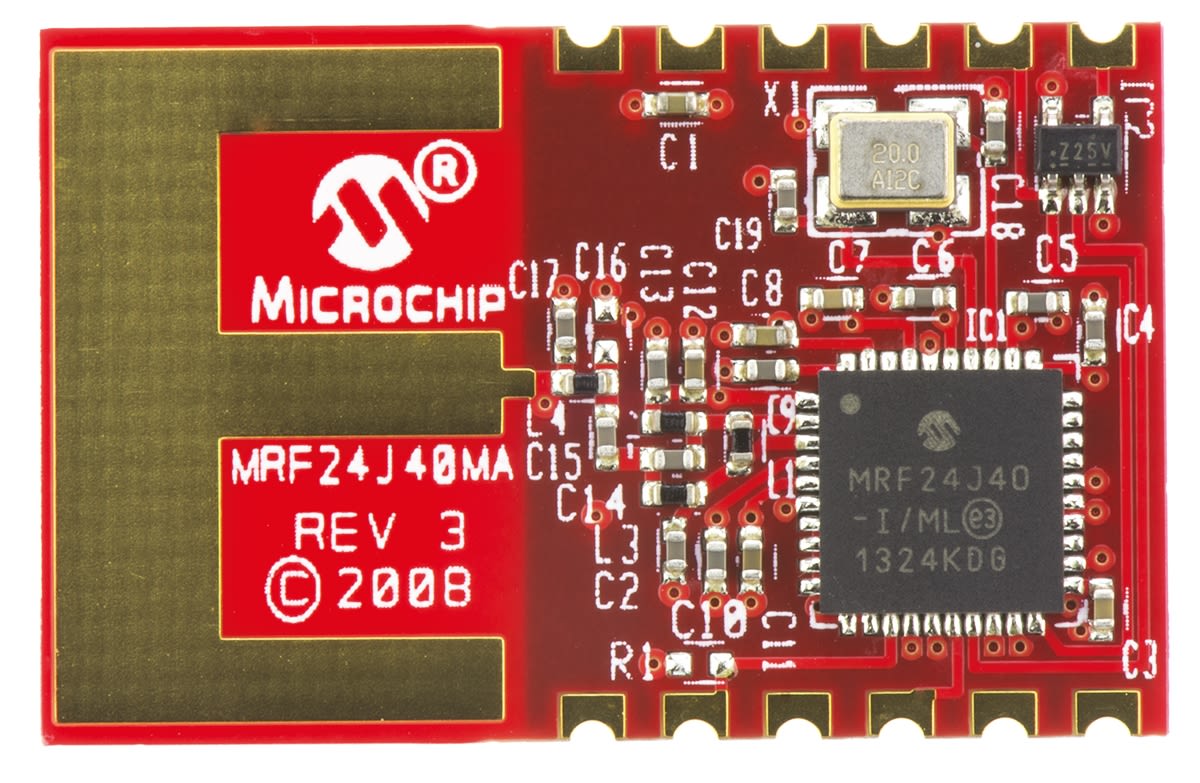

Microchips MRF24J40MA is a very small, wireless 2.4GHz IEEE 802.15.4 transceiver module. This module is surface mounted and comes with an integrated PCB antenna, internal voltage regulator and integrated crystal oscillator. MRF24J40MA is compatible with a range of software including ZigBee, MiWi and MiWi P2P. Not to mention, this module is compliant with a range of PIC families include PIC16F, PIC18F, PIC24F/H, dsPIC33 and PIC32.
Features and benefits:
- Tiny, surface mountable module allows you to easily integrate it into your design
- 2.4GHZ, IEEE 802.15.4 standard with ZigBee, MiWi and MiWi P2P support
- Strong AES-128 encryption for all your security needs
- FCC, IC and ETSI certified
- Brilliant compatibility with Microchips PIC families
- On-board crystal oscillator, antenna and voltage regulator
- Four wire SPI-interface with maximum data speeds of 250Kbps
- Up to an impressive 120m range
- 3.3V typical voltage but can be used in between 3.0 to 3.6V
Applications:
- Wireless sensor networks,
- Home automation
- Building automation
- Consumer applications
AES-128 encryption:
The on-board encryption is a great tool to help protect your privacy and data. AES-128 is a symmetric key encryption cypher and allows you to have a secure key to encrypt & decrypt your data. Symmetric ciphers are much more efficient for encrypting large amounts of data, easily.
Software:
You can find a range of software with the open-source code available at: http://www.microchip.com/wireless
Specifications
| Attribute | Value |
| Brand | Microchip |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Modulation Technique | O-QPSK |
| Primary Keyword | Zigbee Transceiver |
| Number of Operating Bands | 1 |
| Package Type | Module |
| Maximum Operating Temperature | +85 °C |
| Length | 27.94 mm |
| Technology | IEEE 802.15.4 |
| Maximum Operating Supply Voltage | 3.6 V |
| Height | 0.89 mm |
| Width | 17.78 mm |
| Dimensions | 27.94 x 17.78 x 0.89 mm |
| Minimum Operating Supply Voltage | 3.6 V |
| Pin Count | 12 |
| Maximum Operating Band 1 Frequency | 2.48 GHz |
| Minimum Operating Band 1 Frequency | 2400 MHz |
