Legris Pneumatic Fittings Kit, 3151 00 01 58BP
- RS Stock No.:
- 1242628
- Mfr. Prt No.:
- 3151 00 01 58BP
- Brand:
- Legris
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1242628 |
| Product description | Legris Pneumatic Fittings Kit, 3151 00 01 58BP |
| Manufacturer / Brand | Legris |
| Manufacturer part number | 3151 00 01 58BP |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1242628 |
| Product description | Legris Pneumatic Fittings Kit, 3151 00 01 58BP |
| Manufacturer / Brand | Legris |
| Manufacturer part number | 3151 00 01 58BP |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details

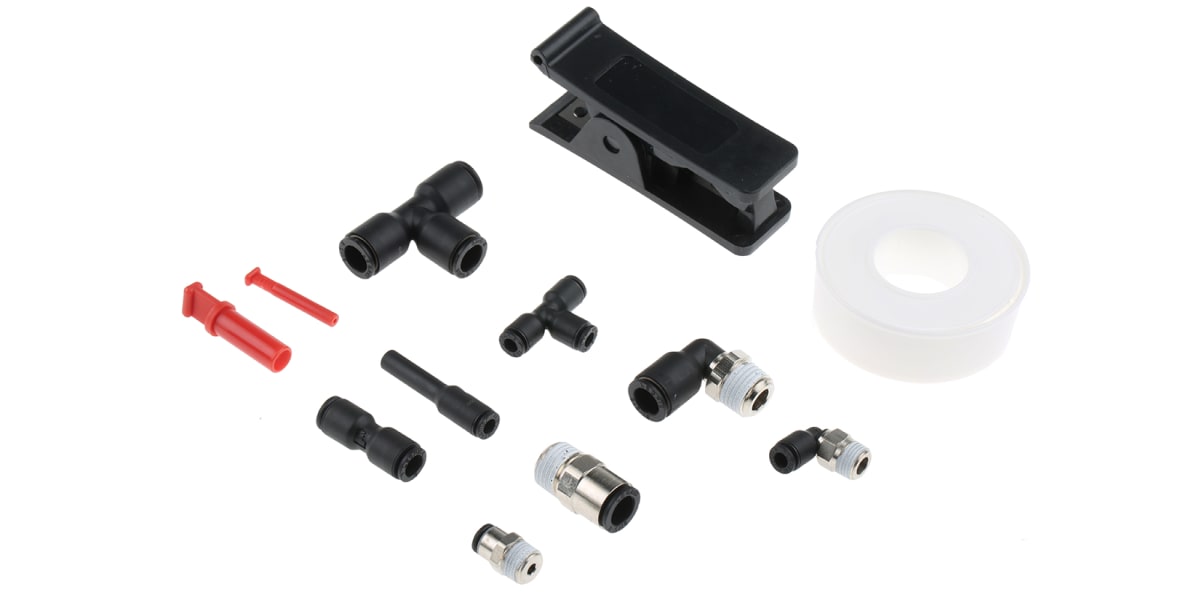

LF3000 Fittings Kits
The LF3000 fitting kits contain a selection of the most popular push-in pneumatics fittings in the most common sizes of 4mm, 6mm and 8mm. Each kit contains over 300 parts and is available with parallel or tapered threaded parts.
Features and Benefits
Full bore for optimum flow
Fixed tube during connection prevents leakage
Conforms to ISO 14743
100% leak tested in production
Silicone free
Ideally suited for use with polymer and soft tubing
Applications
Suitable for use in both vacuum and pressure applications.
Specifications
| Attribute | Value |
| Brand | Legris |
| Kit Contents | 4-6mm Reducer, 4mm Blanking Plug, 4mm Equal Elbow, 4mm Equal Tee, 4mm Straight Connector, 6-8mm Reducer, 6mm Blanking Plug, 6mm Equal Elbow, 6mm Equal Tee, 6mm Straight Connector, 8mm Blanking Plug, 8mm Equal Elbow, 8mm Equal Tee, 8mm Straight Connector, PTFE Tape, R1/4 Male Stud, R1/4 Male Stud Elbow, R1/8 Male Stud, R1/8 Male Stud Elbow, Tube Cutter |
