4PDT MIN ON DELAY TIMER,2-60SEC 24VAC/3A

RS Stock No.:
0340487
Brand:
Omron

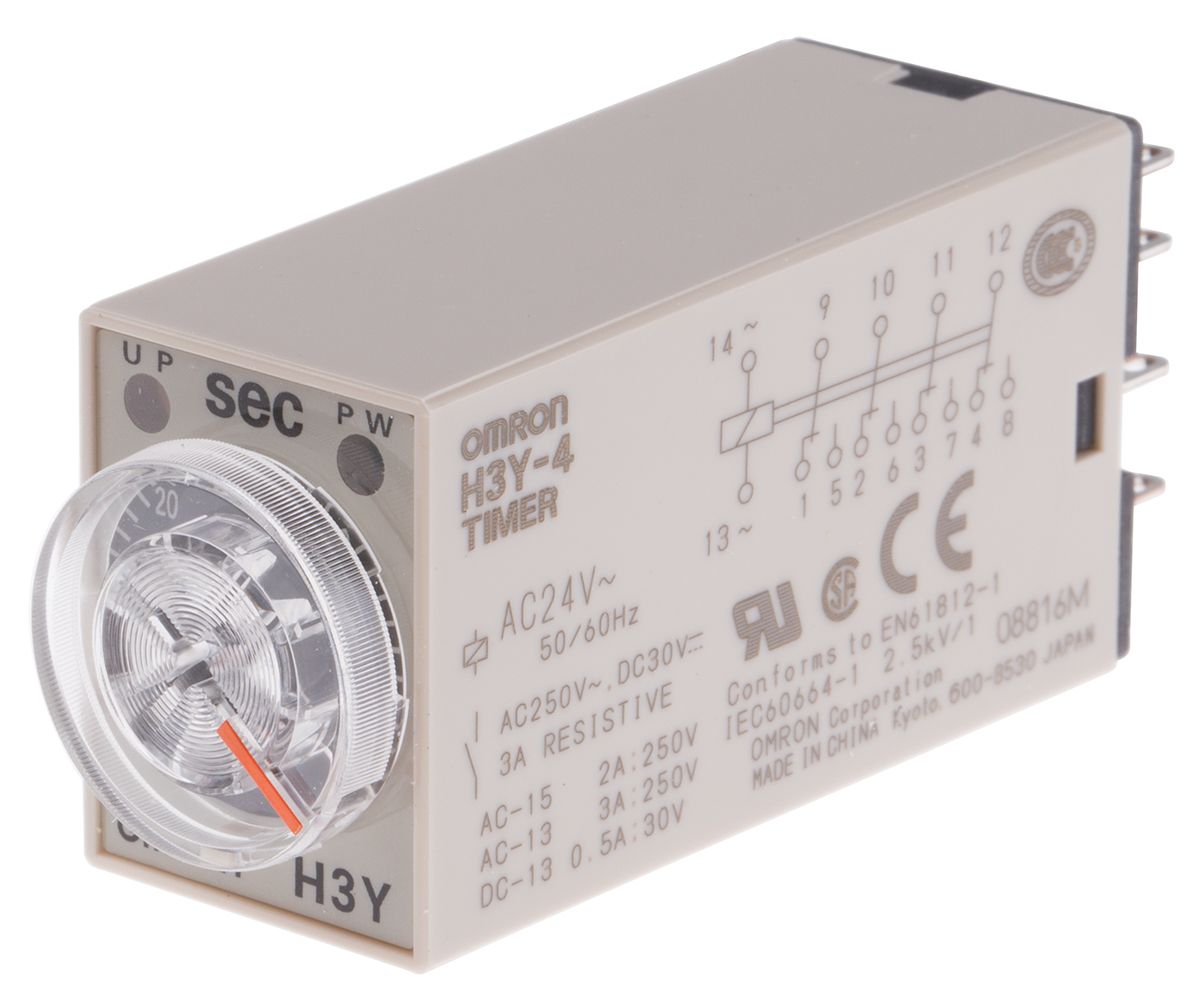

Product image for 4PDT min on delay timer,2-60sec 24Vac/3A
Product image for 4PDT min on delay timer,2-60sec 24Vac/3A
Product image for 4PDT min on delay timer,2-60sec 24Vac/3A
Product image for Omron Timer Relay - 2 → 60 s, 4 Contacts, ON Delay, DIN Rail, Surface Mount
Product image for 4PDT min on delay timer,2-60sec 24Vac/3A

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 0340487
Product description 4PDT MIN ON DELAY TIMER,2-60SEC 24VAC/3A
Manufacturer / Brand Omron

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Dec 23, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Product Details

Miniature - H3Y4

APPROVALS : UL, CSA

Function - 111
Pin compatible with MY power relay
Time settings adjustable with a screwdriver

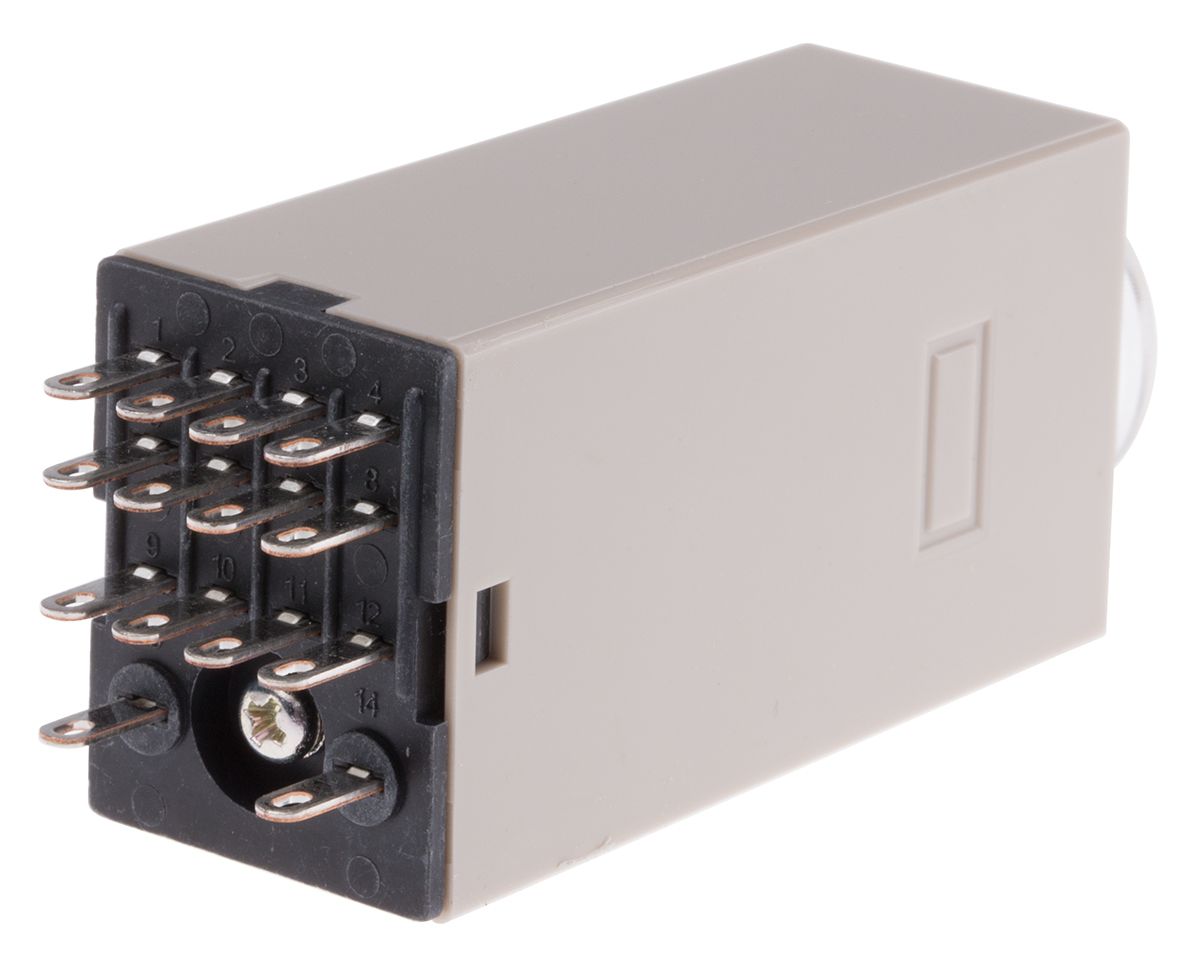

All have 14 pins (rectangular format)

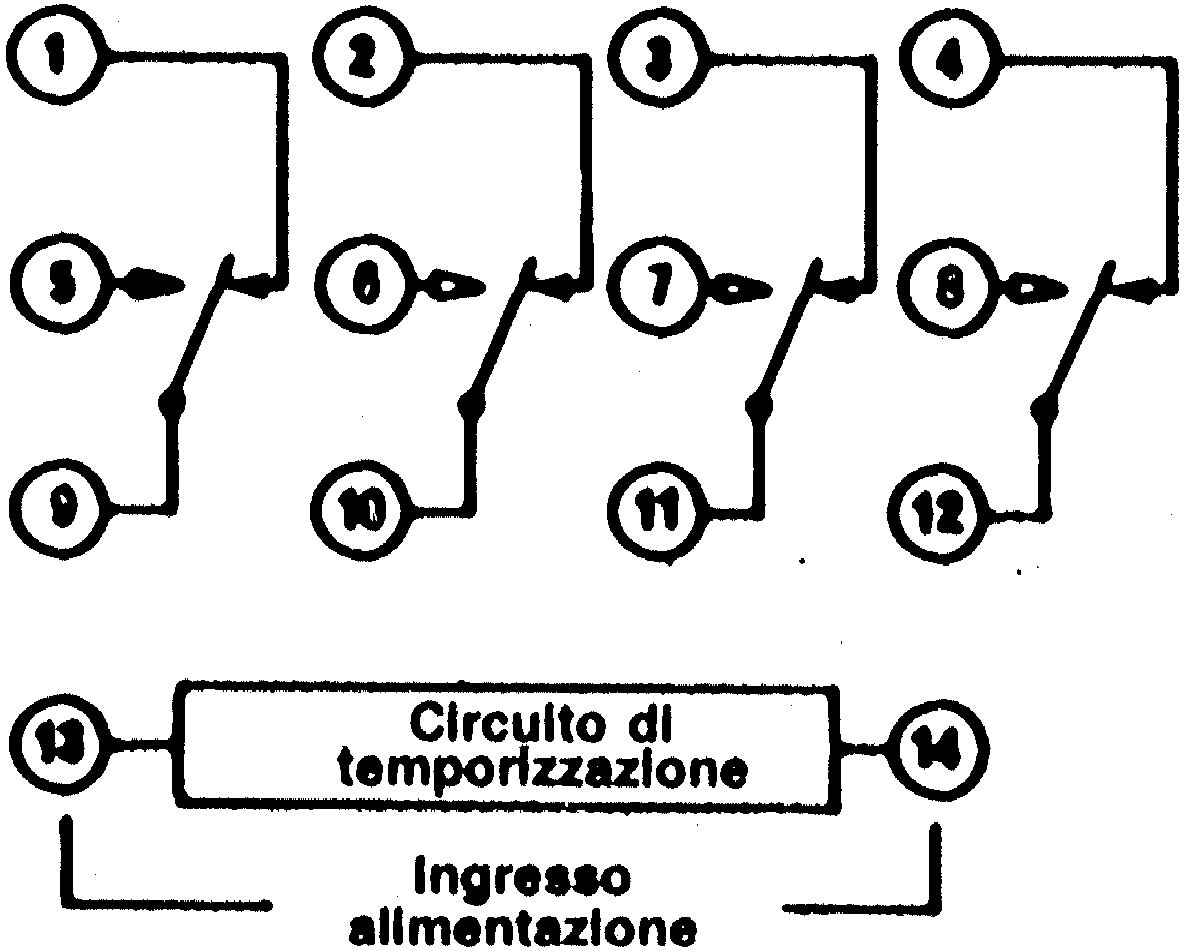

LI341058-01

Specifications

Attribute Value
Brand Omron
Time Delay 0.1 s
Time Range 2 → 60 s
Supply Voltage 24 V ac
Number of Timer Functions Single
Switch Configuration 4PDT
Current Maximum 5 A
Maximum Operating Temperature +50 °C
Minimum Operating Temperature -10 °C
Mode of Operation ON Delay
Power Supply External
Series H3Y-4
Maximum Voltage 250 V ac
Depth 63 mm
Time Increment Seconds
Length 28 mm
Width 21.5 mm
Number of Contacts 4
Mounting Type DIN Rail, Surface Mount
Product image for 4PDT min on delay timer,2-60sec 24Vac/3A
Product image for 4PDT min on delay timer,2-60sec 24Vac/3A
Product image for 4PDT min on delay timer,2-60sec 24Vac/3A
Product image for Omron Timer Relay - 2 → 60 s, 4 Contacts, ON Delay, DIN Rail, Surface Mount
Product image for 4PDT min on delay timer,2-60sec 24Vac/3A
Checking stock...
VND
1,383,802.00
Out of stock
Price Each
Unit(s)Per Unit(VND)
11,383,802.00
*price per unit indicative
