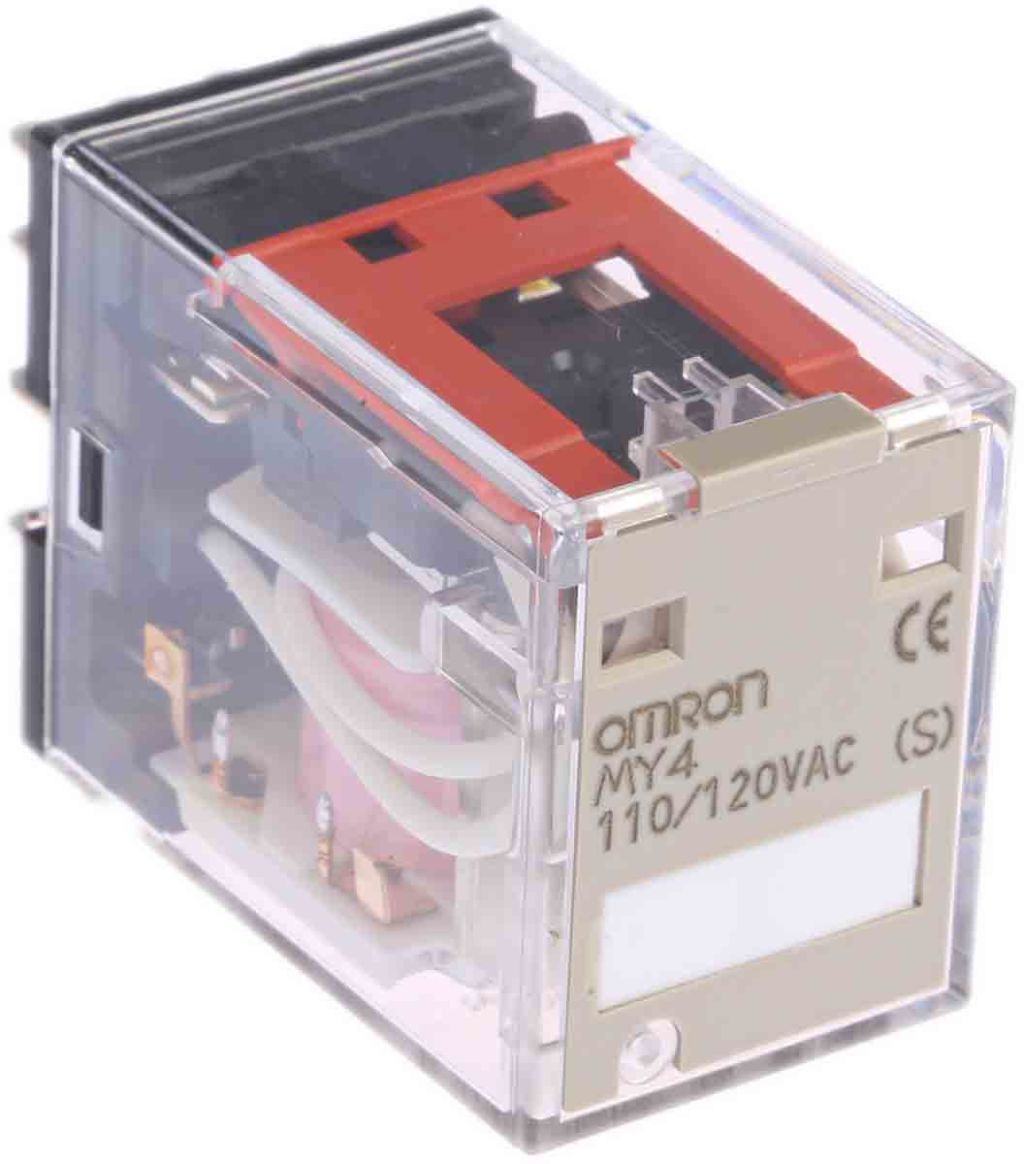

4PDT PLUG-IN RELAY,5A 110/120VAC COIL
- RS Stock No.:
- 4881768
- Brand:
- Omron
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
RS stock number | 4881768 |
Product description | 4PDT PLUG-IN RELAY,5A 110/120VAC COIL |
Manufacturer / Brand | Omron |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Specifications
Attribute | Value |
Brand | Omron |
Height | 36 mm |
Coil Power | 1.1 W |
Coil Resistance | 4.43 kΩ |
Length | 28 mm |
Maximum Switching Power AC | 1.25 kVA |
Contact Configuration | 4PDT |
Terminal Type | Plug In |
Number of Poles | 4 |
Isolation Coil To Contact | 2 kV |
Series | MY4 |
Maximum Switching Voltage DC | 30 V dc |
Coil Voltage | 120 V ac |
Mounting Type | Plug In |
Switching Current | 5 A |
Maximum Switching Power DC | 150 W |
Depth | 21.5 mm |
Maximum Switching Voltage AC | 250 V ac |
