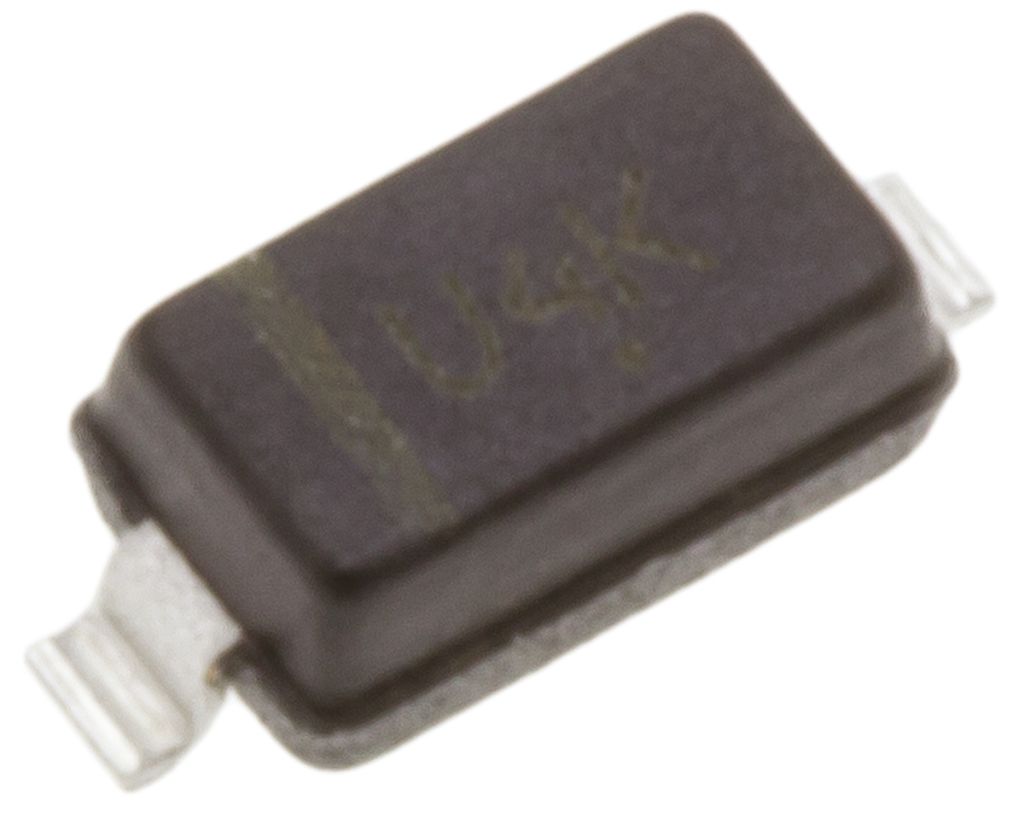

onsemi, 5.1V Zener Diode 5% 500 mW SMT 2-Pin SOD-123
- RS Stock No.:
- 5449753
- Mfr. Prt No.:
- MMSZ5V1T1G
- Brand:
- ON Semiconductor
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 5449753 |
| Product description | onsemi, 5.1V Zener Diode 5% 500 mW SMT 2-Pin SOD-123 |
| Manufacturer / Brand | ON Semiconductor |
| Manufacturer part number | MMSZ5V1T1G |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Zener Diodes, ON Semiconductor
Zener Diodes 500mW, MMSZxxxT1G / SZMMSZxxxT1G Series, ON Semiconductor
Surface Mount case: SOD-123
Specifications
| Attribute | Value |
| Brand | ON Semiconductor |
| Maximum Power Dissipation | 500 mW |
| Maximum Reverse Leakage Current | 2 µA |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Test Current | 5 mA |
| Dimensions | 2.69 x 1.6 x 1.12 mm |
| Nominal Zener Voltage | 5.1 V |
| Maximum Zener Impedance | 60 Ω |
| Zener Type | Voltage Regulator |
| Number of Elements per Chip | 1 |
| Zener Voltage Tolerance | 5 % |
| Package Type | SOD-123 |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 2 |
| Diode Configuration | Single |
