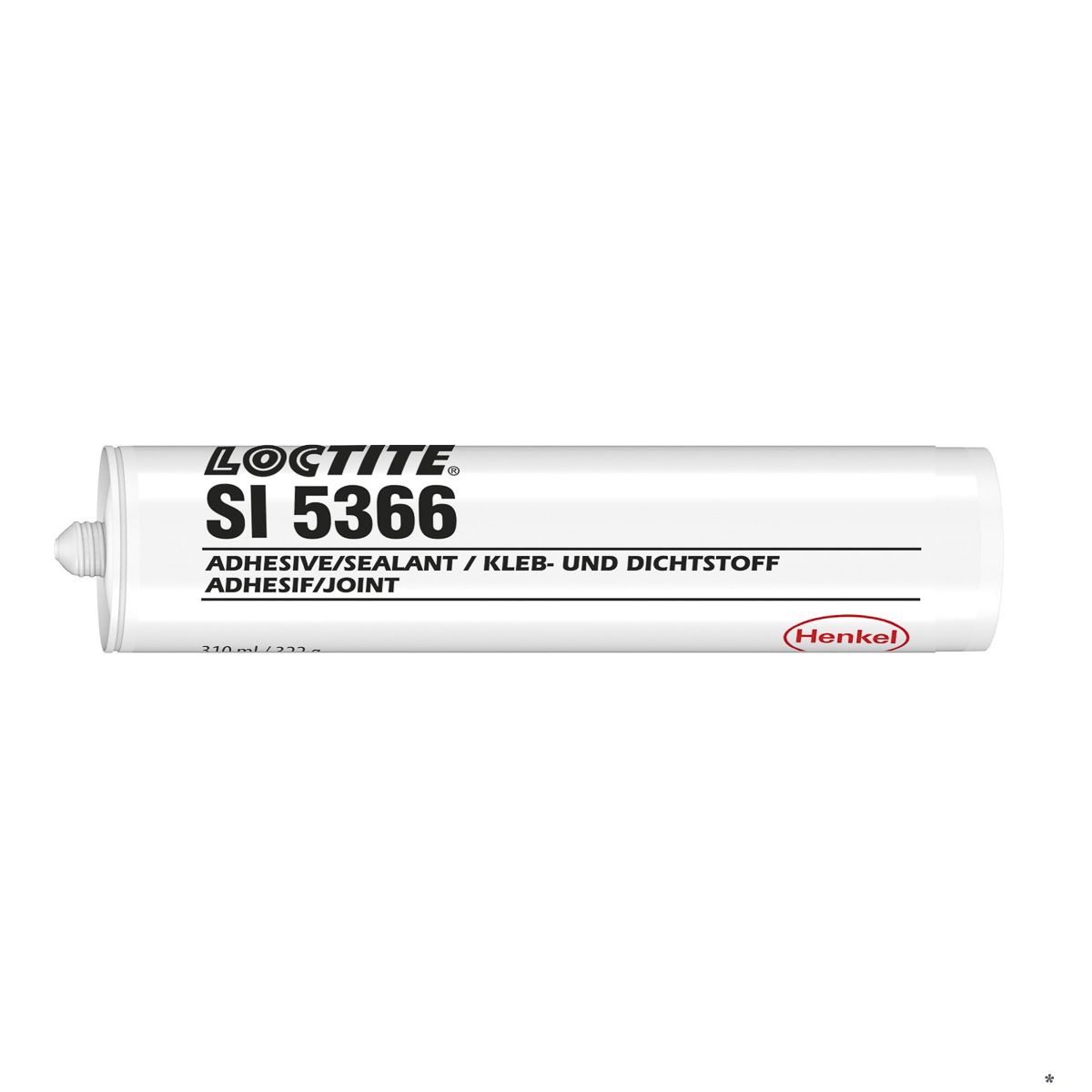

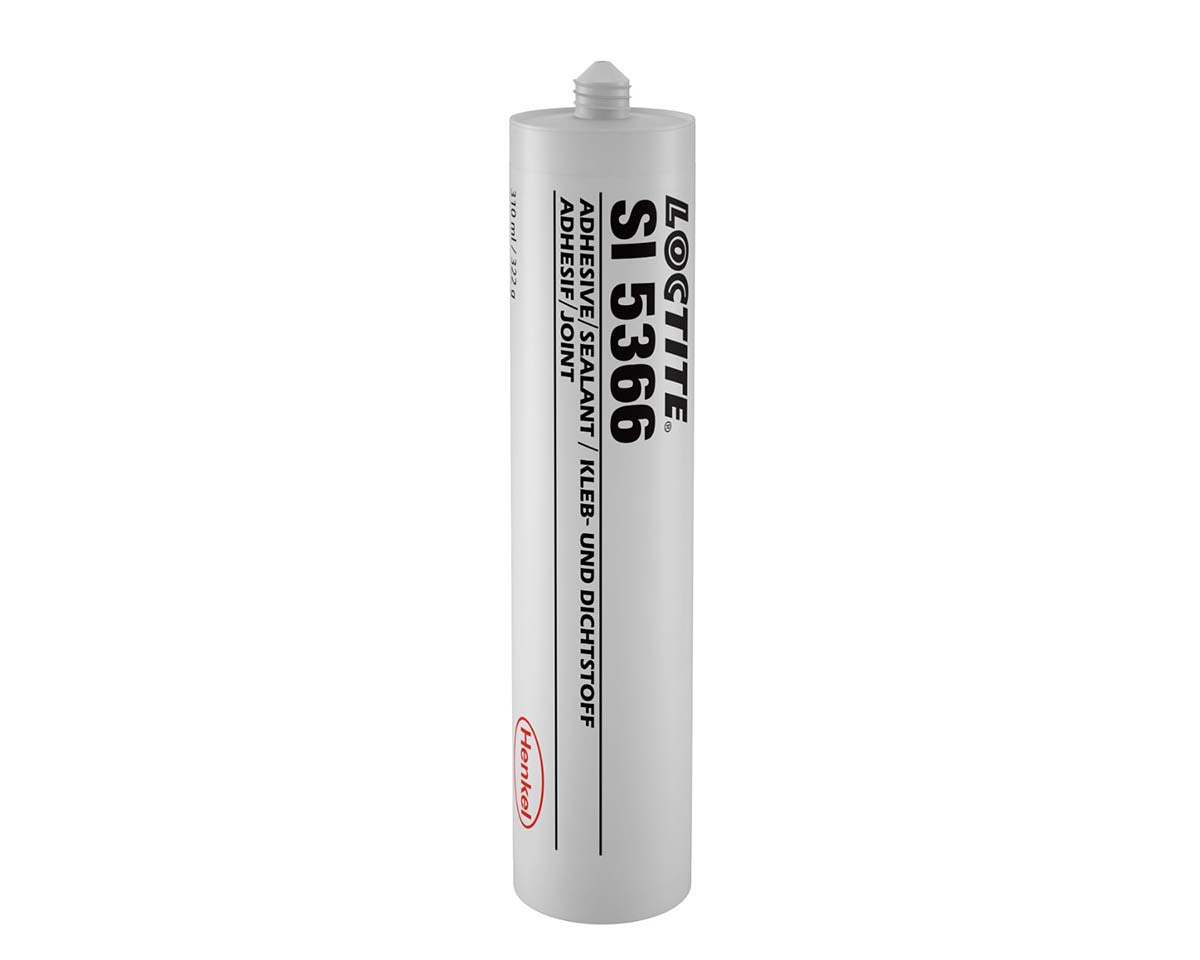

Loctite Loctite 5366 Transparent Sealant Paste 310 ml Cartridge
- RS Stock No.:
- 2585941
- Mfr. Prt No.:
- 2063269
- Brand:
- Loctite
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 2585941 |
| Product description | Loctite Loctite 5366 Transparent Sealant Paste 310 ml Cartridge |
| Manufacturer / Brand | Loctite |
| Manufacturer part number | 2063269 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2585941 |
| Product description | Loctite Loctite 5366 Transparent Sealant Paste 310 ml Cartridge |
| Manufacturer / Brand | Loctite |
| Manufacturer part number | 2063269 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 9, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: IT
Product Details
Loctite 5366 Silicone Sealants
Loctite 5366 is a transparent silicone sealant that has been designed for your sealing and bonding needs. The one part acetoxy sealant is an ideal choice when you want to bond and protect your components that are subjected to vibration or some movement.
Features and Benefits
No mixing required
Stable under normal conditions of use and storage
Bonds and protects
Use up to 250°C
Flexible
High temperature resistance
Typical Applications
Use to join glass, metals, ceramics or plastics.
Also use the sealant for sealing ovens, water heaters, to give protection of electrical boxes and many other applications.
Specifications
| Attribute | Value |
| Brand | Loctite |
| Colour | Transparent |
| Sealant Type | Silicone Sealant |
| Application | Bonding |
| Package Size | 310 ml |
| Package Type | Cartridge |
| Minimum Operating Temperature | -60 °C |
| Food Processing Safe | No |
| Maximum Operating Temperature | +250 °C |
| Chemical Type | Acetoxy |
| Physical Properties | High Elongation |
| Trade Name | Loctite 5366 |
| Cure Time | 5 min |
| Product Form | Paste |
| Odour | Acetic Acid |
| Specific Gravity | 1.04 |
| Dielectric Strength | 2.8 |
| Elongation | 530 |
| Tensile Strength | 2.5 |
| Operating Temperature Range | -60 → +250 °C |
| Viscosity Measurement | 25 <arrow/> 55 g/min |
| Chemical Composition | Silicone |
| Hardness | 25 Shore A |
