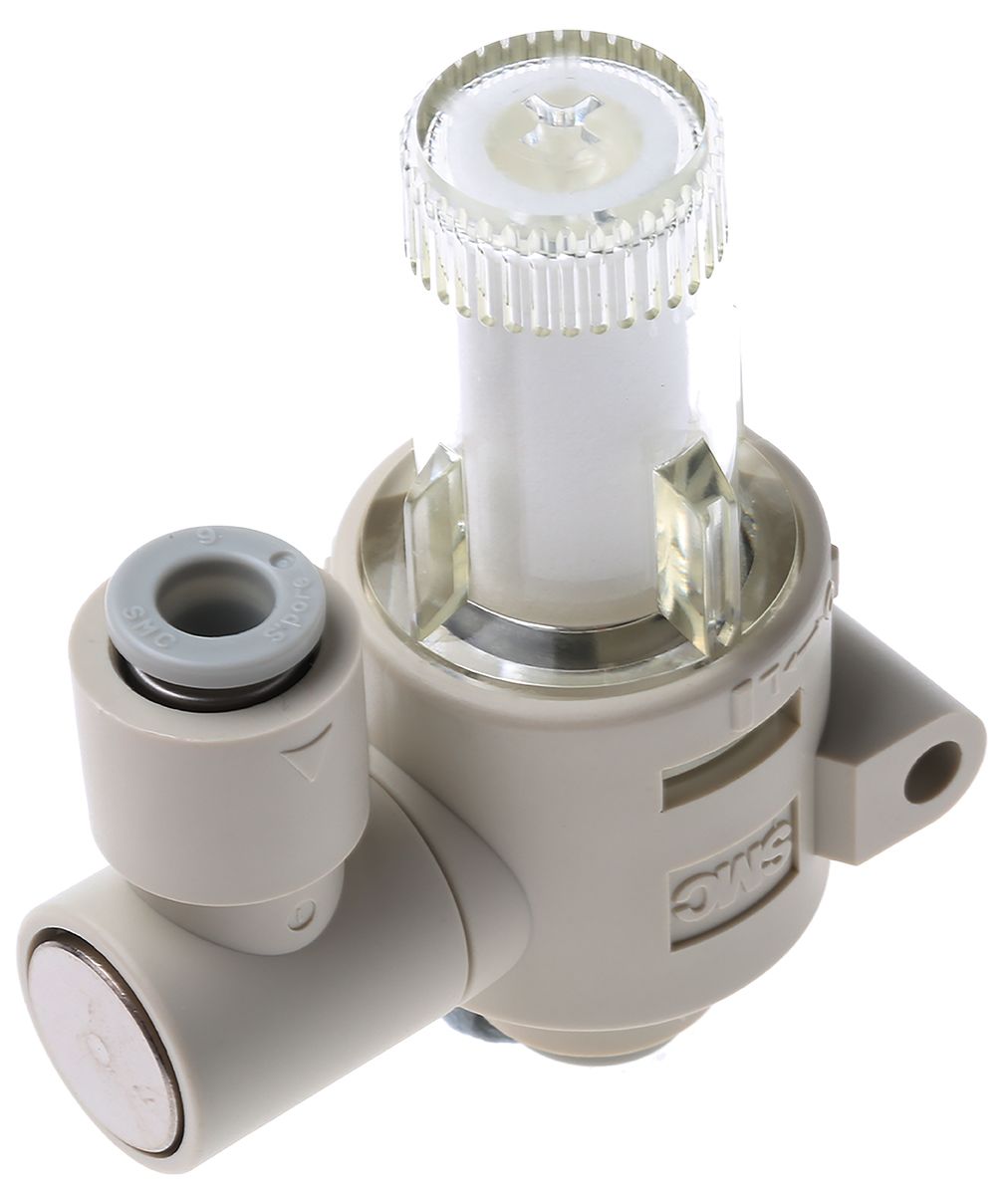

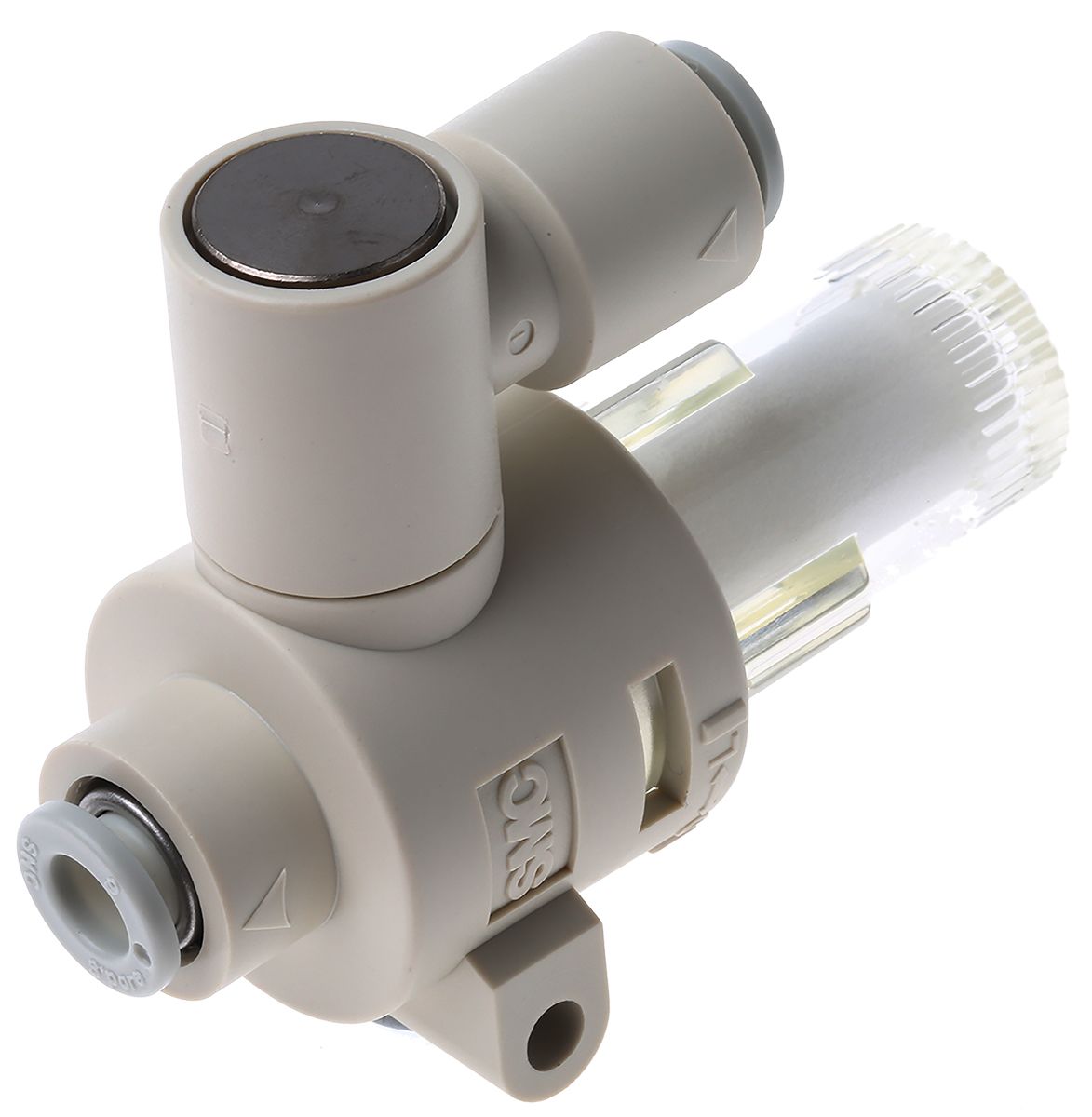

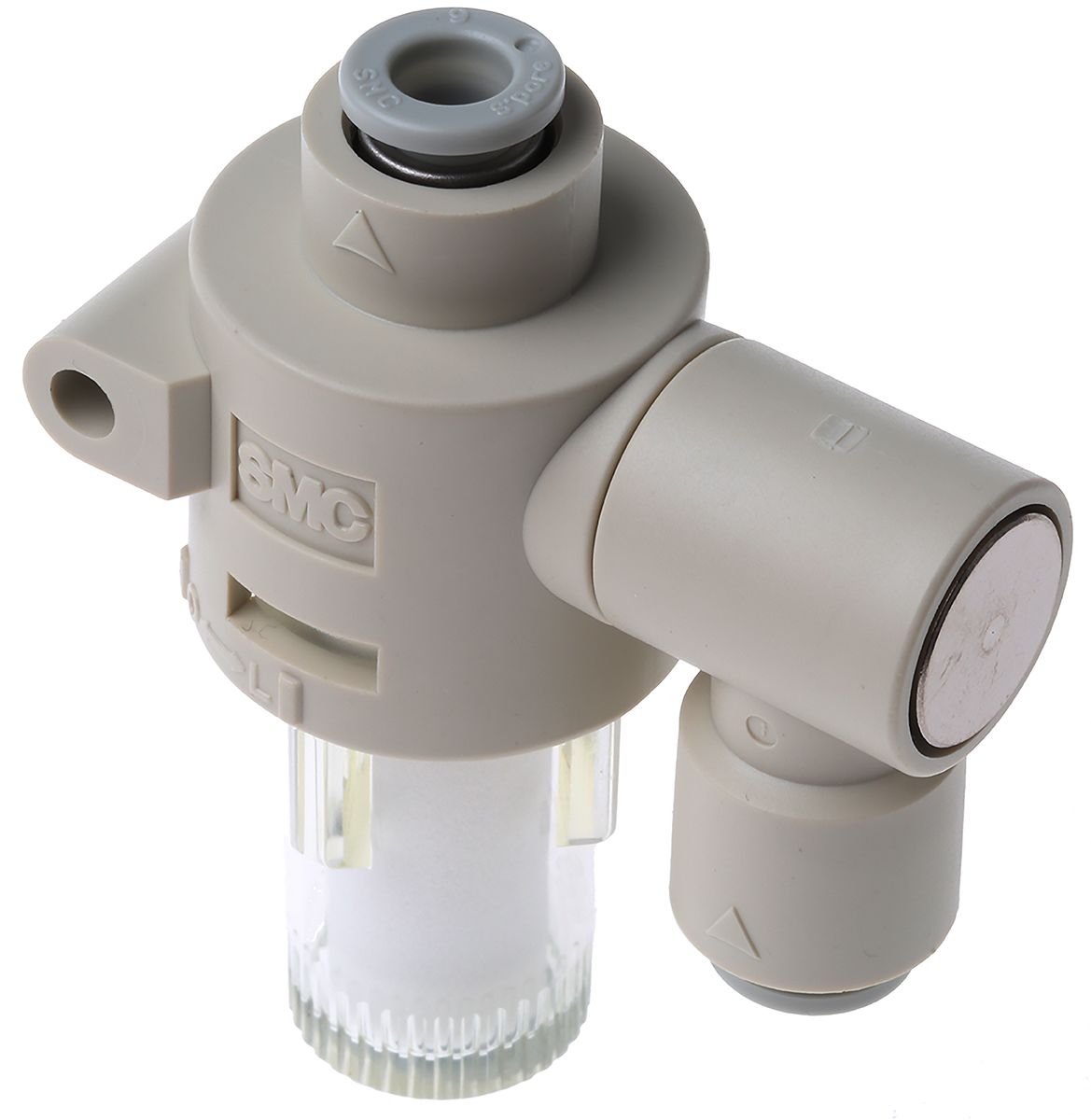

SMC Vacuum Filter – ZFB Series, 30μm
- RS Stock No.:
- 2495898
- Mfr. Prt No.:
- ZFB200-06
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2495898 |
| Product description | SMC Vacuum Filter - ZFB Series, 30μm |
| Manufacturer / Brand | SMC |
| Manufacturer part number | ZFB200-06 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Vacuum Filter - Push-In Type
Push in fittings
Tubing can be installed through 360°
Simple element change
Specifications
| Attribute | Value |
| Brand | SMC |
| Typical Flow Rate | 50 L/min |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +60 °C |
| Manufacturer Series | ZFB |
| Maximum Operating Pressure | 0.5 MPa |
| Minimum Operating Pressure | -100 kPa |
| Filtration Size | 30 µm |
