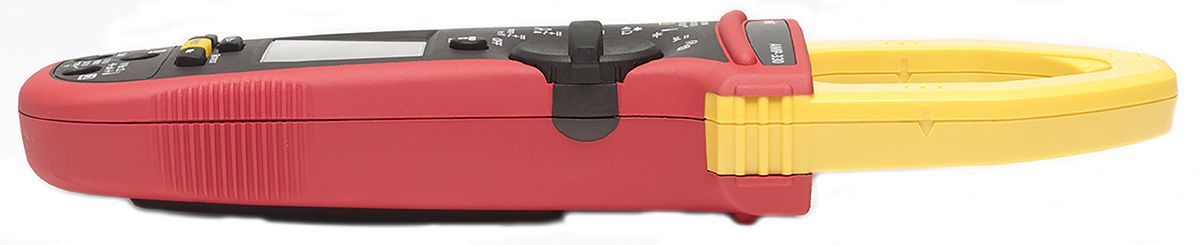

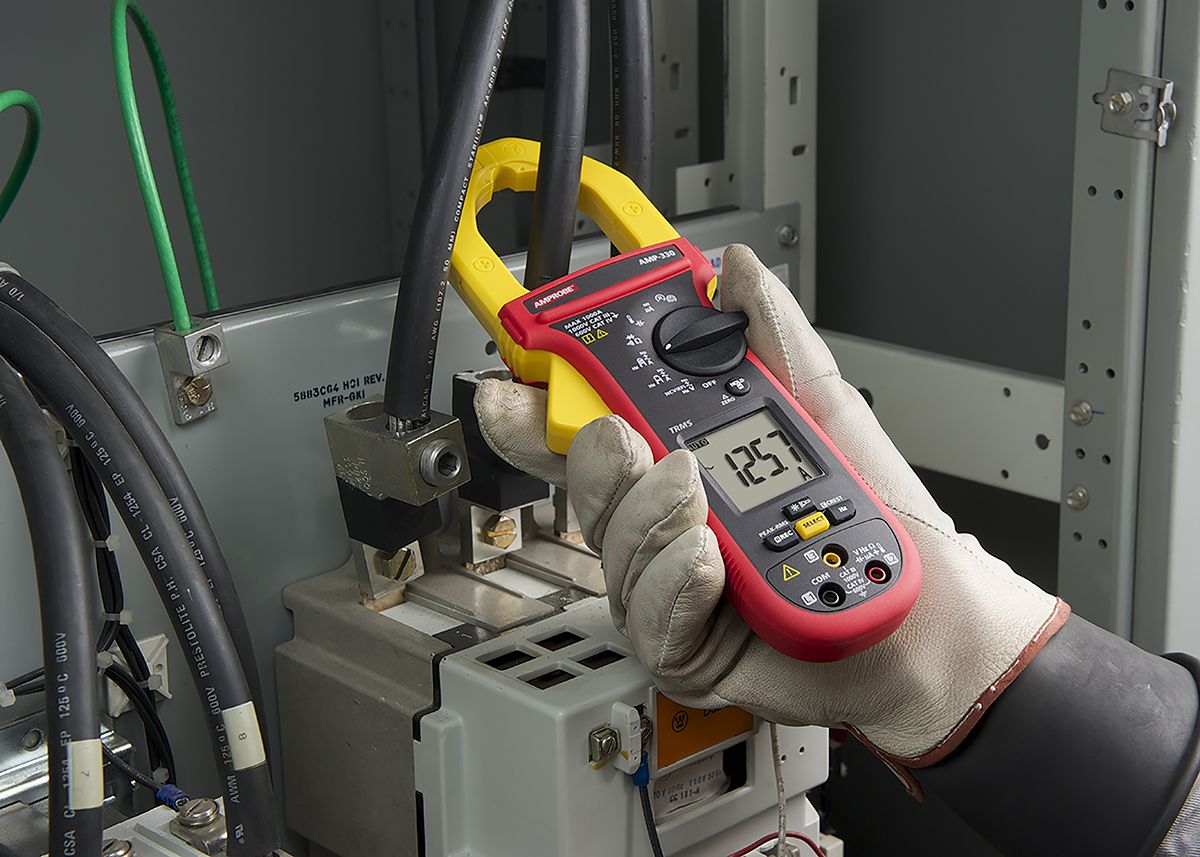

Beha-Amprobe AMP 330 AC/DC Clamp Meter, 1kA dc, Max Current 1kA ac CAT III 1000 V, CAT IV 600 V
- RS Stock No.:
- 8739737
- Mfr. Prt No.:
- AMP-330-EUR
- Brand:
- Beha-Amprobe
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 8739737 |
| Product description | Beha-Amprobe AMP 330 AC/DC Clamp Meter, 1kA dc, Max Current 1kA ac CAT III 1000 V, CAT IV 600 V |
| Manufacturer / Brand | Beha-Amprobe |
| Manufacturer part number | AMP-330-EUR |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 5, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details
Specifications
| Attribute | Value |
| Brand | Beha-Amprobe |
| Absolute Maximum AC Current Measurement | 1 kA ac |
| Absolute Maximum DC Current Measurement | 1 kA dc |
| Absolute Maximum AC Voltage Measurement | 1000 V ac |
| Absolute Maximum DC Voltage Measurement | 1000 V dc |
| Absolute Maximum Resistance Measurement | 60 kΩ |
| Model Number | AMP 330 |
| Best DC Current Accuracy | ±(1.8% rdg + 5dgts) |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | ±(1.8% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(0.8% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.8% rdg + 5dgts) |
| Display Type | LCD |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Battery Type | AA |
| Safety Category Level | CAT III, CAT IV |
| Best Temperature Measurement Accuracy | ±1 % |
| Jaw Capacity Busbars | 51 mm |
| Non-Contact Voltage Detector | Yes |
| Width | 94 mm |
| Length | 258 mm |
| Power Source | Battery |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature |
| Dimensions | 258 x 94 x 44 mm |
| True RMS | Yes |
| Minimum Operating Temperature | -10 °C |
| Height | 44 mm |
| Maximum Conductor Size | 51 mm |
| Weight | 420 g |
| Safety Category Voltage | 600 V, 1000 V |
| Absolute Maximum Temperature Measurement | +400 °C |
| Best Resistance Measurement Accuracy | ±1 % + 5LSD |
| Maximum Operating Temperature | +50 °C |
