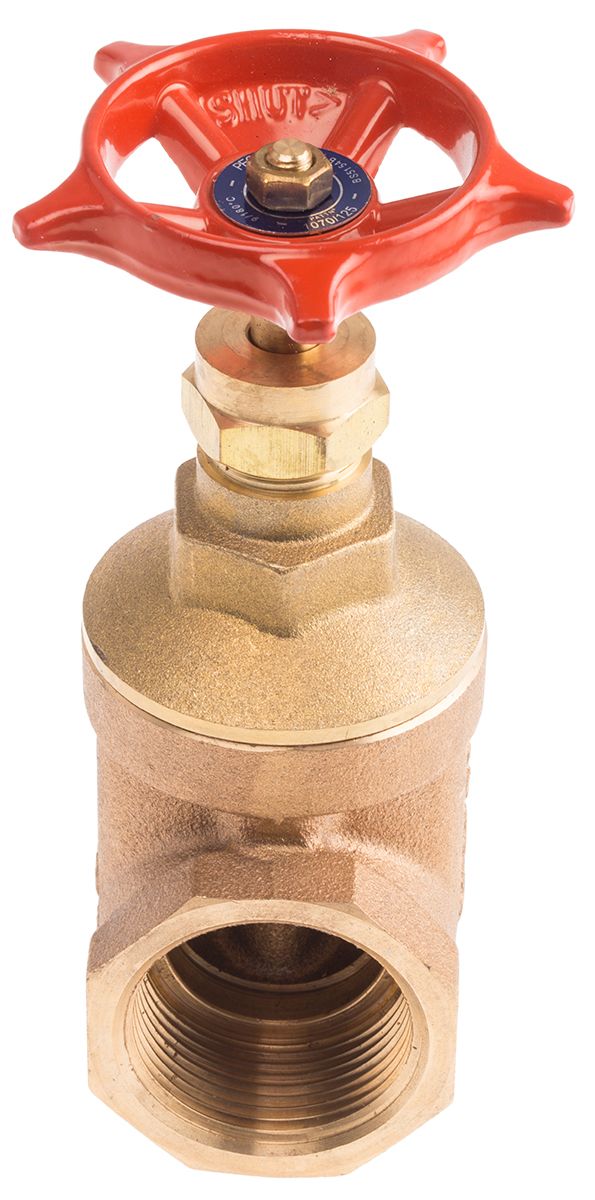

RS PRO Gate Valve, 1-1/4in
- RS Stock No.:
- 5115078
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 5115078 |
| Product description | RS PRO Gate Valve, 1-1/4in |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Bronze Gate Valves PN20 Series B
To BS5154, with BS21 taper thread
Non-rising stem
Threaded bronze bonnet
One-piece wedge
Bronze trim
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Handle Height from Center | 125 mm |
| Maximum Working Pressure | 20 bar |
| Connection Size | 1-1/4 in |
| Thread Standard or Connection Type | BSPT Female |
| Body Material | Bronze |
| Connection | 1-1/4 in BSPT |
