WJ Furse, ESP Cat-6 Surge Suppressor Unit 5 V Maximum Voltage Rating 1kA Maximum Surge Current Cat-6 Surge Protector
- RS Stock No.:
- 7886769
- Mfr. Prt No.:
- 7TCA085400R0023 ESP CAT-6
- Brand:
- WJ Furse
Technical Reference
- ABB IET Wiring Regulations BS 7671 18TH Edition
- Choosing the Correct Furse ESP Lightning Barrier for your Application
- ESP Cat-5 & Cat-6 Series Data Sheet
- Protection for Data and Signal Lines in Intrinsically Safe Circuits Application Note
- Protection of Photovoltaic (PV) Systems Application Note
- Protection of Wind Turbines Application Note
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 7886769 |
| Product description | WJ Furse, ESP Cat-6 Surge Suppressor Unit 5 V Maximum Voltage Rating 1kA Maximum Surge Current Cat-6 Surge Protector |
| Manufacturer / Brand | WJ Furse |
| Manufacturer part number | 7TCA085400R0023 ESP CAT-6 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7886769 |
| Product description | WJ Furse, ESP Cat-6 Surge Suppressor Unit 5 V Maximum Voltage Rating 1kA Maximum Surge Current Cat-6 Surge Protector |
| Manufacturer / Brand | WJ Furse |
| Manufacturer part number | 7TCA085400R0023 ESP CAT-6 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Transient Voltage Suppressors (Data Lines)

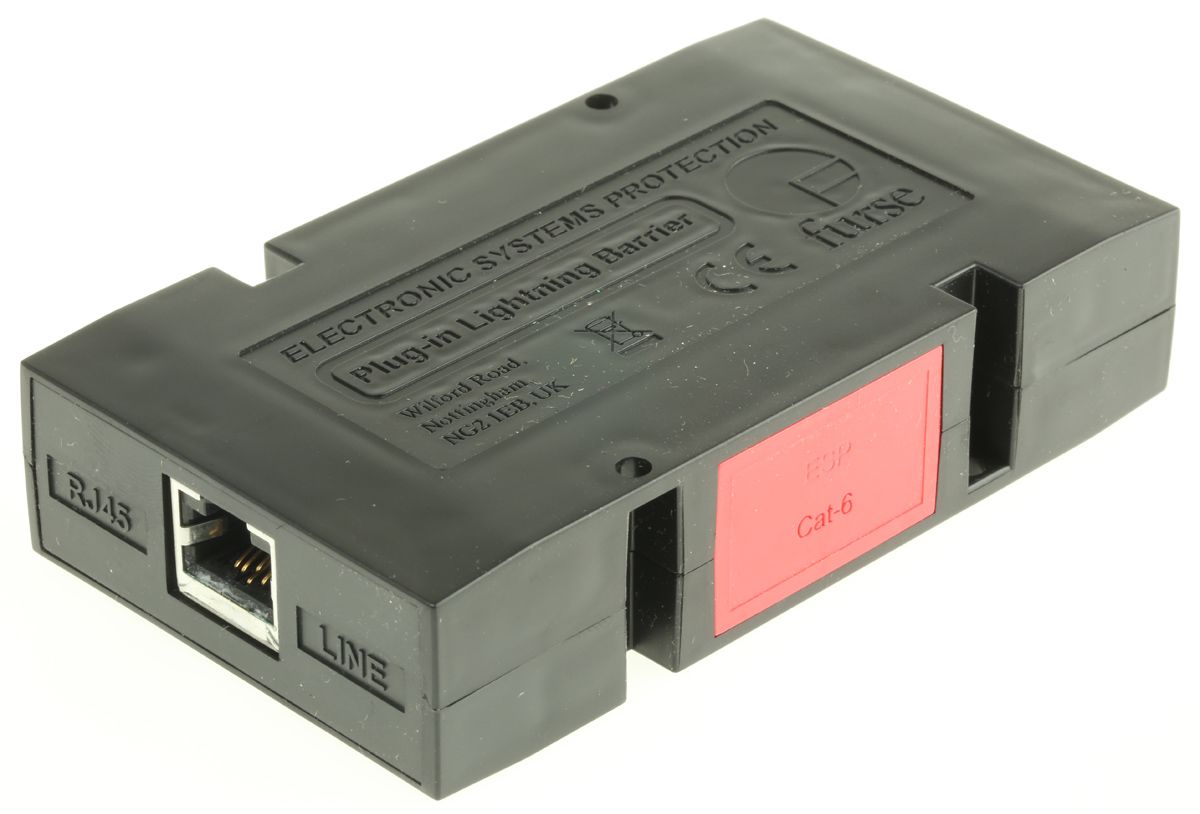

WJ Furse Enhanced ethernet systems surge protector

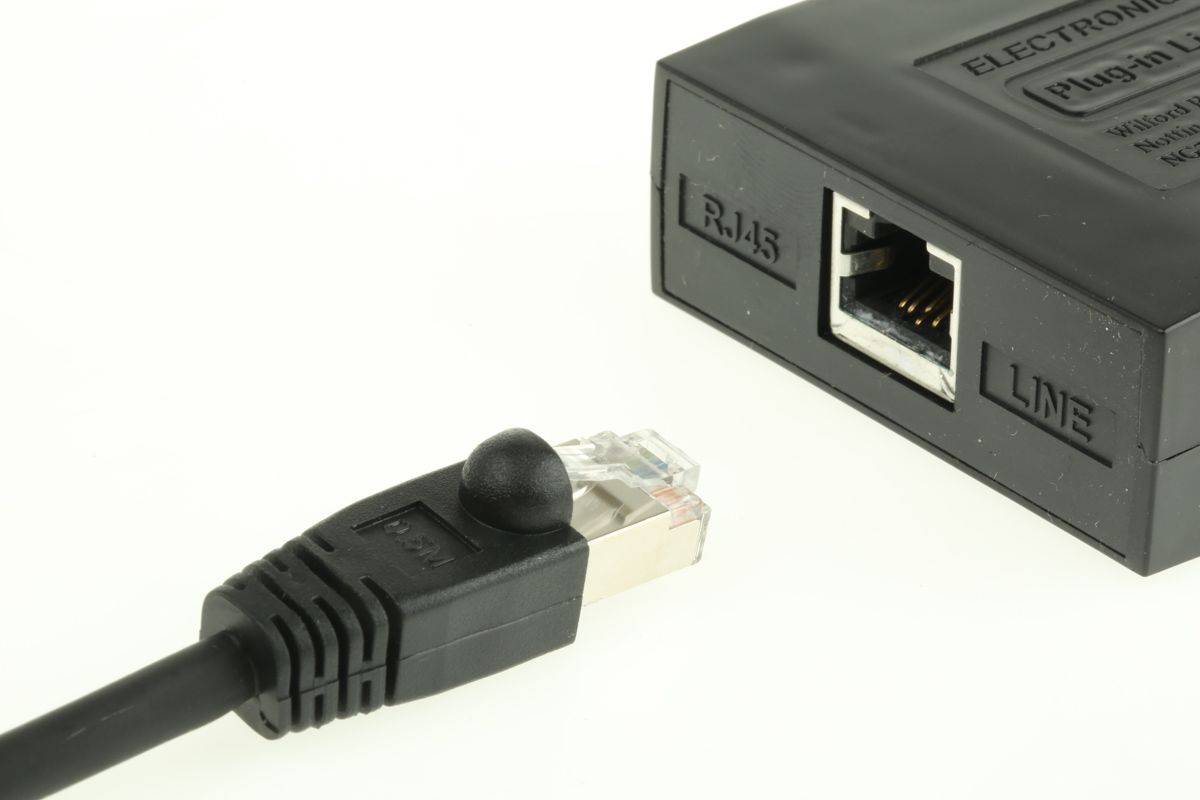

Enhanced surge protector for use on twisted pair Ethernet systems with RJ45 connections.
Suitable for shielded or unshielded twisted pair
Very low let-through voltage between all lines
No system impairment or start-up signal degradation
Removable DIN rail clip included, or can be flat mounted
Specifications
| Attribute | Value |
| Brand | WJ Furse |
| Suppressor Type | Cat-6 Surge Protector |
| Maximum Voltage Rating | 5 V |
| Mounting Type | DIN Rail |
| Maximum Surge Current | 1 kA, 10 kA |
| Series | ESP Cat-6 |
| Length | 106 mm |
| Depth | 24 mm |
| Height | 60 mm |
| Dimensions | 106 x 24 x 60 mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +80 °C |
