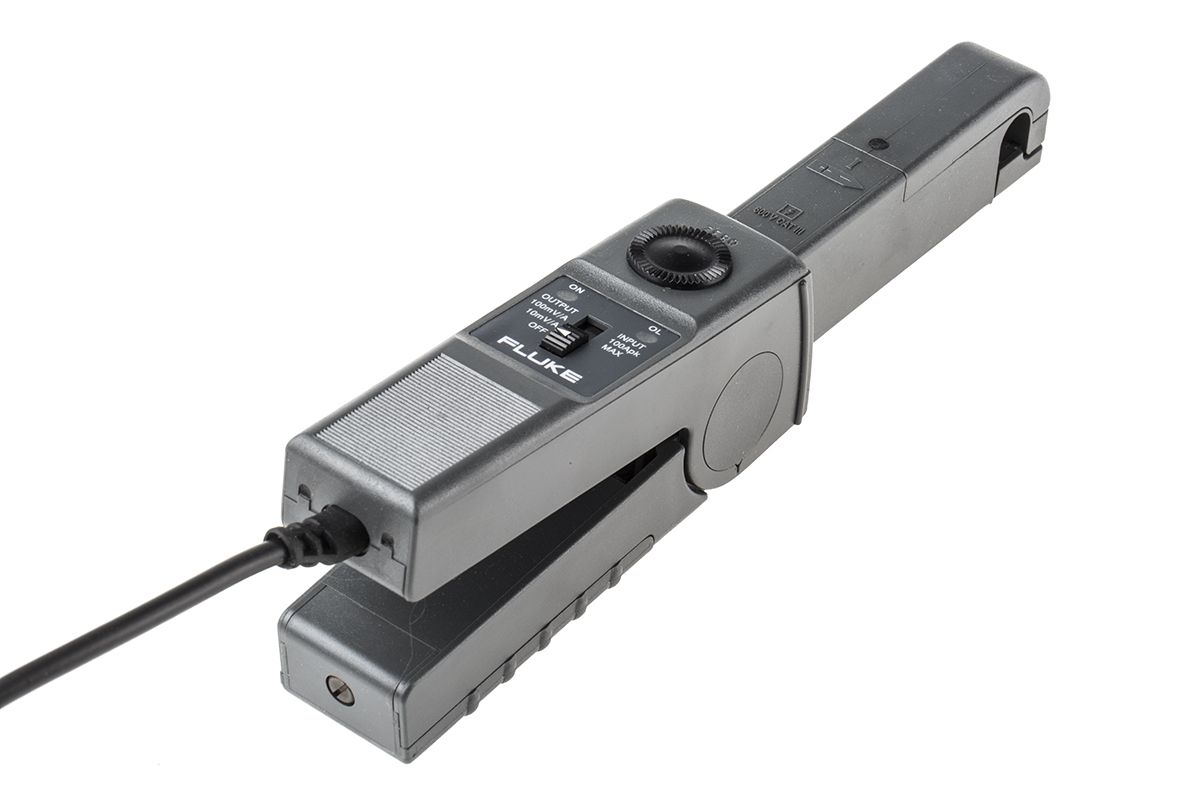

Fluke 80 AC-DC Current Probe, 100A dc, Max Current 100A ac CAT II 600 V, CAT III 300 V
- RS Stock No.:
- 1884130
- Mfr. Prt No.:
- 80I-110S
- Brand:
- Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 1884130 |
| Product description | Fluke 80 AC-DC Current Probe, 100A dc, Max Current 100A ac CAT II 600 V, CAT III 300 V |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | 80I-110S |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Best AC Current Accuracy | ±3% +50 mA |
| Power Source | Battery |
| Width | 67 mm |
| Length | 231 mm |
| Dimensions | 231 x 67 x 36 mm |
| Functions Measured | AC Current, DC Current |
| Model Number | 80 |
| Minimum Operating Temperature | 0 °C |
| Height | 36 mm |
| Maximum Conductor Size | 11.8 mm |
| Battery Life | 55 h |
| Jaw Capacity Busbars | 12.5 mm |
| Weight | 330 g |
| Safety Category Level | CAT II, CAT III |
| Absolute Maximum DC Current Measurement | 100 A dc |
| Best DC Current Accuracy | ±3% + 50 mA |
| Clamp Meter Type | AC-DC Current Probe |
| Absolute Maximum AC Current Measurement | 100 A ac |
| Safety Category Voltage | 300 V, 600 V |
| Battery Type | 9V |
| Safety Category | CAT II 600 V, CAT III 300 V |
| Maximum Operating Temperature | +50 °C |
