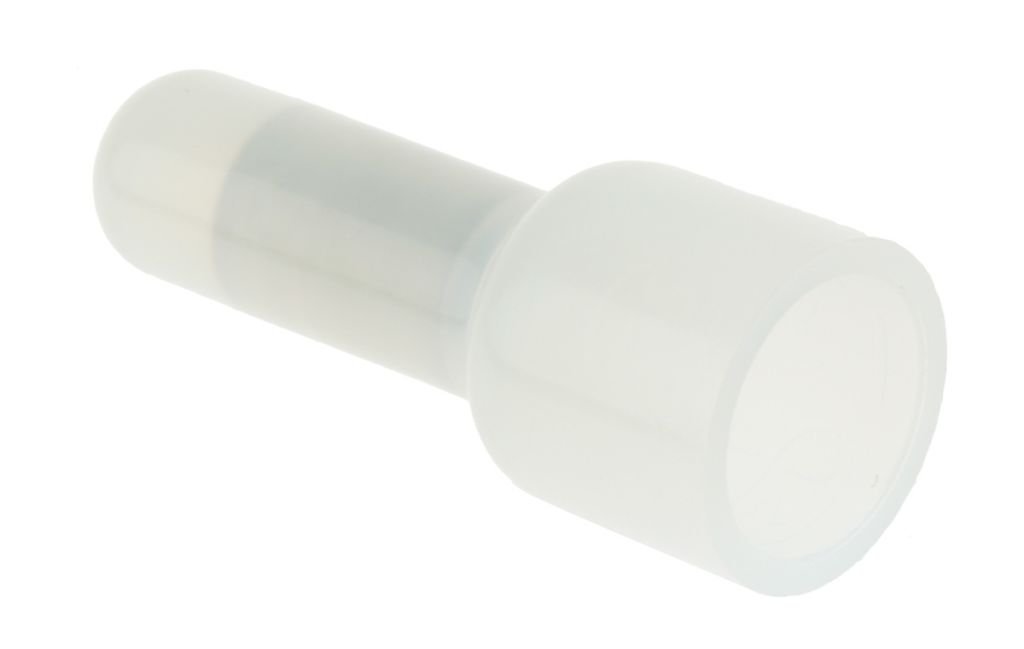

JST, CE Splice Connector, Insulated 0.5 → 1.75 mm², 22 → 16 AWG
- RS Stock No.:
- 8388383
- Mfr. Prt No.:
- CE-1
- Brand:
- JST
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8388383 |
| Product description | JST, CE Splice Connector, Insulated 0.5 → 1.75 mm², 22 → 16 AWG |
| Manufacturer / Brand | JST |
| Manufacturer part number | CE-1 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
JST Insulated Crimp Terminals
JST Insulated Closed End Crimp Splice Terminals
A range of nylon insulated closed end splice terminals suitable for a variety of wires. These insulated closed end splice terminals are available in 2 different styles, please refer to datasheet on our website for details
Specifications
| Attribute | Value |
| Brand | JST |
| Wire Size | 0.5 → 1.75 mm², 22 → 16 AWG |
| Overall Length | 20.8 mm |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Series | CE |
