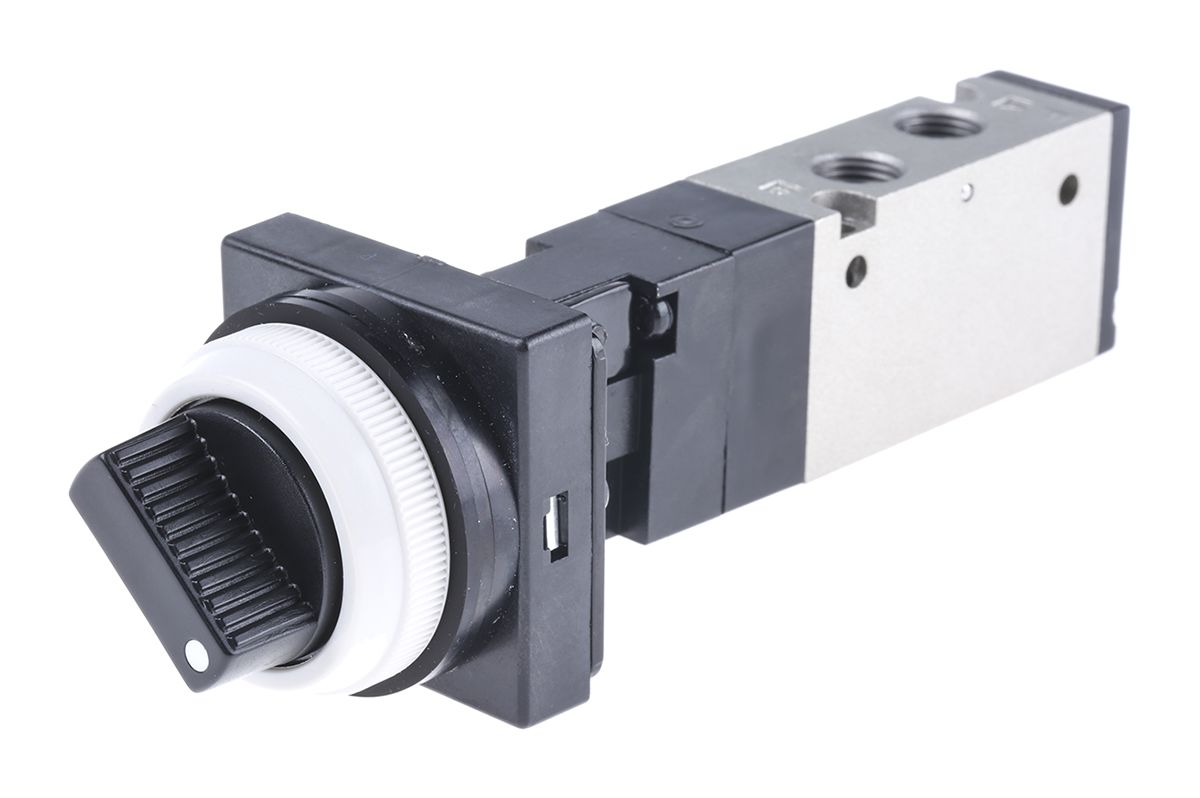

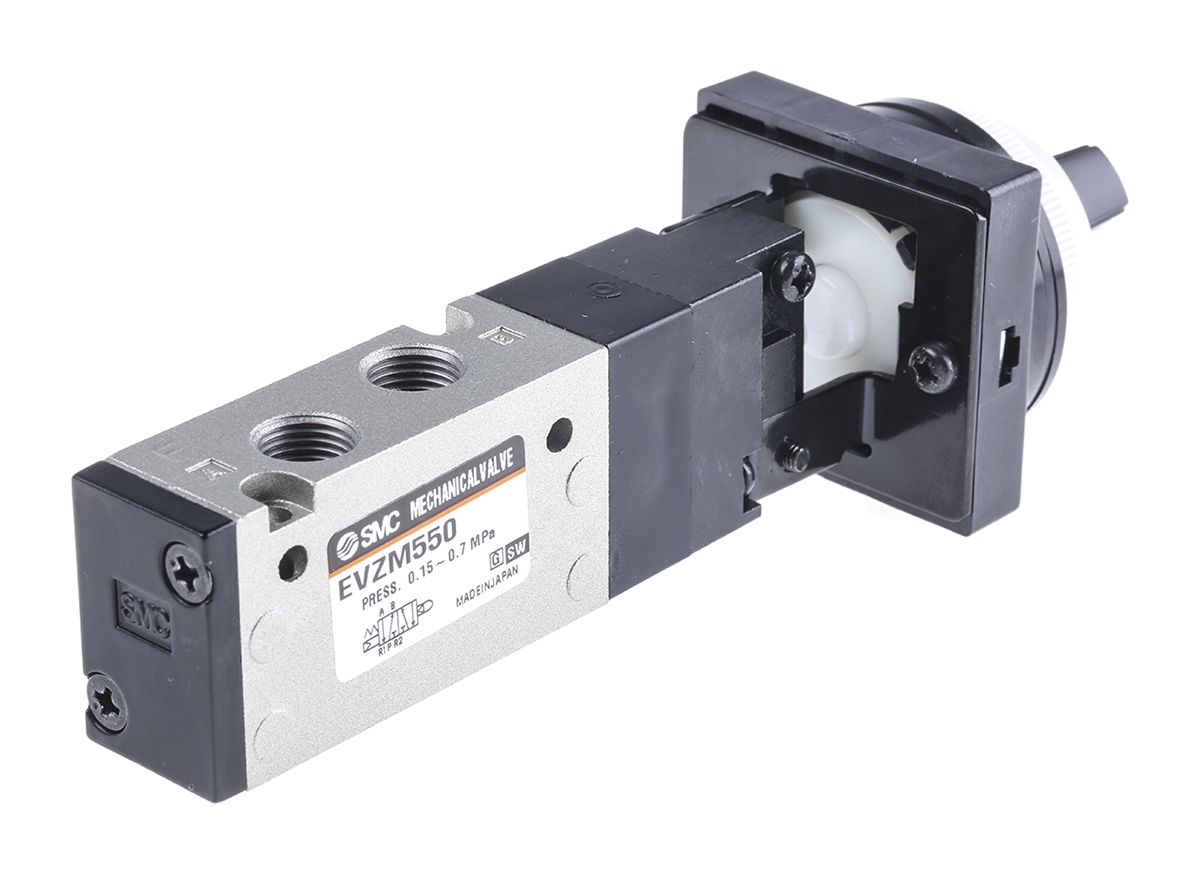

SMC Twist Selector 5/2 Pneumatic Manual Control Valve VZM500 Series
- RS Stock No.:
- 2331047
- Mfr. Prt No.:
- EVZM550-F01-34B
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 2331047 |
| Product description | SMC Twist Selector 5/2 Pneumatic Manual Control Valve VZM500 Series |
| Manufacturer / Brand | SMC |
| Manufacturer part number | EVZM550-F01-34B |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 23, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
5//2 N/C valves with rotary button
Specifications
| Attribute | Value |
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Minimum Operating Temperature | -5 °C |
| Maximum Flow Rate | 589 NL/min |
| Maximum Operating Temperature | +60 °C |
| Control Mechanism | Twist Selector |
| Manufacturer Series | VZM500 |
| Thread Size | 1/8 in |
| Connection Port Thread | G 1/8 |
| Maximum Operating Pressure | 0.7 MPa |
| Thread Standard | G |
| Control Button/Switch Colour | Black |
| Number of Ports | 5/2 |
| Function | 5/2 |
