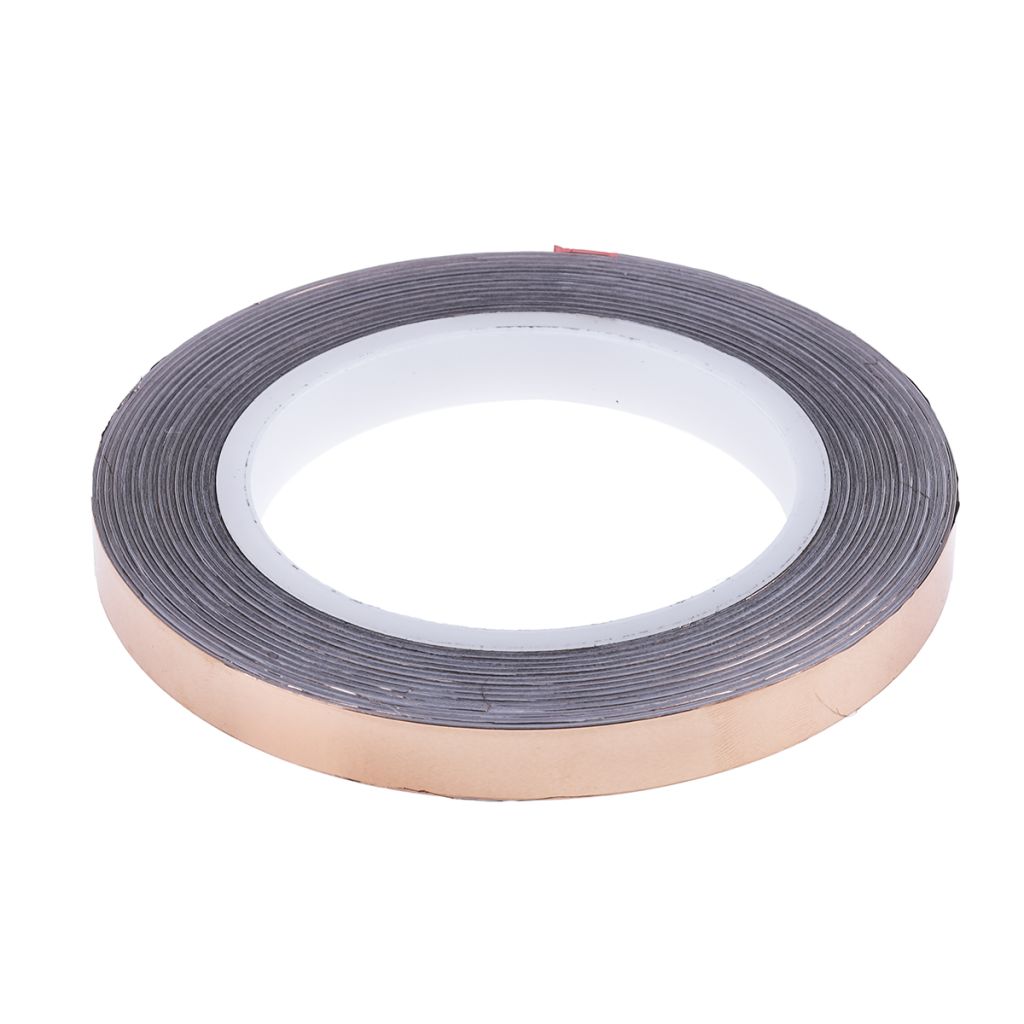

Hi-Bond HB 720A Conductive Metallic Tape, 12mm x 33m
- RS Stock No.:
- 8326316
- Mfr. Prt No.:
- HB 720A 12mm x 33m
- Brand:
- Hi-Bond
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 8326316 |
| Product description | Hi-Bond HB 720A Conductive Metallic Tape, 12mm x 33m |
| Manufacturer / Brand | Hi-Bond |
| Manufacturer part number | HB 720A 12mm x 33m |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: KR
Product Details
Specifications
| Attribute | Value |
| Brand | Hi-Bond |
| Tape Type | Copper Tape |
| Total Thickness | 0.07 mm |
| Foil Thickness | 0.035 mm |
| Width | 12 mm |
| Length | 33 m |
| Conductivity | Conductive |
| Adhesion Strength | 2.7 N/cm |
| Adhesive Material | Acrylic |
| Material Plating | None |
| Tensile Strength | 43 N/cm |
| Maximum Temperature Resistance | +130 °C |
| Minimum Temperature Resistance | -30 °C |
| Model Number | HB 720A |
