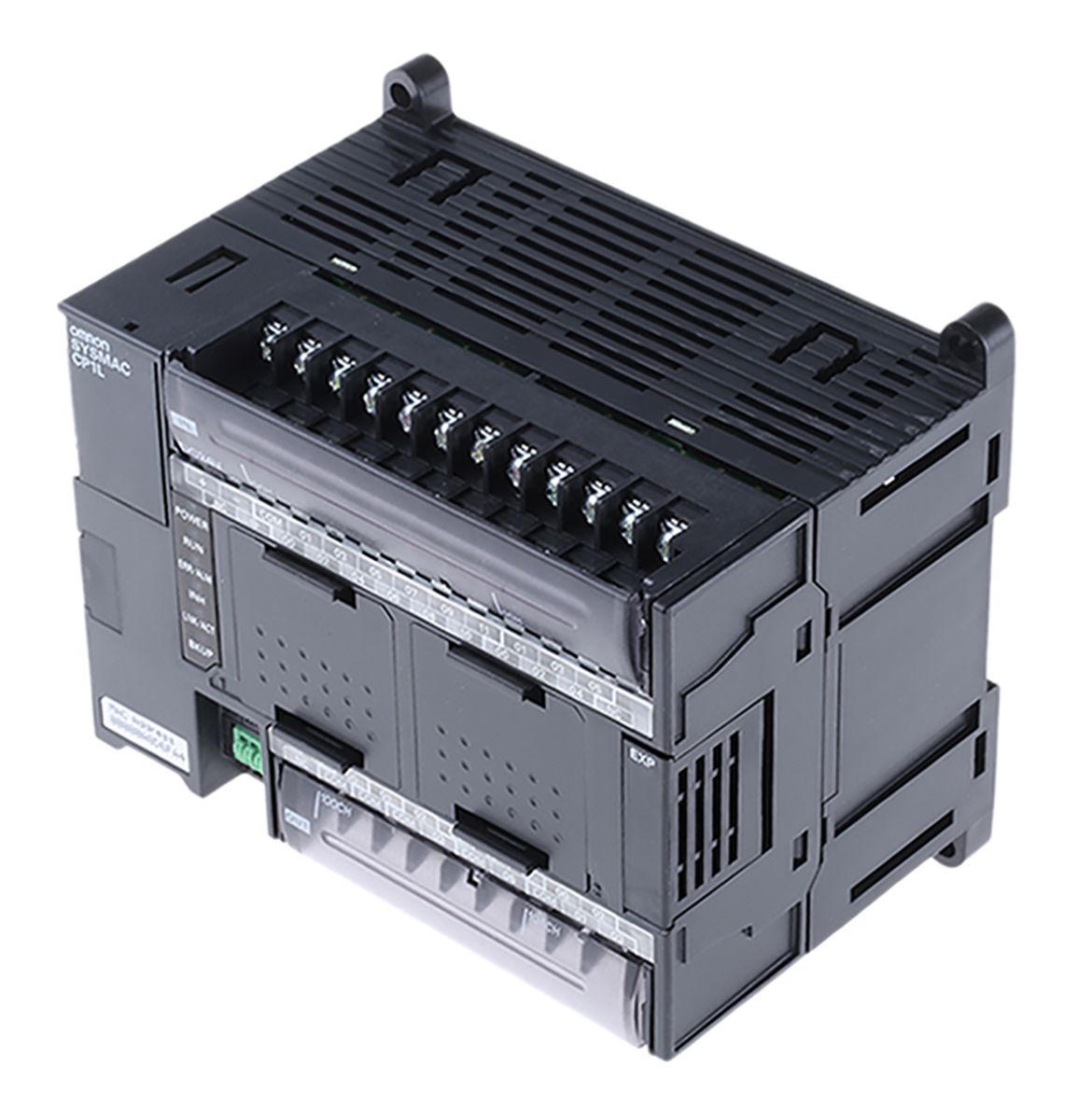

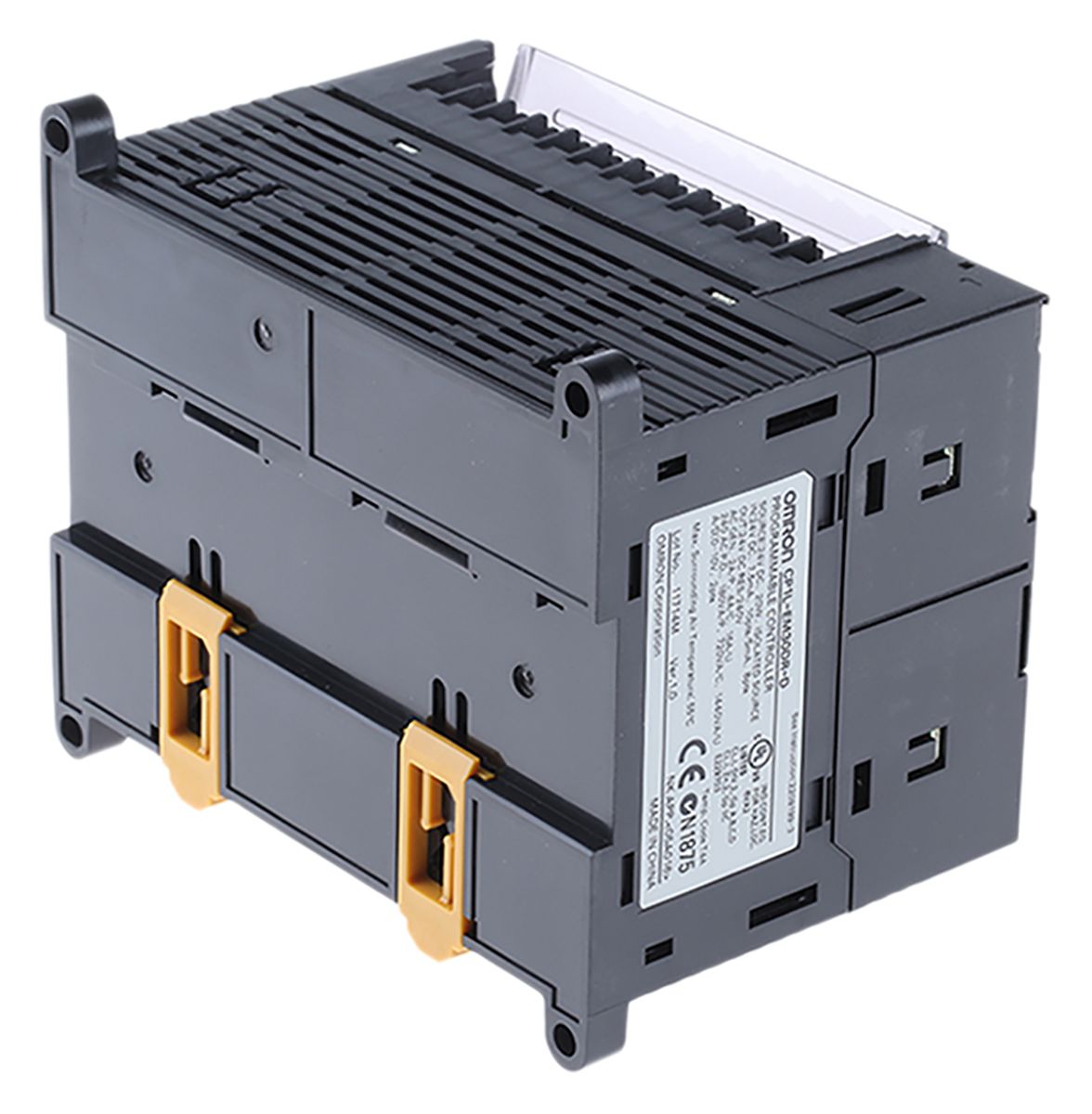

Omron CP1L-EM PLC CPU – 18 Inputs, 12 Outputs, Relay, For Use With CP Series, Ethernet Networking, Computer Interface
- RS Stock No.:
- 8211762
- Mfr. Prt No.:
- CP1L-EM30DR-D
- Brand:
- Omron
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 8211762 |
| Product description | Omron CP1L-EM PLC CPU - 18 Inputs, 12 Outputs, Relay, For Use With CP Series, Ethernet Networking, Computer Interface |
| Manufacturer / Brand | Omron |
| Manufacturer part number | CP1L-EM30DR-D |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Specifications
| Attribute | Value |
| Brand | Omron |
| Memory | 10000 Steps |
| Programming Interface | Computer |
| Output Type | Relay |
| Minimum Operating Temperature | 0 °C |
| Voltage Category | 20.4 → 26.4 V dc |
| Network Type | Ethernet |
| Number of Outputs | 12 |
| Manufacturer Series | CP1L-EM |
| Battery Backup | Yes |
| For Use With | CP Series |
| Dimensions | 130 x 90 x 85 mm |
| Communication Port Type | RS232 |
| Display Included | Yes |
| Program Capacity | 10000 Steps |
| Depth | 85 mm |
| Length | 130 mm |
| Width | 90 mm |
| Mounting Type | DIN Rail |
| Programming Language Used | Ladder Diagram |
| Number of Communication Ports | 1 |
| Output Current | 10 mA |
| Input Type | DC |
| Number of Inputs | 18 |
| Maximum Operating Temperature | +55 °C |
