Facom 180° Metric Bevel Depth Gauge Protractor, 170 mm Stainless Steel Blade
- RS Stock No.:
- 7211569
- Mfr. Prt No.:
- 1885.00
- Brand:
- Facom
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7211569 |
| Product description | Facom 180° Metric Bevel Depth Gauge Protractor, 170 mm Stainless Steel Blade |
| Manufacturer / Brand | Facom |
| Manufacturer part number | 1885.00 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details

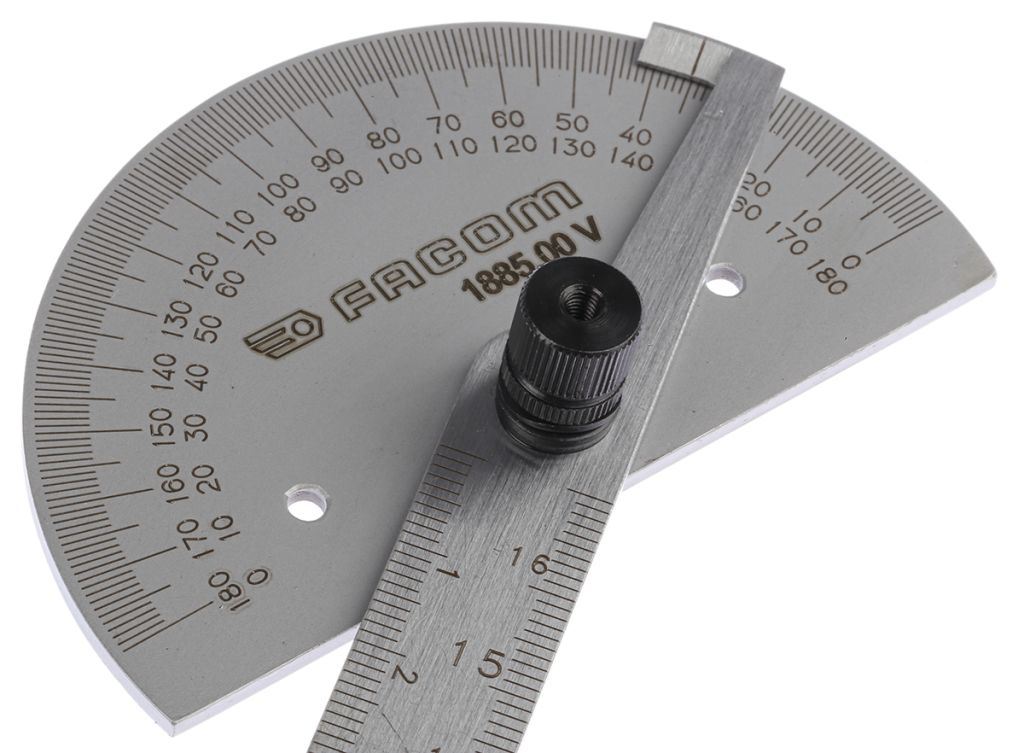

Facom Engineer’s Protractor
Introducing the Facom protractor, designed especially for depth gauge measurement. This engineer’s protractor features a hardened stainless-steel design for ultimate durability so that it doesn’t bend and flex easily and allows for accurate measurement without any errors and is graduated from 0 to 180° in both directions.
Features and Benefits:
• This protractor is made from hardened stainless steel for durability and accuracy when measuring
• The base of the sector divided in mm and the diameter of the sector is 85 mm
• It is graduated from 0 to 180 degrees in both directions, allowing greater flexibility for measurement

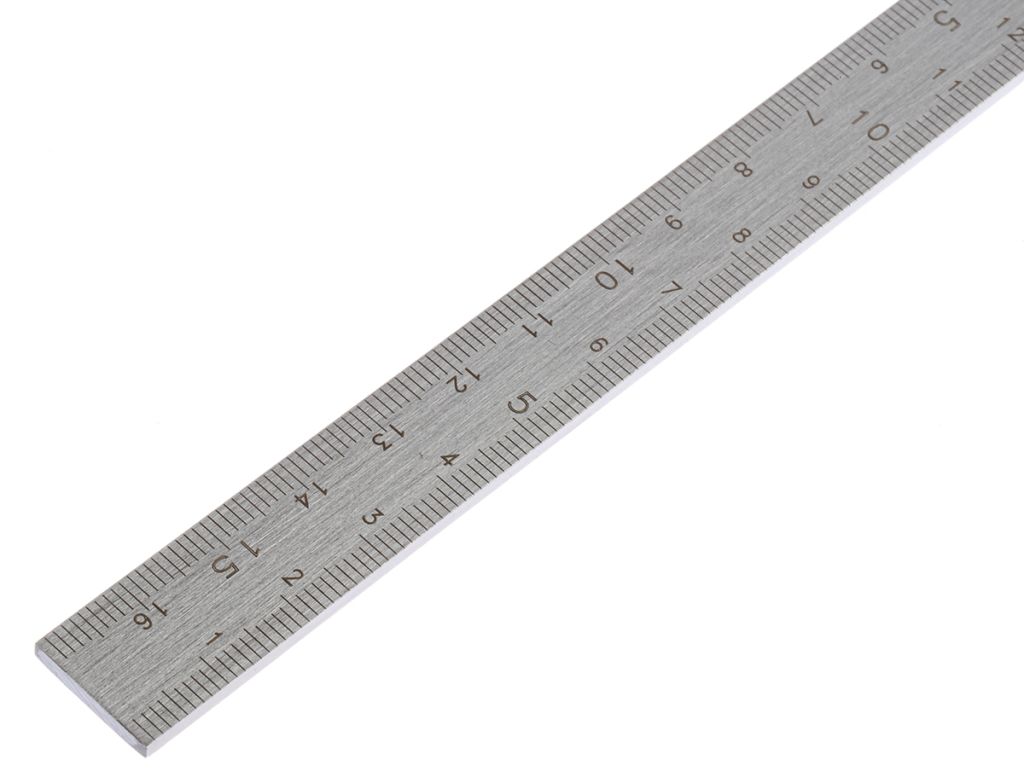

• The ruler length is 170 mm and the whole protractor weights 150 g
Applications:
A protractor is a mathematical instrument used for measuring angles in degrees such as the angles of a triangle or a hexagon. They are used for a variety of mechanical and engineering-related applications. One common use is for lessons in schools where plastic protractors are commonly used for mathematics and geometry. Some protractors are simple semicircles, while more advanced protractors, such as the bevel protractor, have one or two swinging arms, which can be used to help measure the angle. These are precision instruments and are incredibly valuable to the people using them.
Some common applications for protractors are:
• Maths
• Drafting
• Architecture
• Engineering
• Mechanics
Specifications
| Attribute | Value |
| Brand | Facom |
| Blade Material | Stainless Steel |
| Blade Length | 170 mm |
| Angle | 180 ° |
| Imperial or Metric | Metric |
| Bevel | Yes |
