RS Pro

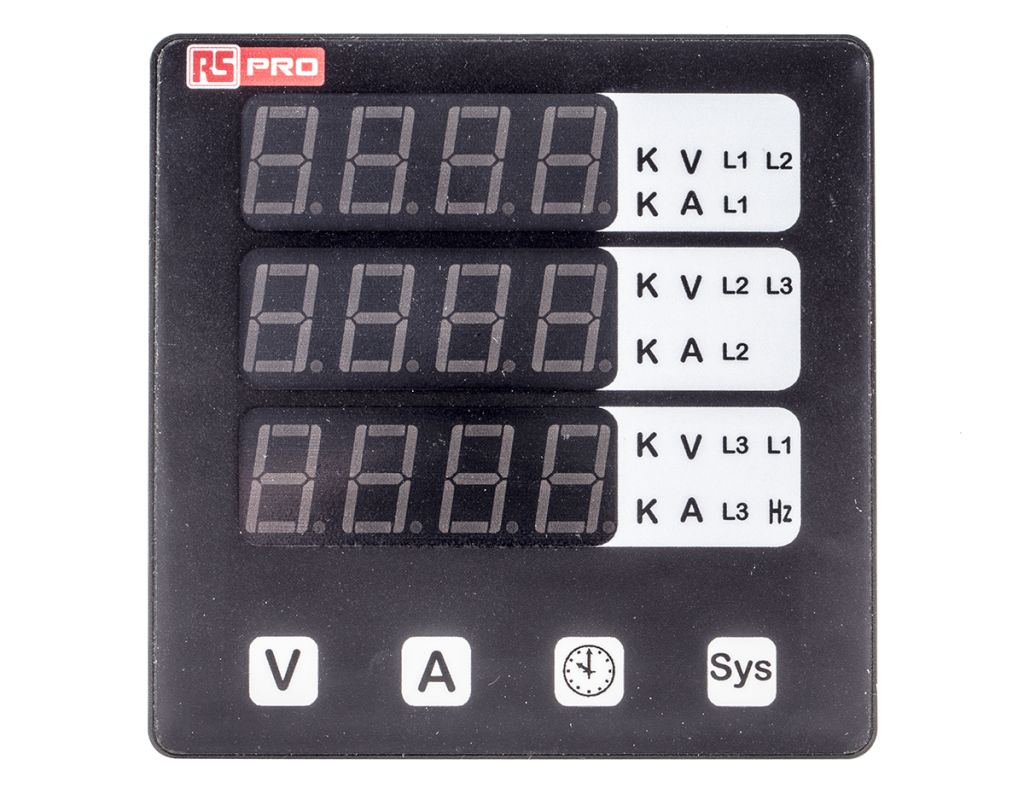

4 Digit, 3 Line/1 Line Digital Multi-function Meters
RS Pro digital panel meters measure important electrical parameters in 3 phase 4-wire and 3 phase three wire network and replaces the need for multiple analogue panel meters. It measures electrical parameters such as AC voltage, AC current, Frequency and more.
Features and Benefits
1 line or 3 line (depending on model), 4-digit ultra-bright LED display
Fast and easy installation on panel with self-clicking
True RMS measurement
Limit switch (optional on 3 line display only)
On-site programmable CT/PT ratios
User selectable CT secondary 1A/5A
User selectable PT secondary from 100 VLL to 500 VLL
User selectable 3 ph 3 wire/3 ph 3 wire/ single phase network
Wide auxiliary power supply which can accept any input between 40 V-300 V ac/dc or 12 V-48 V dc
Storage of MIN/MAX values
Measurement and display of RPM, run hours, on hours and No. of interrupts
Load manager for indication percentage of system current (available in single-line model only)
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Number of Digits | 4 |
| Cutout Width | 92 mm |
| Depth | 62 mm |
| Meter Type | Digital |
| Display Type | LED |
| Minimum Temperature | -20 °C |
| Digit Height | 20 mm |
| Maximum Temperature | +70 °C |
| Properties Measured | AC Current, AC Voltage, Frequency, Hour, RPM |
| Approvals | IEC 60529, IEC 61010-1:2001, IEC 61326-1:2005 |
| Cutout Height | 92 mm |
| Series | Alpha 10 |
| Measurement Range | 290 (Phase → Neutral) V ac, 45 → 65 (Frequency) Hz, 5 (Current) A, 500 (Line → Line) V ac |
