RS PRO Digital RCD Tester, RCD Test Type AC, RCD Test Current 10mA
- RS Stock No.:
- 1232240
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1232240 |
| Product description | RS PRO Digital RCD Tester, RCD Test Type AC, RCD Test Current 10mA |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1232240 |
| Product description | RS PRO Digital RCD Tester, RCD Test Type AC, RCD Test Current 10mA |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details

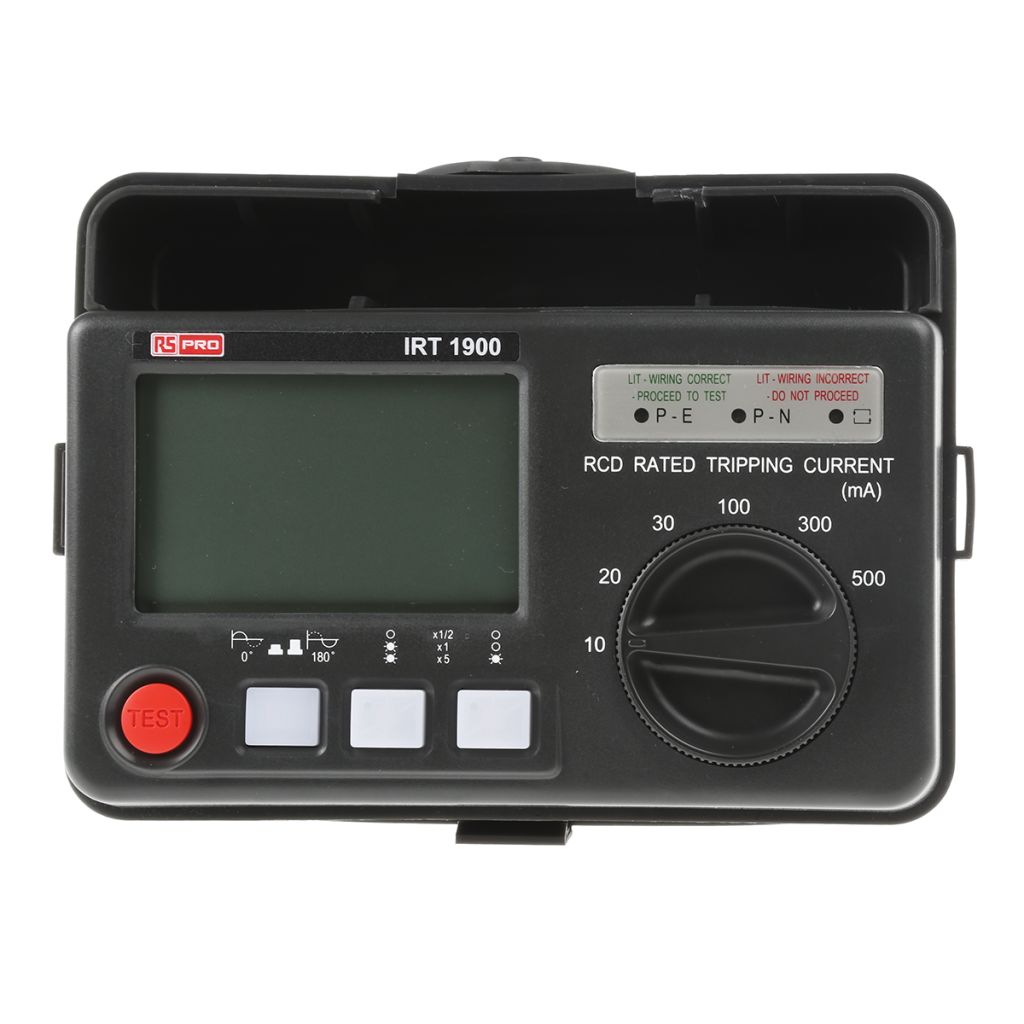

RS PRO IRT1900 Digital RCD Tester, 500 mA Trip
RS PRO IRT1900 is a great value digital RCD (Residual Current Device) tester which incorporates a custom microprocessor for highest accuracy and reliability. Its casing is made from modern plastics for resilience to everyday knock and bangs. This instrument is designed for indoor use and up to a maximum altitude of 2000m.
Residual Current Operated Devices are usually fitted in electrical installations to provide extra protection against electrical shocks and fire. In order to safety check these RCDs, various tests need to be carried out. The RS PRO IRT 1900 tester is a great test equipment device which can perform these checks.
SUPPLIED_WITH : Test lead with IEC connector, neck strap, user man
Features and Benefits:
- Rated Tripping Current 10 / 20 / 30 / 100 / 300 / 500 mA
- 3 LEDs for checking correct wiring status
- Large digital display for easy viewing
- Automatic lock out if test resistor overheats
- 0° and 180° phase angle switch permits quick tests and consistent readings
- Visual indication of reversed phase and neutral wiring at socket
- Digital read out of tripping time
- Resilient case for protection
- Dimensions 180 x 130 x 70 mm
- Weight 800 g approximately
Typical Applications
An RCD tester is a protective device that instantly breaks an electric circuit to prevent series harm from an ongoing electric shock. RCT testers are widely used by electricians for electric maintenance and installation.
FAQs
What is RCD testing?
RCD testing is a test to make sure your RCD will operate quickly should there be an electrical error. An RC is designed to trip or switch off all the power to that circuit. This testing is also known as safety switch testing.
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Power Source | Mains |
| Minimum Operating Temperature | 0 °C |
| Height | 70 mm |
| Width | 130 mm |
| Length | 180 mm |
| Model Number p | IRT1900 |
| Weight | 800 g |
| RCD Test Current | 10 mA, 20 mA, 30 mA, 100 mA, 300 mA, 500 mA |
| Test Equipment Type | Digital RCD Tester |
| RCD Test Type | AC |
| Display Type | LCD |
| Maximum Operating Temperature | +40 °C |
