RS PRO Thickness Gauge, 0mm – 12mm, ±0.1 mm Accuracy, 0.01 mm Resolution, LCD Display
- RS Stock No.:
- 1230918
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1230918 |
| Product description | RS PRO Thickness Gauge, 0mm - 12mm, ±0.1 mm Accuracy, 0.01 mm Resolution, LCD Display |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details

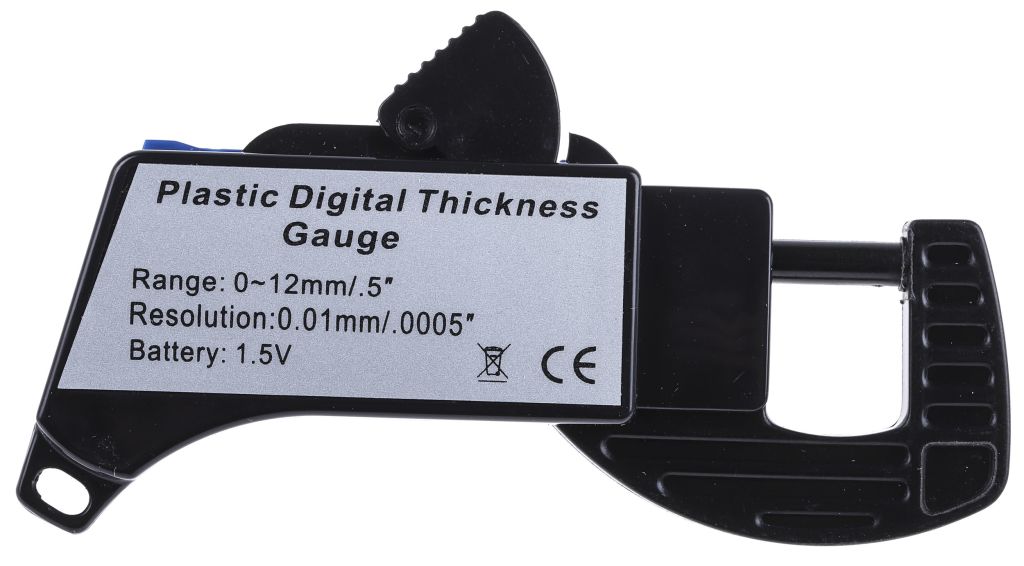

RS Pro Digital Thickness Gauge
RS Pro digital thickness gauge designed to measure a wide variety of materials from metal to sheets paper. The RS Pro gauge features a digital readout and includes a lanyard ring for accessibility.
SUPPLIED_WITH : 1 x SR44 battery
Features and Benefits
Lightweight digital thickness gauge
Clear LCD display
Reads in inches and millimetres
Manufactured from extra strong carbon fibre composites
Complete with spindle retraction lever
Specification
Range: 0 –12mm/0 – 0.5”
Resolution: 0.01mm/0.05”
Accuracy: +/- 0.03mm/0.0015”
Application Information
RS Pro digital thickness gauge is an ideal gauge for metal-workers, carpenters and DIY enthusiast
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Maximum Measurement | 12 mm |
| Accuracy | ±0.1 mm |
| Battery Type | SR44 |
| Minimum Measurement | 0 mm |
| Display Type | LCD |
| Resolution | 0.01 mm |
