Phoenix Contact Repeater
- RS Stock No.:
- 3707669
- Mfr. Prt No.:
- 2744429
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 3707669 |
| Product description | Phoenix Contact Repeater |
| Manufacturer / Brand | Phoenix Contact |
| Manufacturer part number | 2744429 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 3707669 |
| Product description | Phoenix Contact Repeater |
| Manufacturer / Brand | Phoenix Contact |
| Manufacturer part number | 2744429 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details

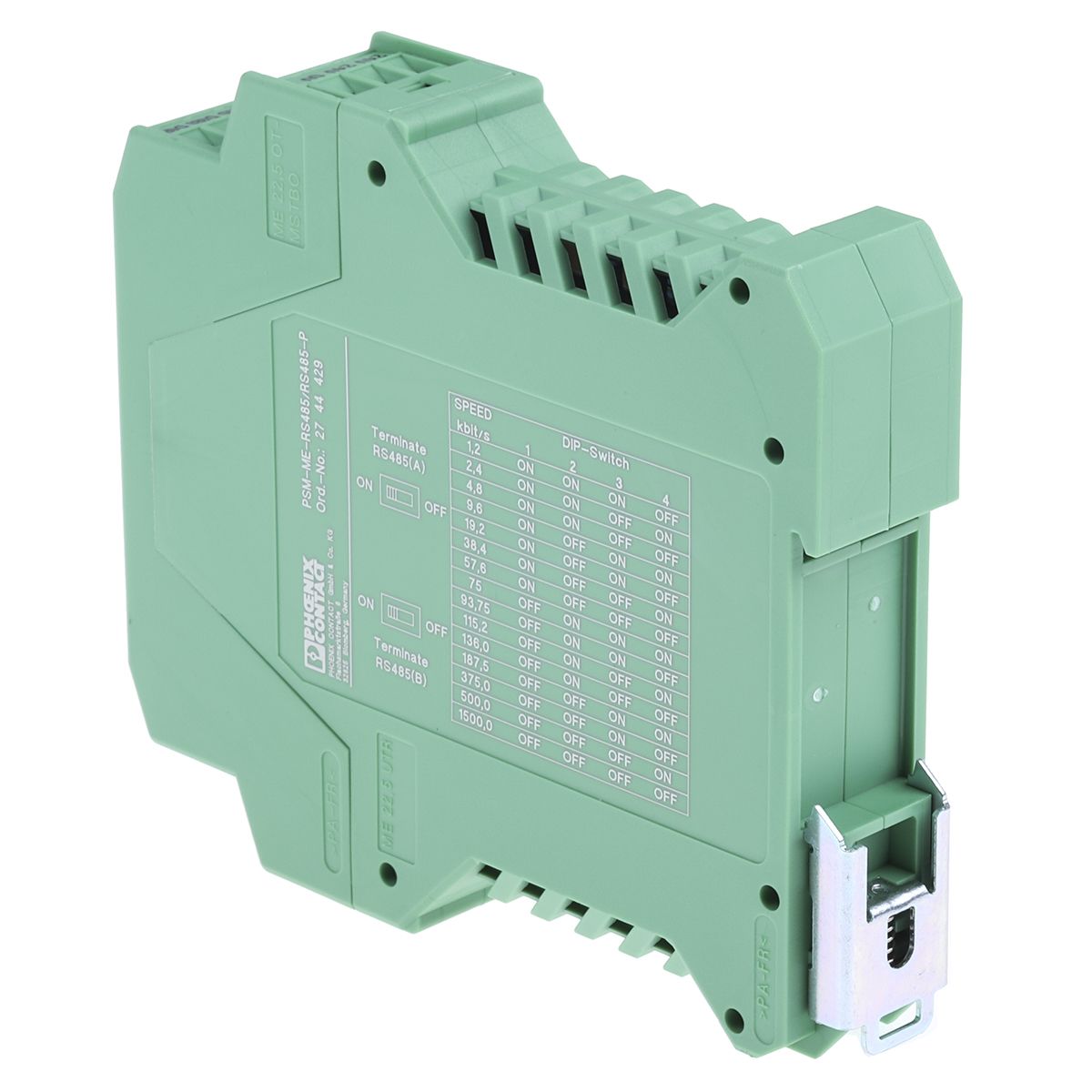

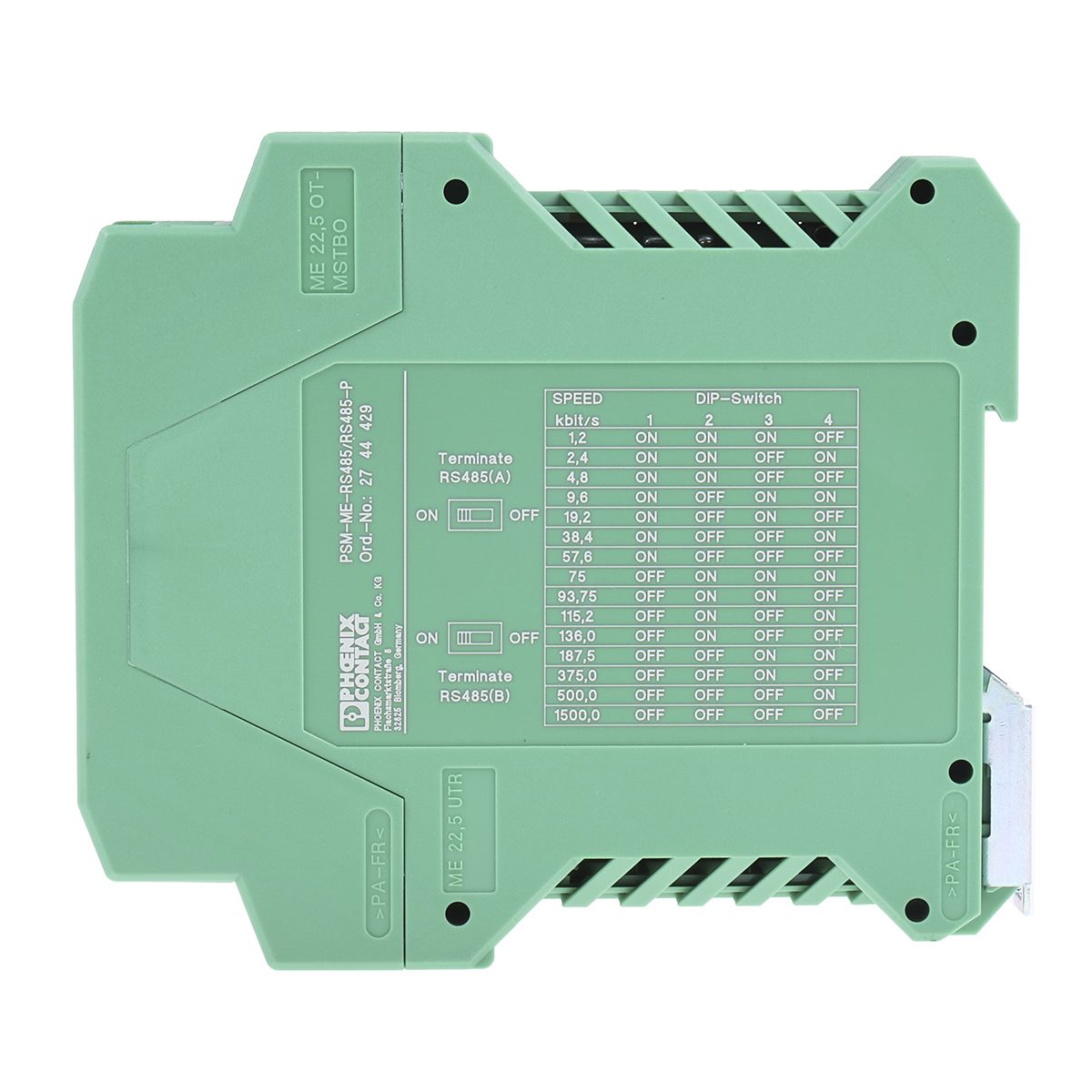

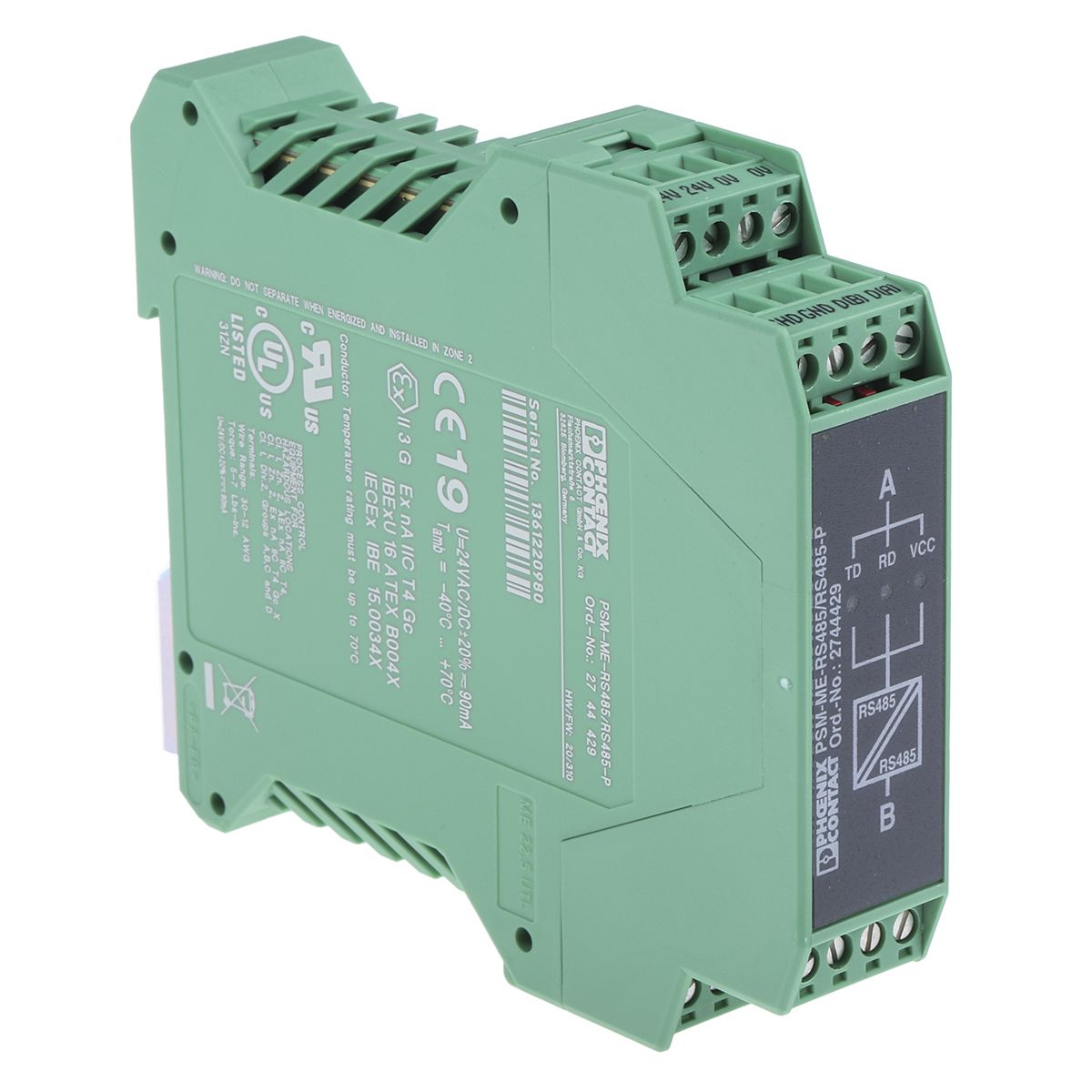

Phoenix Contact RS485 to RS485 bus repeater
The RS485 to RS485 Bus Repeater from Phoenix Contact is designed for use on virtually all 2-wire RS485 bus systems such as PROFIBUS and MODBUS. The slim, DIN rail mountable repeater device does not need any special cables meaning that networks can be implemented using available cables, making them cost-effective.
Features and Benefits:
• Operates up to 1.5Mbit/s
• Space-saving 22.5 mm slim device
• Allows more than 32 nodes on an RS485 network
• Removes length limitation of branches
• Parallel connections on one side to simplify the wiring of a ’T’ connection
• Integrated surge protection with transient discharge to the DIN rail
• 3-way isolation between all interfaces
Applications:
Used for potential separation and range increase, they allow for two or more connections.
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
