Fabreeka Anti Vibration Mount

RS Stock No.:
0442319
Mfr. Prt No.:
90755
Brand:
Fabreeka

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 0442319
Product description Fabreeka Anti Vibration Mount
Manufacturer / Brand Fabreeka
Manufacturer part number 90755

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Nov 21, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

Flex-loc Fasteners

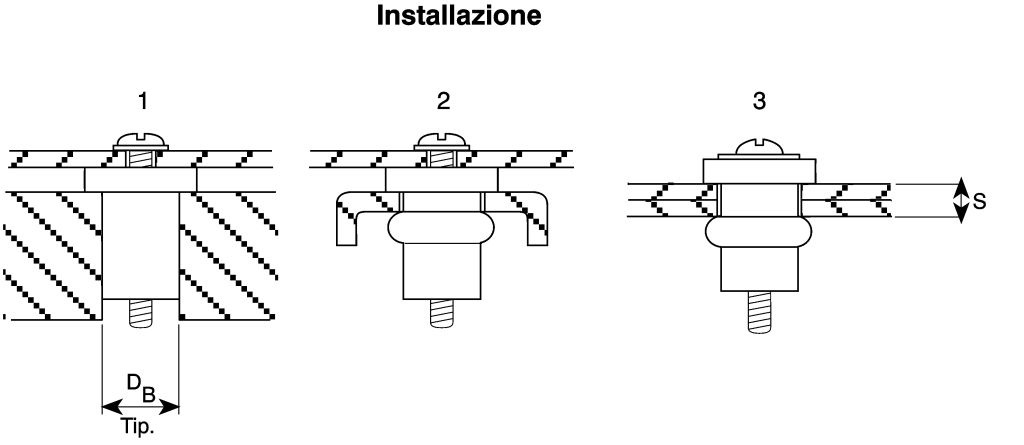

Anti-vibration fasteners that can be used as a mount, seal, anchor, brushing or in a blind hole
Manufactured in neoprene which resists oil, ozone, most acids and detergents
Isolates structural frequencies as low as 150Hz and reduces up to 80% of vibration energy
-30°C to + 80°C operating range
Load ratings are dependant on installation method, refer to manufactures data sheet

L442280-01LE442296-01LI442296-01

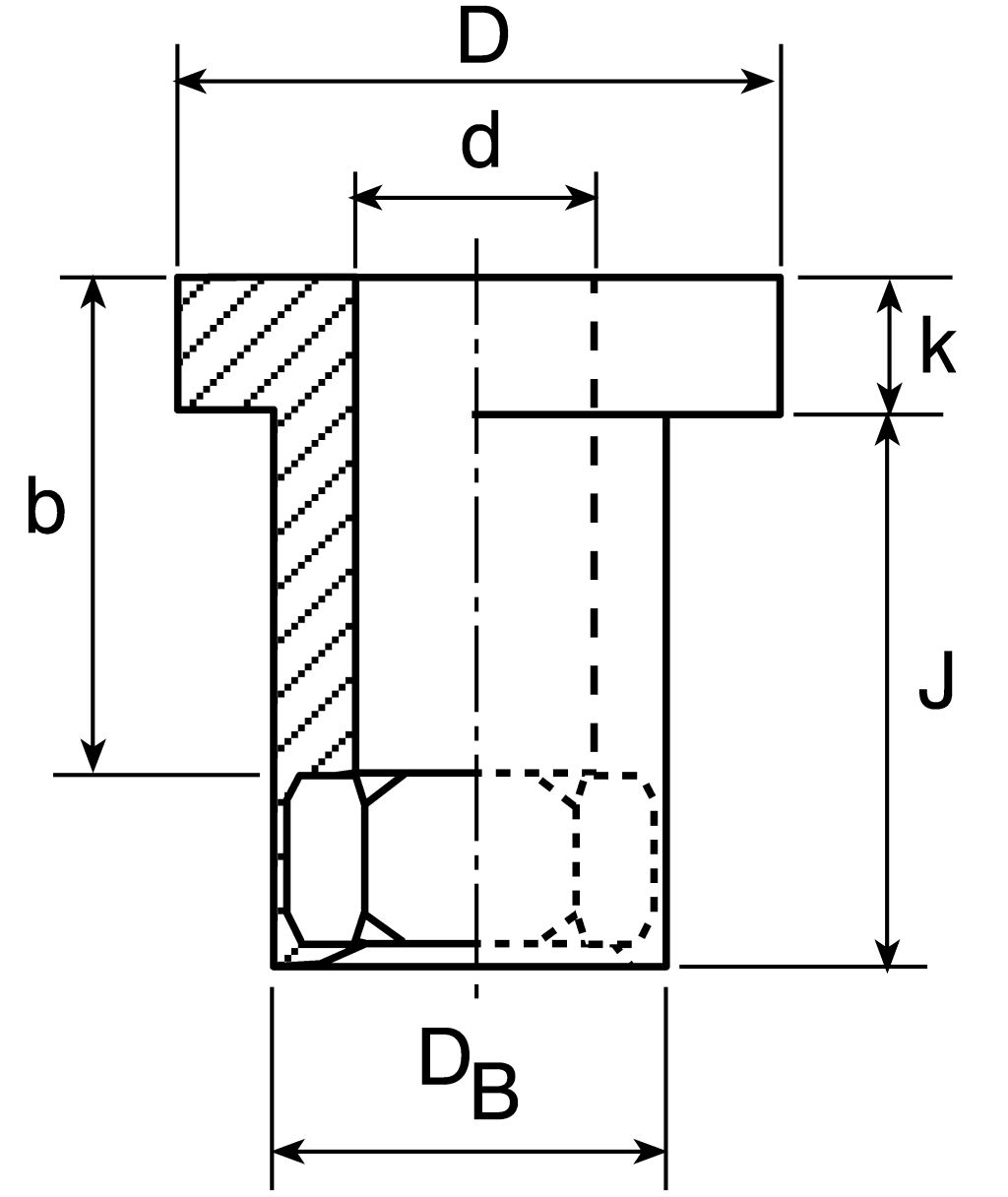

Specifications

Attribute Value
Brand Fabreeka
Bore Length 21.45 mm
Material Neoprene
Maximum Operating Temperature +80 °C
Minimum Operating Temperature -30 °C
Outer Diameter 18 mm
Static Load Capacity 14 kg
Bore Diameter 6.30 mm
