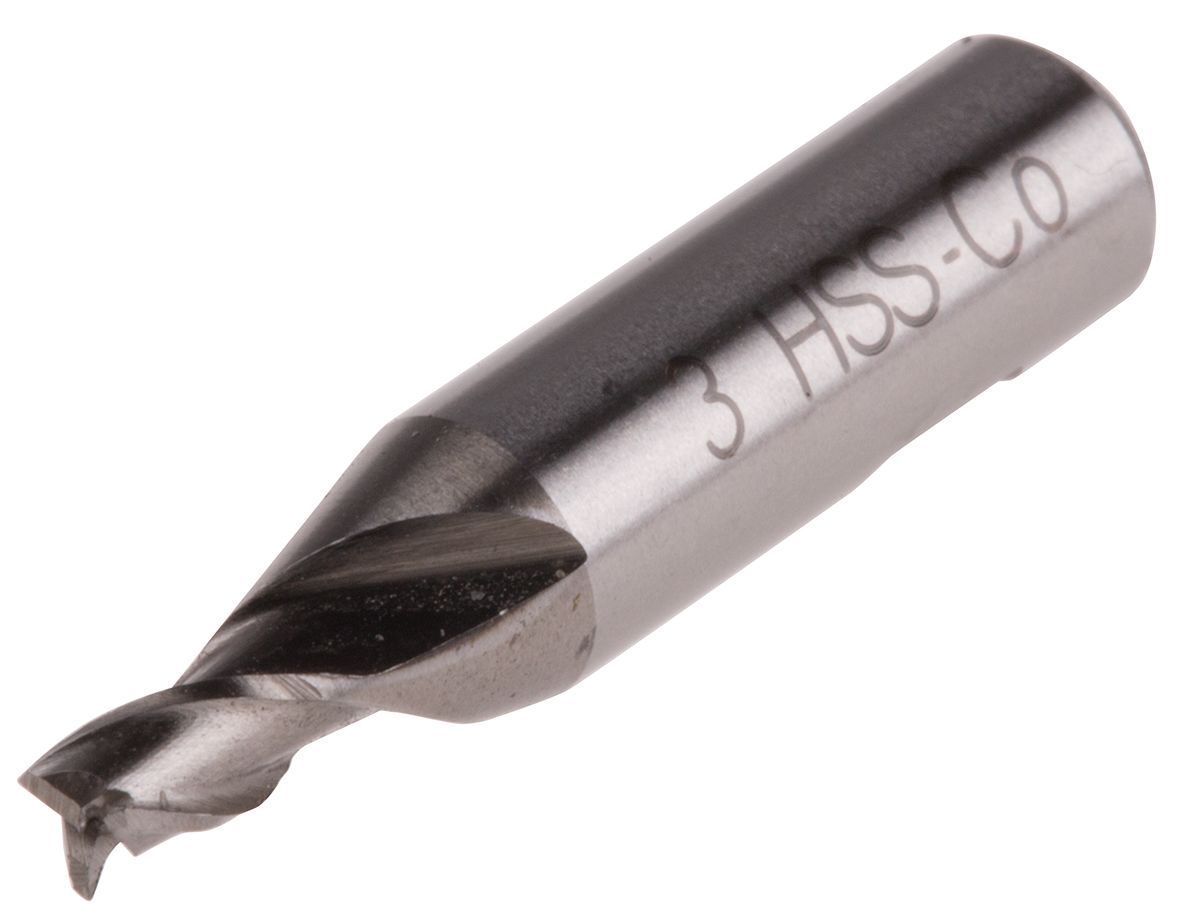

RS PRO HSCo End Mill, 3mm Cut Diameter
- RS Stock No.:
- 5230470
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 5230470 |
| Product description | RS PRO HSCo End Mill, 3mm Cut Diameter |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Standard Length FC3 Milling Cutters
A range of standard length and long series Clarkson Osborn FC3 throw-away milling cutters.
Manufactured from High Speed Cobalt steel (HSSE) and intended for use in Clarkson FC3 Holders and adaptors
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Overall Length | 28 mm |
| Cutter Diameter | 3 mm |
| Shank Type | Weldon |
| Cut Length | 4.5 mm |
| Shank Diameter | 6 mm |
| Material | HSCo |
