RS PRO Steel Inline Mounting, Hydraulic Check Valve, G 3/4, 80L/min

RS Stock No.:
2838324
Brand:
RS PRO

Technical Reference


Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 2838324
Product description RS PRO Steel Inline Mounting, Hydraulic Check Valve, G 3/4, 80L/min
Manufacturer / Brand RS PRO

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Dec 25, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: IT


Product Details

Steel Non-return Valves

Manufactured from steel these non-return valves are seated metal to metal by means of spring loaded ball housed in an ABS plastic guide.

Note

Not suitable for use with water.

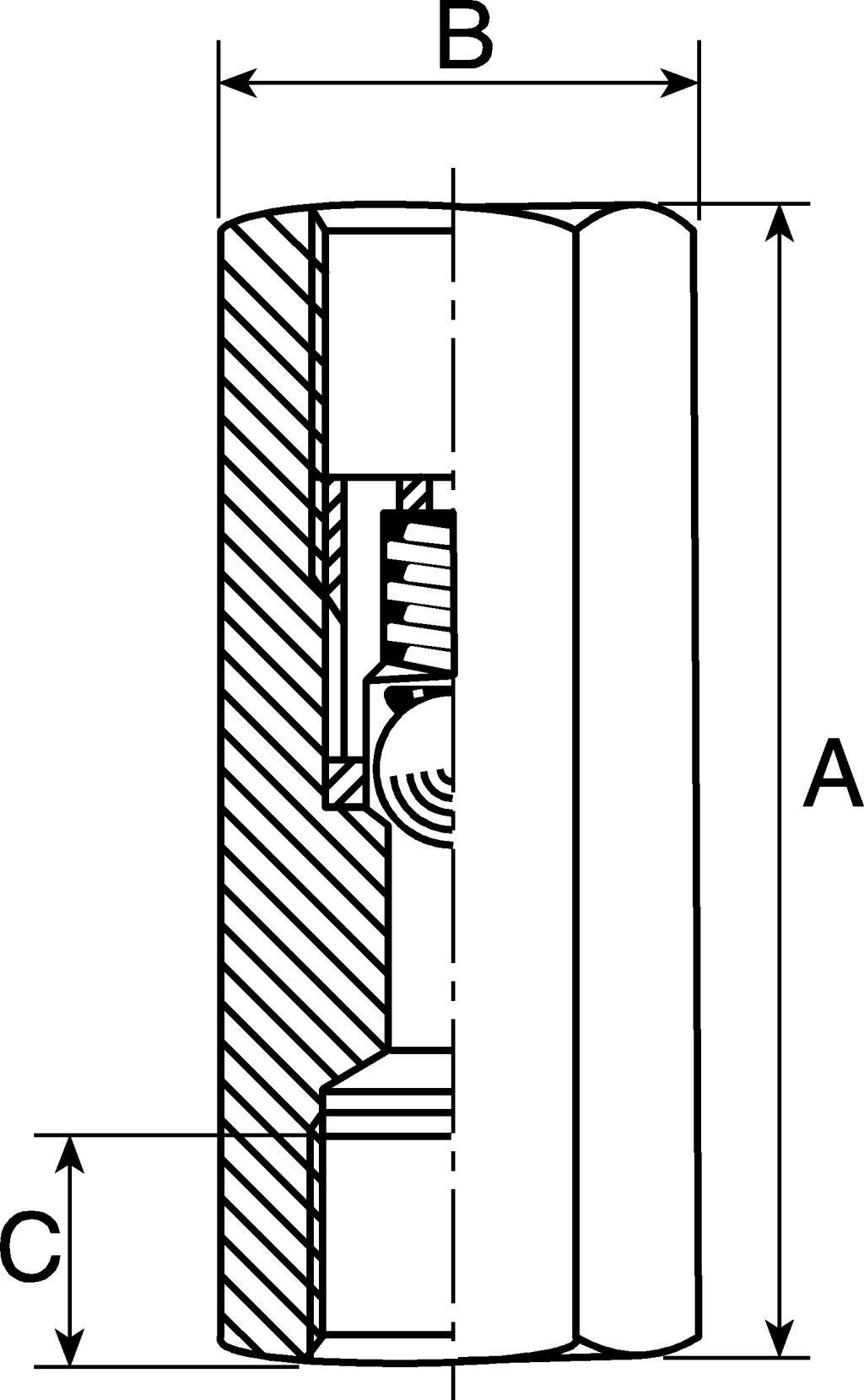

L283829-01

Specifications

Attribute Value
Brand RS PRO
Body Material Steel
Minimum Operating Temperature -20 °C
Maximum Flow Rate 80 L/min
Maximum Operating Temperature +100 °C
Manufacturer Series FT260
Thread Size 3/4 in
Connection Port Thread G 3/4
Maximum Operating Pressure 350 bar
Thread Standard G
Mounting Type Inline
Checking stock...
VND
1,314,544.00
Out of stock
Price Each
Unit(s)Per Unit(VND)
11,314,544.00
*price per unit indicative
