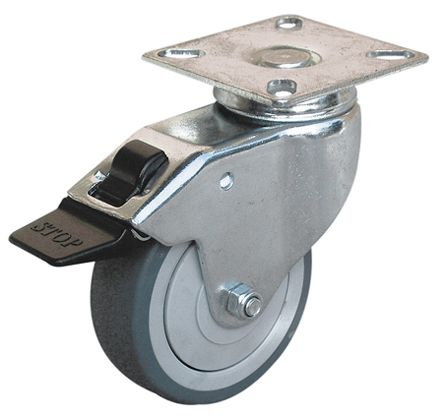

Guitel Hervieu Braked Swivel Castor Wheel, 50kg Capacity, 75mm Wheel
- RS Stock No.:
- 2536387
- Mfr. Prt No.:
- 366722
- Brand:
- Guitel
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 2536387 |
| Product description | Guitel Hervieu Braked Swivel Castor Wheel, 50kg Capacity, 75mm Wheel |
| Manufacturer / Brand | Guitel |
| Manufacturer part number | 366722 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 14, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Grey thermoplastic rubber castors
Specifications
| Attribute | Value |
| Brand | Guitel |
| Wheel Diameter | 75 mm |
| Load Capacity | 50 kg |
| Overall Height | 102 mm |
| Wheel Width | 22 mm |
| Mounting Type | Plate |
| Fixing Plate Dimensions | 60 x 60 mm |
| Rotation | Braked Swivel |
| Application | Furniture |
| Tyre Material | Rubber |
| Includes Brake | Yes |
| Fixing Centres | 40 x 40 mm |
| Weight Class | Light Duty |
| Features | Non-Marking |
| Number of Fixing Holes | 4 |
| Fixing Hole Size | 6 mm |
| Hub Bearing Type | Plain Bore |
| Hub Material | PP |
