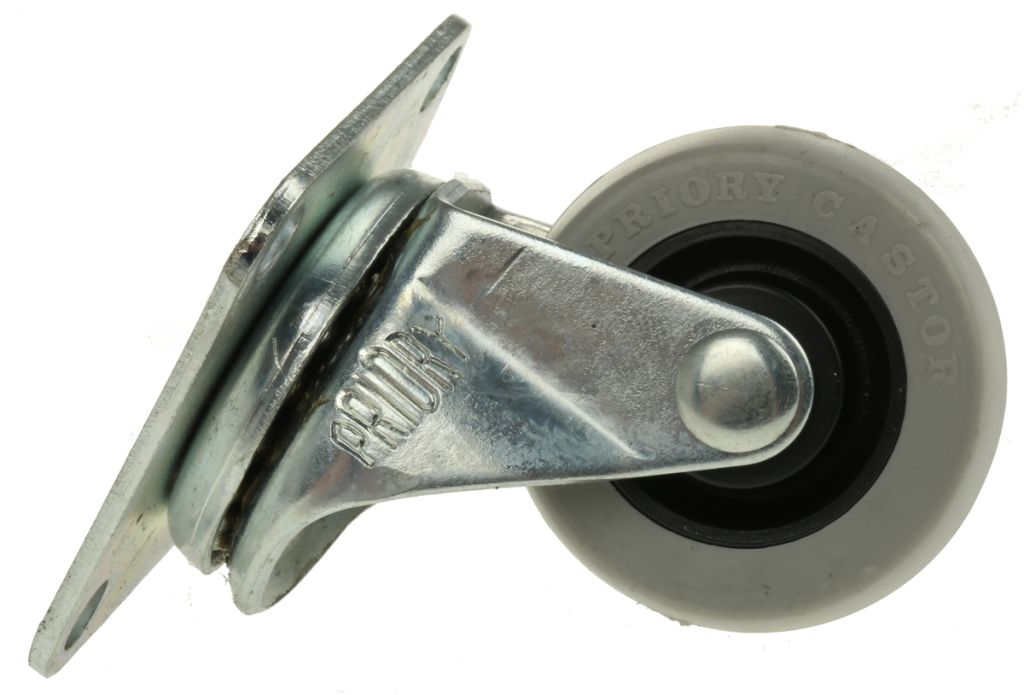

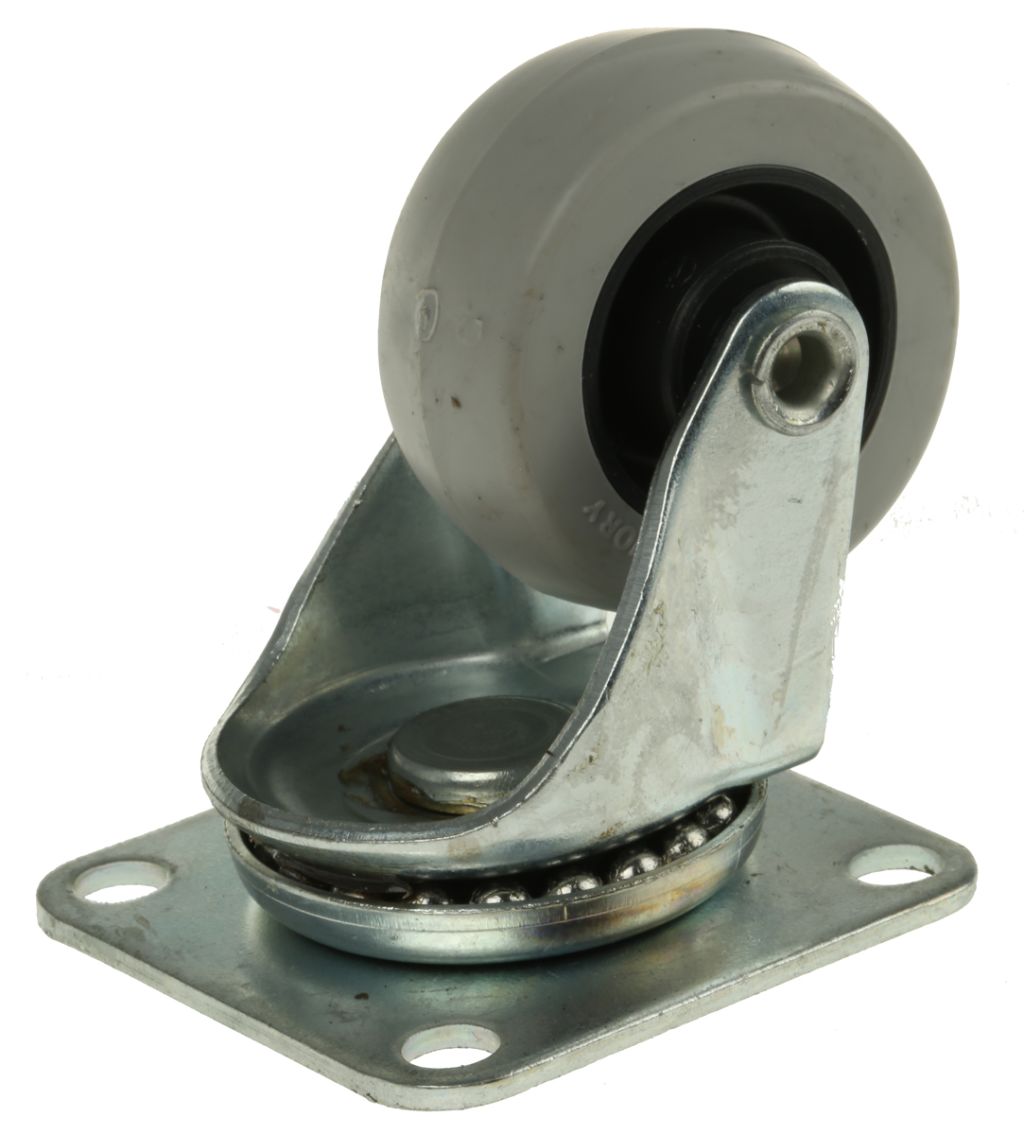

RS PRO Swivel Castor Wheel, 16kg Capacity, 41mm Wheel
- RS Stock No.:
- 0687253
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0687253 |
| Product description | RS PRO Swivel Castor Wheel, 16kg Capacity, 41mm Wheel |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details
Grey Rubber Wheel Castor
Unbraked, swivel
Pressed steel zinc plated body
Rubber tyre
Plain hub bearing
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Mounting Type | Plate |
| Hub Bearing Type | Plain Bore |
| Rotation | Swivel |
| Includes Brake | No |
| Load Capacity | 16 kg |
| Number of Fixing Holes | 4 |
| Overall Height | 57 mm |
| Fixing Plate Dimensions | 51 x 51 mm |
| Weight Class | Heavy Duty |
| Wheel Diameter | 41 mm |
| Fixing Centres | 38 x 38 mm |
| Fixing Hole Size | 6.5 mm |
| Wheel Width | 17 mm |
| Tyre Material | Rubber |
