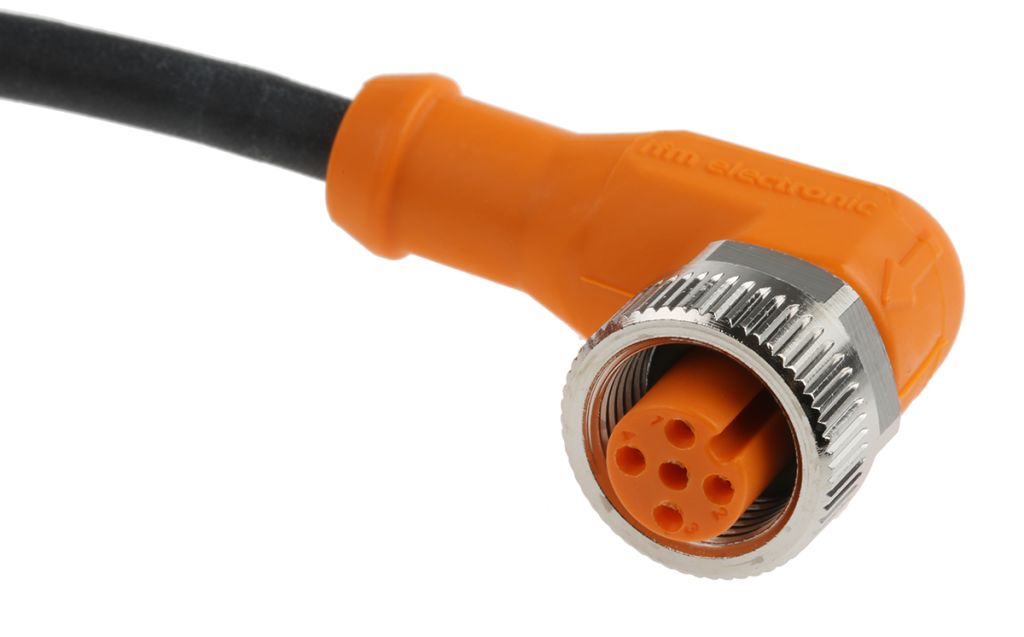

ifm electronic Female M12 to Free End Sensor Actuator Cable, 4 Core, 2m
- RS Stock No.:
- 0140149
- Mfr. Prt No.:
- EVC004
- Brand:
- ifm electronic
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0140149 |
| Product description | ifm electronic Female M12 to Free End Sensor Actuator Cable, 4 Core, 2m |
| Manufacturer / Brand | ifm electronic |
| Manufacturer part number | EVC004 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Sensor for use in machine tools
Specifications
| Attribute | Value |
| Brand | ifm electronic |
| Connector A | M12 |
| Connector B | Free End |
| Length | 2 m |
| Connector A Gender | Female |
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Connector A Number of Contacts | 4 |
| IP Rating | IP65, IP67, IP68, IP69K |
| Current Rating | 4 A |
| Outer Diameter | 4.3 mm |
| American Wire Gauge | 22 AWG |
| Fire Behaviour | Halogen Free |
