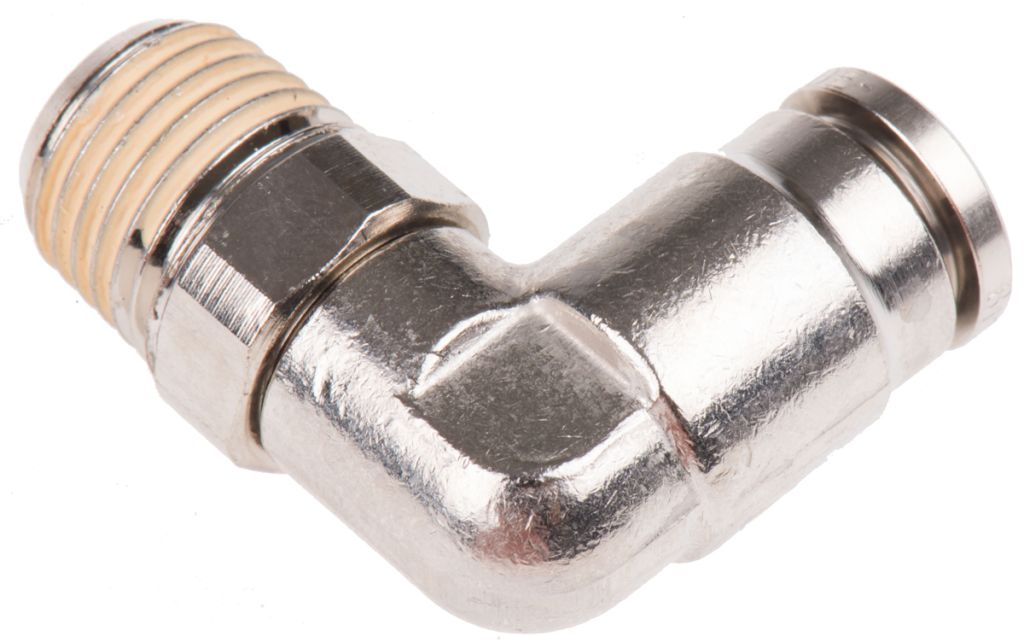

IMI Norgren PNEUFIT Series Elbow Threaded Adaptor, R 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 2102394
- Mfr. Prt No.:
- 101470828
- Brand:
- IMI Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2102394 |
| Product description | IMI Norgren PNEUFIT Series Elbow Threaded Adaptor, R 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style |
| Manufacturer / Brand | IMI Norgren |
| Manufacturer part number | 101470828 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Sep 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details
Threaded, Tube-to-Tube & Adaptors
Norgren PNEUFIT 10 Series - Swivel Elbow Fittings
Norgren PNEUFIT 10 Series of 90° swivel elbow fittings offer a convenient push-in fitting to BSP taper thread system for compressed air. These high quality nickel plated brass fittings have a non-PTFE based sealant pre-coated to the taper threads that, coupled with the easy push-in tube insertion, allows faster assembly of pneumatic circuits.
Features and Benefits
- Silicone free O-ring seals
- Effortless, quick and simple push-in installation
- 90° L shaped elbow pneumatic fitting with swivel function
- Threaded to tube (hose) connection style for use in pneumatic applications
- Wide operating temperature range of -20 to +80°C
- Air pressure ranges of up to 18 bar
- Strong and durable nickel plated brass body
- Can be rotated in any direction
Specifications
| Attribute | Value |
| Brand | IMI Norgren |
| Manufacturer Series | PNEUFIT |
| Pneumatic Fitting Type | Elbow Threaded Adaptor |
| Connection Style | Threaded-to-Tube |
| Connector A | R 1/4 Male |
| Connector B | Push In 8 mm |
| Threaded Connection | R 1/4 Male |
| Body Material | Nickel Plated Brass |
| Thread Material | Nickel Plated Brass |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Pressure | 18 bar |
| Maximum Operating Temperature | +80 °C |
| Angle | 90° |
| Swivel Connection | Yes |
