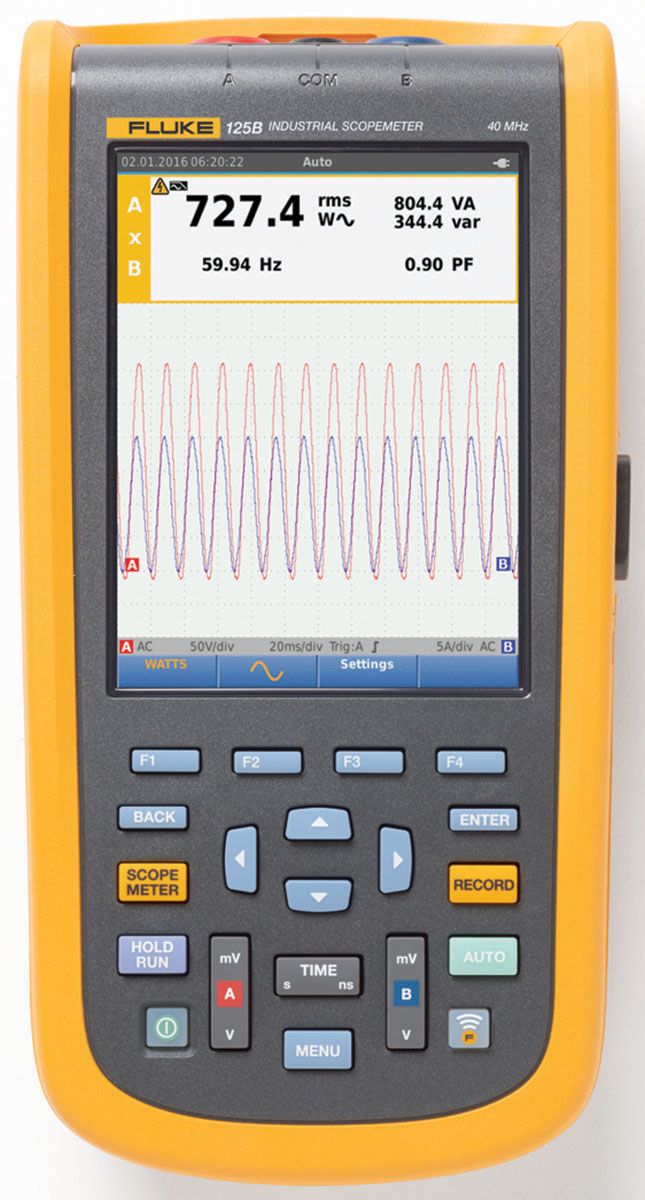

Fluke 125B ScopeMeter Handheld Oscilloscope, 40MHz, 2 Channels
- RS Stock No.:
- 9195069
- Mfr. Prt No.:
- FLUKE-125B/INT
- Brand:
- Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 9195069 |
| Product description | Fluke 125B ScopeMeter Handheld Oscilloscope, 40MHz, 2 Channels |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE-125B/INT |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Power Source | Battery |
| Sample Rate Random | 400 K samples/s |
| Bandwidth | 40 MHz |
| Maximum Vertical Sensitivity | 200 V/div |
| Interface | CAN, RS232, RS422, RS485, USB |
| Digital/Analogue | Digital |
| Screen Size | 5.7 in |
| Minimum Time Base | 10 ns |
| Oscilloscope Type | Handheld |
| Minimum Vertical Sensitivity | 5 mV/div |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 600 V, 750 V |
| Battery Type | Rechargeable Li-Ion |
| Number of Channels | 2 |
| Record Length | 2 M points/c |
| Dimensions | 259 x 132 x 55 mm |
| Battery Life | 7 h |
| Weight | 1.4 kg |
| Maximum Time Base | 500 ns/div |
| Safety Category | CAT III 750 V, CAT IV 600 V |
| Series | 125 |
| Rise Time | <8.75 ns |
