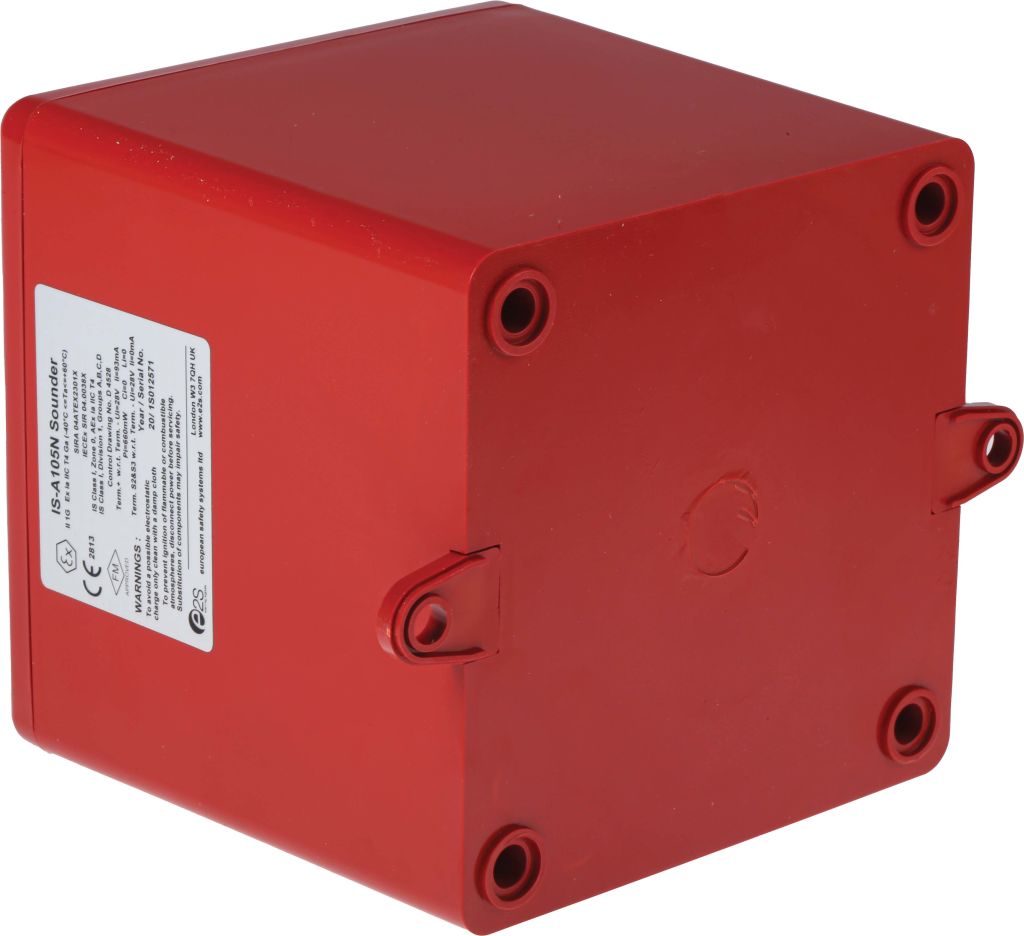

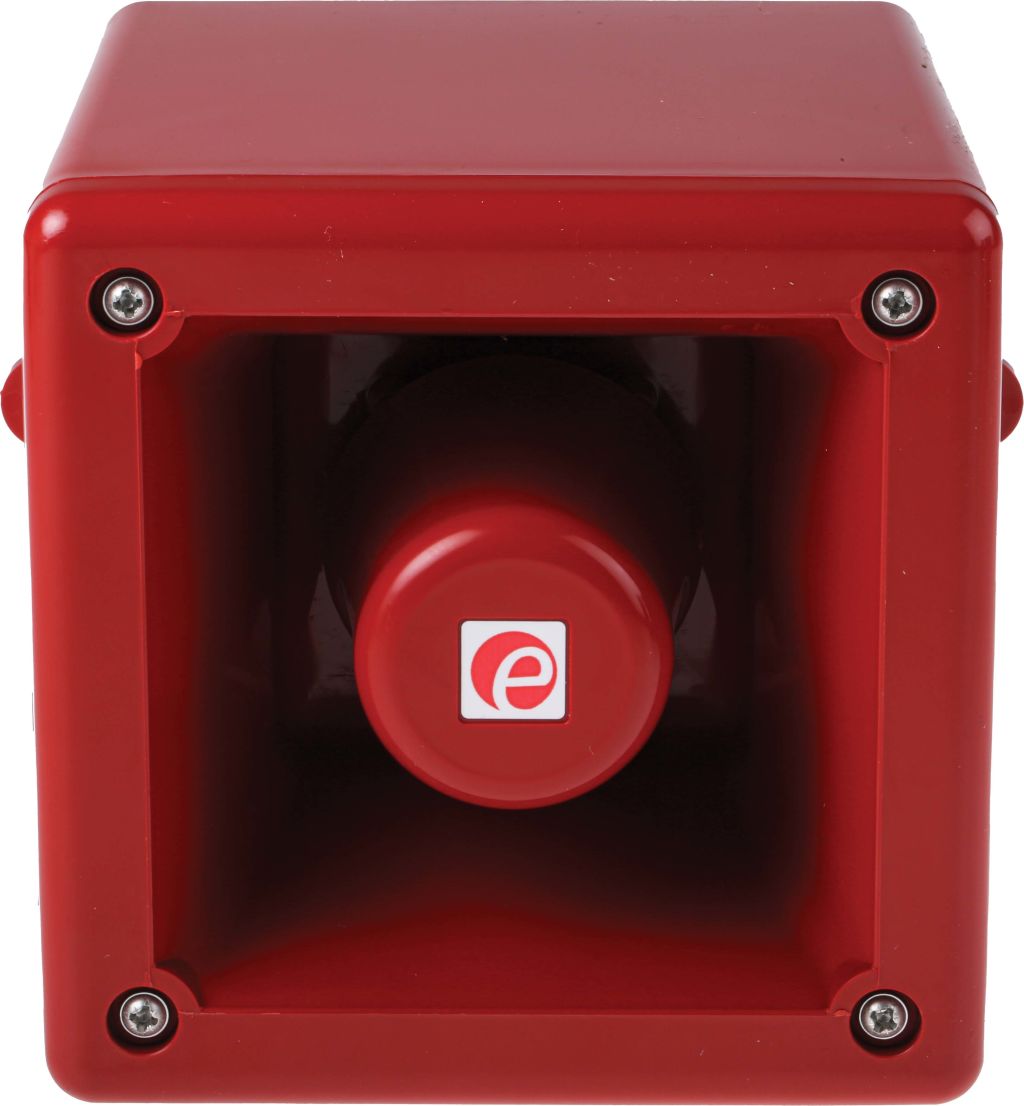

e2s IS-A105N Red 49 Tone Electronic Sounder, 16 → 28 V dc, 105dB at 1 Metre, Surface Mount, IP66
- RS Stock No.:
- 6173508
- Mfr. Prt No.:
- IS-A105N-R
- Brand:
- e2s
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 6173508 |
| Product description | e2s IS-A105N Red 49 Tone Electronic Sounder, 16 → 28 V dc, 105dB at 1 Metre, Surface Mount, IP66 |
| Manufacturer / Brand | e2s |
| Manufacturer part number | IS-A105N-R |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details
Specifications
| Attribute | Value |
| Brand | e2s |
| Supply Voltage | 16 → 28 V dc |
| IP Rating | IP66 |
| Decibels at 1 Metre | 105 dB |
| Current Type | DC |
| Number Of Tones | 49 |
| Housing Colour | Red |
| Mounting Style | Surface Mount |
| Application Type | Sounder |
| Minimum Decibel | 96 dB |
| Maximum Decibel | 105 dB |
| Series | IS-A105N |
| Base Length | 130 mm |
| Minimum Temperature | -40 °C |
| Housing Material | ABS |
| Hazardous Area Certification | ATEX |
| Base Width | 130 mm |
| Maximum Temperature | +60 °C |
