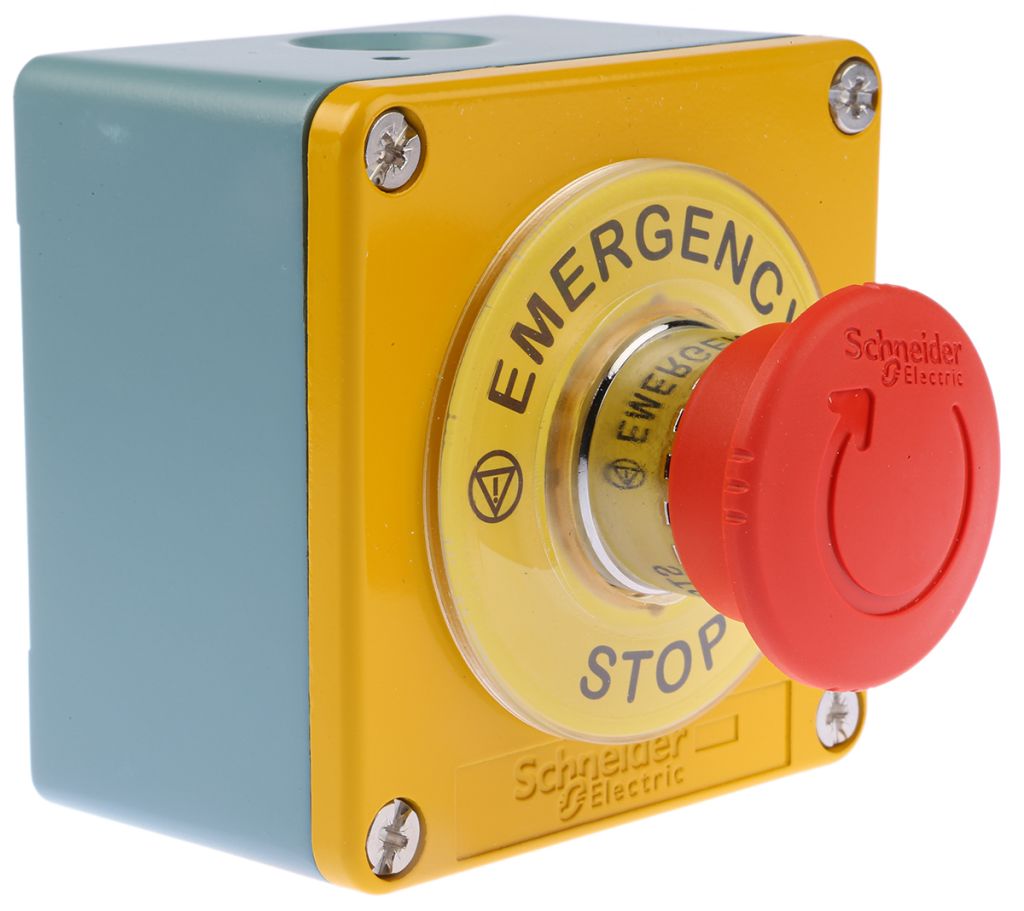

Schneider Electric Emergency Stop Push Button - Harmony XAP Series
The Harmony XAP series from Schneider Electric offers you complete robustness and reliability in an emergency stop push button, giving you the reassurance of controlling any emergency type event. This die-cast, zinc alloy control station is sturdy, reliable and durable in several different environments.
Features and benefits
• Blue, yellow and red colouring with 'Emergency Stop' decal prominently written to display function to users.
• Easy to maintain Zinc-alloy material, strong, durable and cost-effective.
• Effortless cable entry with 1 hole with a blanking plug and 1 hole without.
• Compact and lightweight in nature, making panel mounting simple.
• Designed for 22 mm control and signalling units.
• Functions additionally as an on, off & on-off as well as an emergency stop push button, depending on your requirements. Protection ratings -
• IP 65 rated (protected from total dust ingress, as well as low-pressure water jets from any direction).
• Ambient air temperature for operation from -25°C to 70°C
Applications
• Machine manufactures such as car, textile or timber
• Service sectors such as restaurants, public works, building, airports
Specifications
| Attribute | Value |
| Brand | Schneider Electric |
| Series | Harmony |
| Mounting Type | Panel Mount |
| Reset Method | Twist to Reset |
| Normal State Configuration | NO/2NC |
| Supply Current | 270 (dc) mA, 3 (ac) A |
| Contact Configuration | NO/2NC |
| Pole and Throw Configuration | TPST |
| Height | 80 mm |
| IP Rating | IP65 |
| Supply Voltage | 240 V ac, 250 V dc |
| Head Style | Mushroom |
| Illuminated | No |
| Range | Harmony |
| Head Diameter | 40 mm |
| Voltage Rating | 240 V ac, 250 V dc |
| Colour | Red |
| Dimensions | 80 x 80 x 51 mm |
| Depth | 51 mm |
| Push Button Material | Plastic |
| Length | 80 mm |
| Width | 80 mm |
