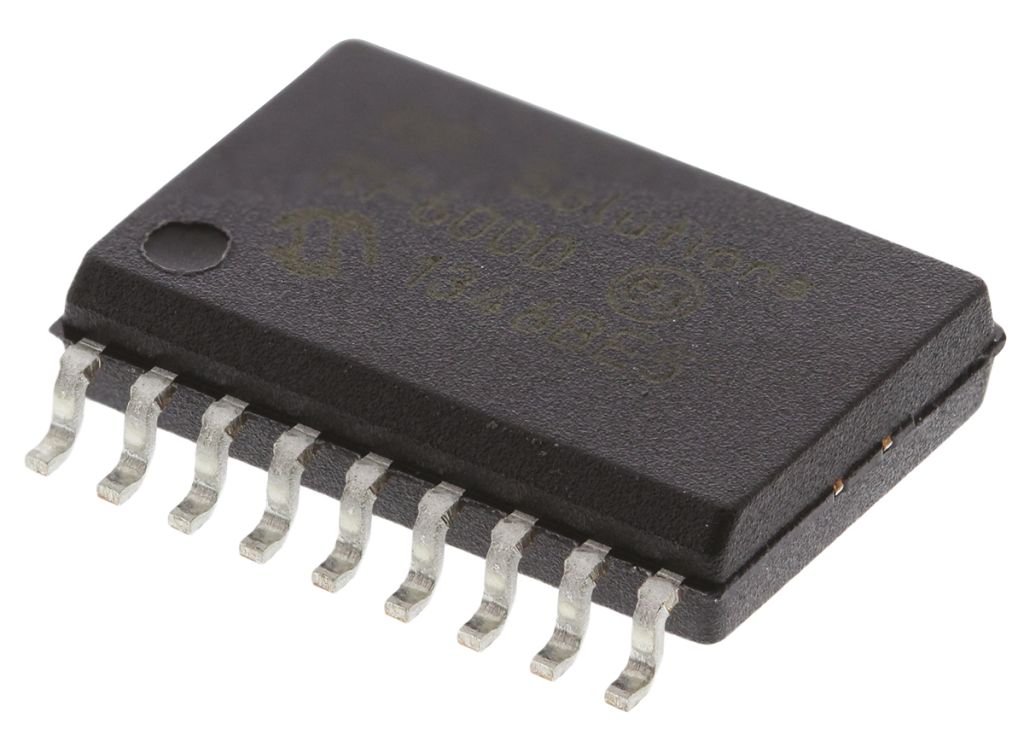

RF Solutions RF600D-SO RF Decoder IC, 18-Pin SOIC
- RS Stock No.:
- 5056935
- Mfr. Prt No.:
- RF600D-SO
- Brand:
- RF Solutions
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 5056935 |
| Product description | RF Solutions RF600D-SO RF Decoder IC, 18-Pin SOIC |
| Manufacturer / Brand | RF Solutions |
| Manufacturer part number | RF600D-SO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 5056935 |
| Product description | RF Solutions RF600D-SO RF Decoder IC, 18-Pin SOIC |
| Manufacturer / Brand | RF Solutions |
| Manufacturer part number | RF600D-SO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details
RF600E/D Remote Control CODEC chipset
The RF600E & RF600D chipset together with suitable RF/IR Transmitter and Receiver modules enable a secure wireless telemetry or keyfob remote control system to be made . The RF600E & RF600D CODEC chipset has been designed to obtain the maximum range from the wireless link using automatic data packet generation with Manchester encoding and CRC based error checking.
RF600E Transmitter Encoder RS Part No. 505-6929Manchester encodingKeeLoq data encryptionAutomatic packet generationCRC Error checkword generation4 x digital inputs (pushbuttons)Transmission status LED outputAutomatic Battery Level MonitorCompatible with most RF modules with no built-in codec functionsPower supply: +2V to +6.6VdcPackage: SOIC8Application: Remote control, simple wireless telemetryRF600D Receiver Decoder RS Part No. 505-6935KeeLoq data decryptionCRC Error checkingEasy Learn feature of transmittersUp to 7 transmitters can be learned (48 with external EEPROM)4 x digital outputsSerial UART outputReceiver status LED outputLow transmitter battery LED outputCompatible with most RF modules with no built-in codec functionsSleep ModePower supply: +4.5V to +5.5VdcPackage: SOIC18Application: Remote control, simple wireless telemetry
Specifications
| Attribute | Value |
| Brand | RF Solutions |
| Package Type | SOIC |
| Pin Count | 18 |
| Mounting Type | Surface Mount |
| Dimensions | 11.73 x 7.59 x 2.39 mm |
| Length | 11.73 mm |
| Width | 7.59 mm |
| Height | 2.39 mm |
| Primary Keyword | RF Decoder IC |
| Maximum Operating Supply Voltage | 16 V |
| Minimum Operating Supply Voltage | 11 V |
