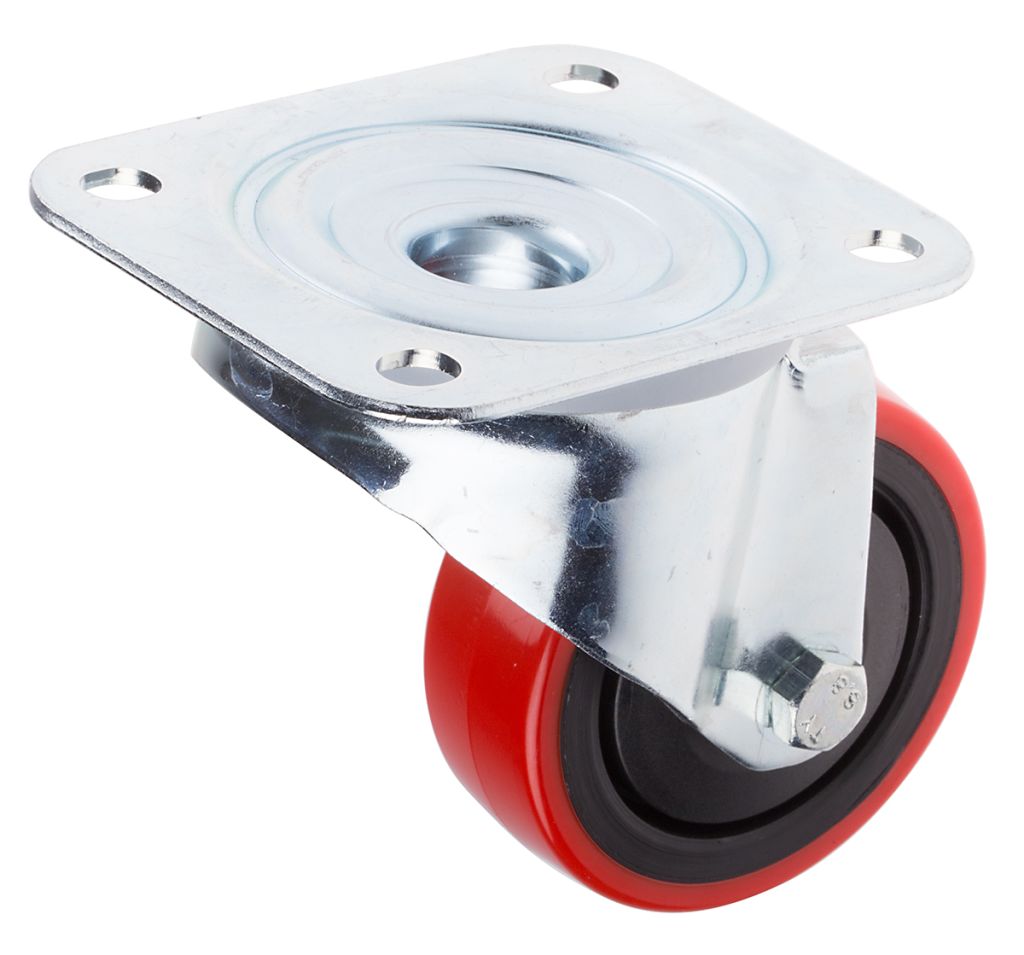

RS PRO Swivel Castor Wheel, 90kg Capacity, 80mm Wheel
- RS Stock No.:
- 1965144
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1965144 |
| Product description | RS PRO Swivel Castor Wheel, 90kg Capacity, 80mm Wheel |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: IT
Product Details
Polyurethane Tyred Castor, Series NPB
Zinc plated body
Black wheel
Red tyre
Swivel types fitted with double ball race
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Includes Brake | No |
| Load Capacity | 90 kg |
| Number of Fixing Holes | 4 |
| Overall Height | 104 mm |
| Fixing Plate Dimensions | 100 x 80 mm |
| Weight Class | Medium Duty |
| Wheel Diameter | 80 mm |
| Fixing Centres | 80 x 60 mm |
| Fixing Hole Size | 8.4 mm |
| Wheel Width | 30 mm |
| Hub Bearing Type | Single Ball Race |
| Rotation | Swivel |
| Tyre Material | PUR |
| Mounting Type | Plate |
| Features | Low Friction |
