Product Details

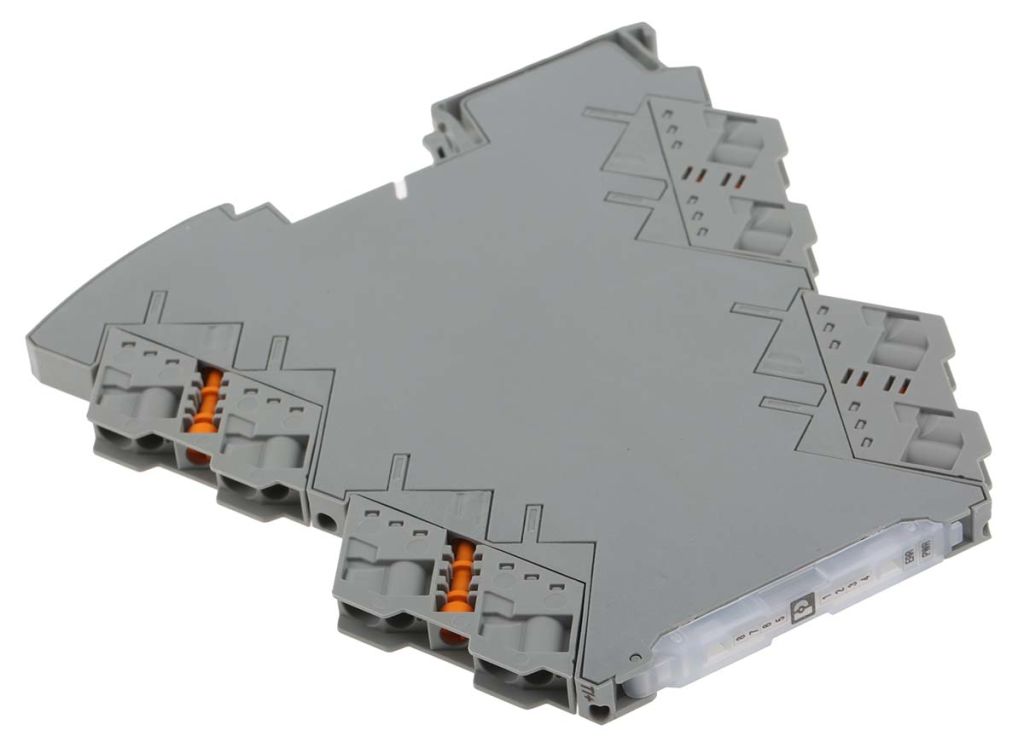

MINI MCR - Signal Duplicators
The 2905026 from Phoenix Contact is a 4-way, configurable signal duplicator. This module can process inputs from 0mA – 24mA and an input voltage of 0V – 12V, while outputting 0mA – 21mA and an output voltage of 0V – 10.5V. The 2905026 has plug-in technology to allow for an easier setup and is approved with an ATEX zone-2 installation rating.
The module can be configured with either the easy to access DIP switch on the side, or can be programmed via an S-PORT using FDT/DTM.
Features and benefits:
- Freely adjustable inputs and outputs
- ATEX Zone-2 installation approval (nA)
- Reinforced isolation in alignment with IEC 61010-1
- Supply voltage range 9.6 V DC up to 30 V DC
- Power from a TBUS Din rail connector
Applications:
- Electrical isolation
- Conversion
- Amplification
- Filtering of standard signal
Accessories:
TBUS Din rail connector – 489-2825
USB Programmer (S-PORT) – 801-6107
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
| Input Signal Type | Current, Voltage |
| Mounting Type | DIN Rail |
| Supply Voltage | 24 V dc |
| Input Range | 0 → 12 V, 0 → 24 mA |
| Hazardous Area Certification | ATEX |
| Output Range | 0 → 10.5 V, 0 → 21 mA |
| Module Type | Signal Conditioner |
| Signal Conditioner Type | Signal Duplicator |
| Maximum Operating Temperature | +70 °C |
| Termination | Screw |
| Output Type | Current, Voltage |
| Minimum Operating Temperature | -40 °C |
| Operating Temperature Range | -40 ? +70 °C |
| Series | MINI MCR |
