RS PRO UV Meter 290 → 390 nm
- RS Stock No.:
- 1065310
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1065310 |
| Product description | RS PRO UV Meter 290 → 390 nm |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1065310 |
| Product description | RS PRO UV Meter 290 → 390 nm |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details
Detectors - Ultraviolet

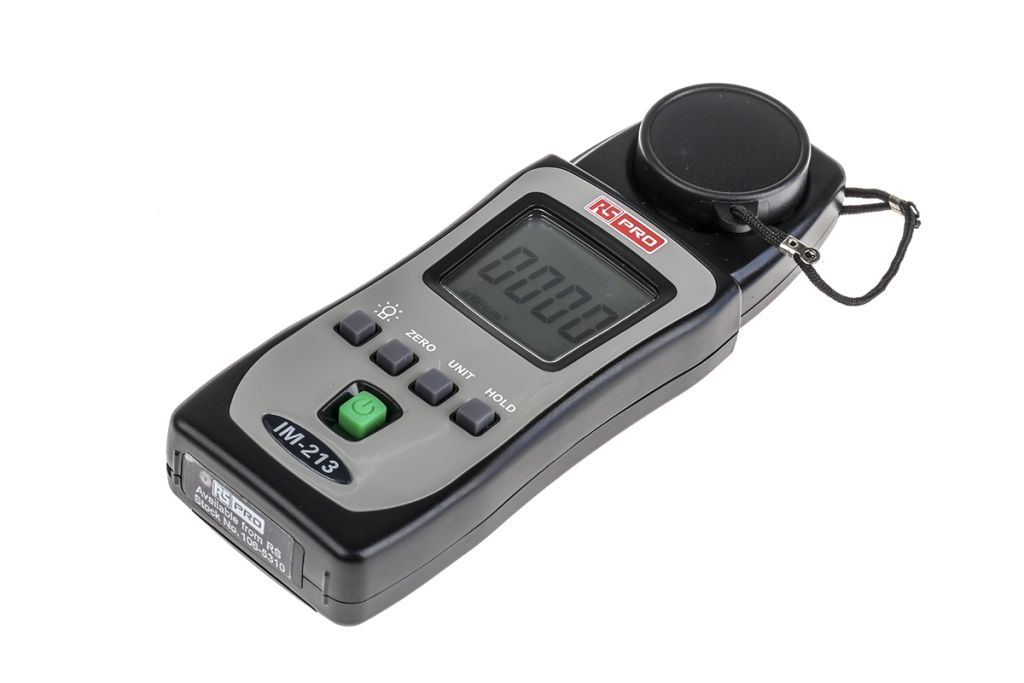

RS PRO Mini Pocket UV AB Meter IM-213
RS PRO mini pocket UV AB meter IM-213 is a great value instrument for measuring mercury, xenon, metal halide or fluorescent lamps. It is commonly used for studies in the UVA region, as well as in sunlight and measures UV-AB light from exposure to natural and artificial sources. This device has many great features including a large backlit LCD display with zero and data hold functions. This meter is small, compact and lightweight and is ideal for quick and easy UV light measurement in applications such as forensics, laboratory research, electronics and much more.
SUPPLIED_WITH :
- Manual
- 2 batteries 1.5 V AAA<
Features and Benefits
- High quality UV meter
- Ultra-violet irradiation measurement of UV
- UV detector spec trim from 290 nm to 390 nm
- Microprocessor circuit provides high reliability and durability
- 3 3/4 digits LCD with backlit maximum reading 3999 – for easy viewing in the dark
- Data hold
- Low battery indication
- Zero function
- Over indicator, display shows 'OL'
- Measuring range 3999 uW/cm² - 39.99 mW/cm²
- Resolution 1 uW/cm², 0.01 mW/cm²
- Accuracy ±5(%FS + 2dgt), FS full scale
- Sample time approximately 0.4 sec
- Power supply 2 batteries 1.5V AAA
- Auto power off – meter turns itself of to consume battery life if not used after 15 minutes
- Size 133 x 48 x 23 mm
- Weight approximately 90 g
Typical Applications
UV light testers or light meters are found in applications such as;
- Industrial – monitoring blue light radiation hazards in welding process, UV EPROM erasure, Photochemical matching
- Laboratories - General laboratory use, DNA research
Mercury, xenon, metal halide or fluorescent lamps
Studies in the UVA region as well as in sunlight
UV curing light sources and any other UV light source
Measuring light intensity at the wafer plane of mask alignersFAQs
How is UV light measured?
Ultraviolet radiation is measured in the units of milliwatts per square centimetre (mW/cm2) which is energy per square centimetre received per second. Also, it is measured in the units of millijoules per square centimetre (mJ/cm2), which is energy received per unit area in a given time.
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Width | 48 mm |
| Length | 133 mm |
| Dimensions | 133 x 48 x 23 mm |
| Data Storage | Yes |
| Kit Contents | UV AB Meter, Carry Bag, Batteries |
| Height | 23 mm |
| Battery Life | 100 h |
| Weight | 90 g |
| Battery Type | AAA |
