RS PRO 3.5 mm Cable Mount Mono Plug
- RS Stock No.:
- 0392633
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 0392633 |
| Product description | RS PRO 3.5 mm Cable Mount Mono Plug |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0392633 |
| Product description | RS PRO 3.5 mm Cable Mount Mono Plug |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details
6.35mm (1/4") jack

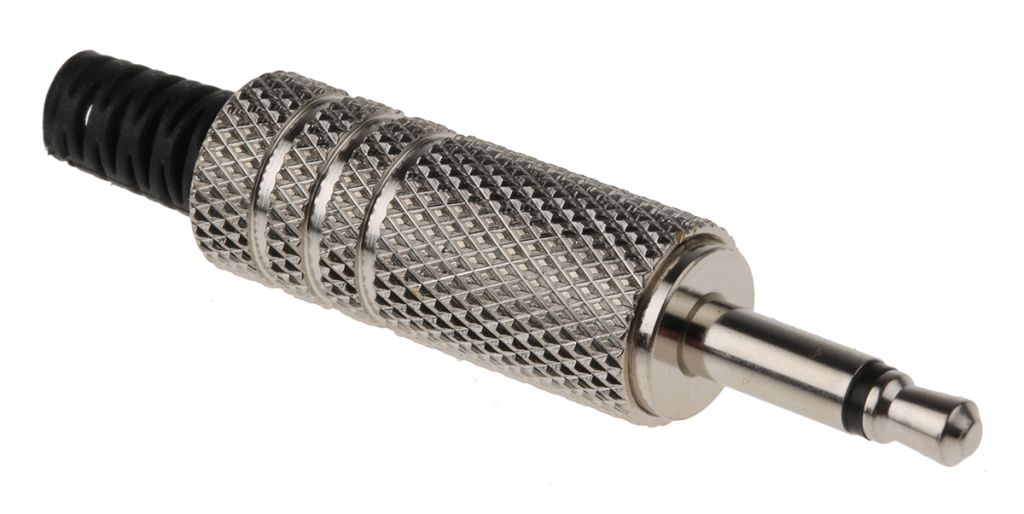

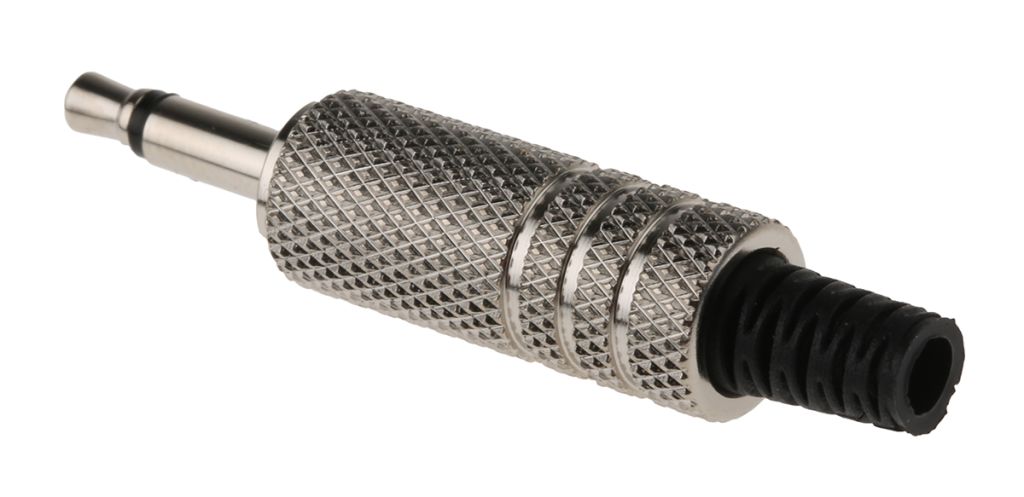

RS PRO 3.5 mm Mono Jack Plug
Even though 3.5 mm Mono Jack Plug exists on the market for a while, it is still reliable Plug ensuring clean contact surfaces with each operation.
The construction of the Mono Jack Pug is simple and consists of 2 main parts, which is a tip and a sleeve. Monotype sends one signal to both right and left channels and will produce the same movement, regardless of the number of speakers.
We are proudly introducing our own branded RS PRO 3.5 mm Mono Jack Plug made of nickel and brass and characterising of straight body orientation fitted with a moulded strain relief.
If you are looking for insulated Jack Plug, you might get inspired by checking RS PRO 106-868.
More inspirational Connector plugs (video, Stereo) and sockets with different specifications (gender, size, type, voltage rating, etc.) can be found by checking our Jack Plugs & Socket Family section on our website.
Features and Benefits
- 3.5 mm Mono Jack Plug is giving you the reliable sound quality
- The Jack is fitted with a moulded strain relief
- Made of nickel and brass is a miniaturised version of the original 6.3 mm
Applications
Jack is common in all aspects of the audio-visual world. Whether in a domestic hi-fi set up, or a professional studio, jack plugs and sockets are convenient quick-connect solutions for a high-quality sound experience. They also have uses outside of music, theatre and studio, and are frequently found in commercial, public address equipment and nurse call systems. Jack sockets are popular in:
- Mobile phones
- MP3 Players
- Games-Consoles
- Hi-fi systems
Frequently asked questions
Is Mono louder than Stereo?
By using Loudness Meter and compering the analysis, you would get no difference. However, form the human perception point of view Mono is louder than its stereo counterpart.
Why RS PRO?
RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Type | Mono |
| Colour | Natural |
| Contact Plating | Nickel |
| Size | 3.5 mm |
| Housing Material | Brass |
| Contact Material | Brass |
| Gender | Male |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
