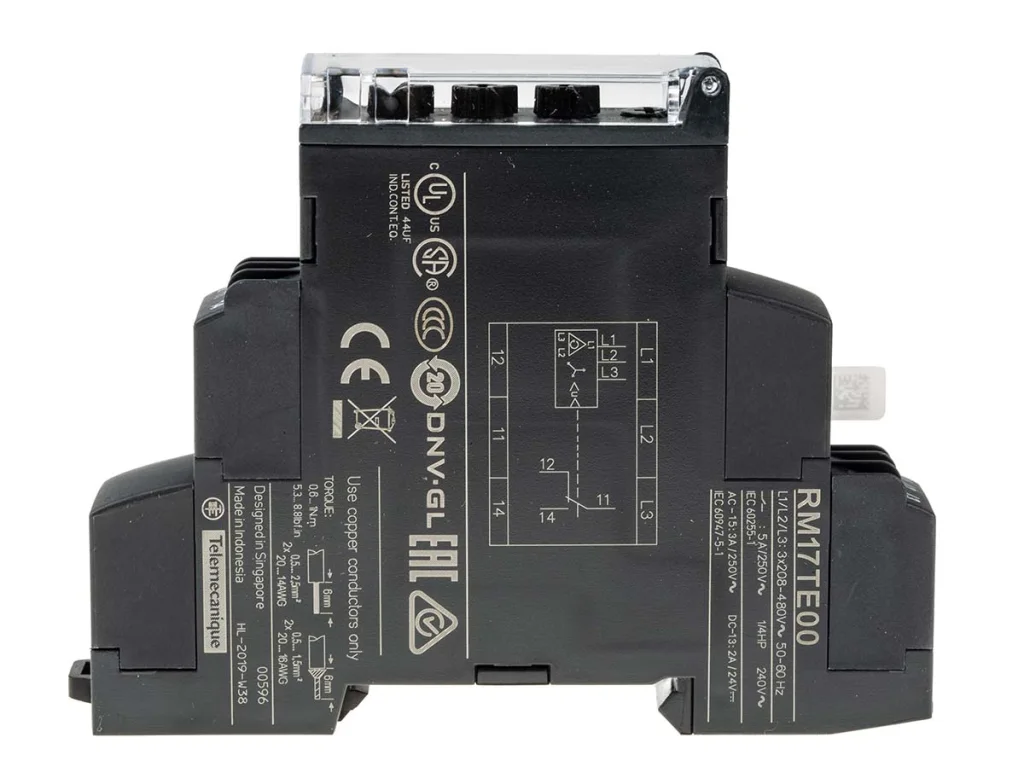

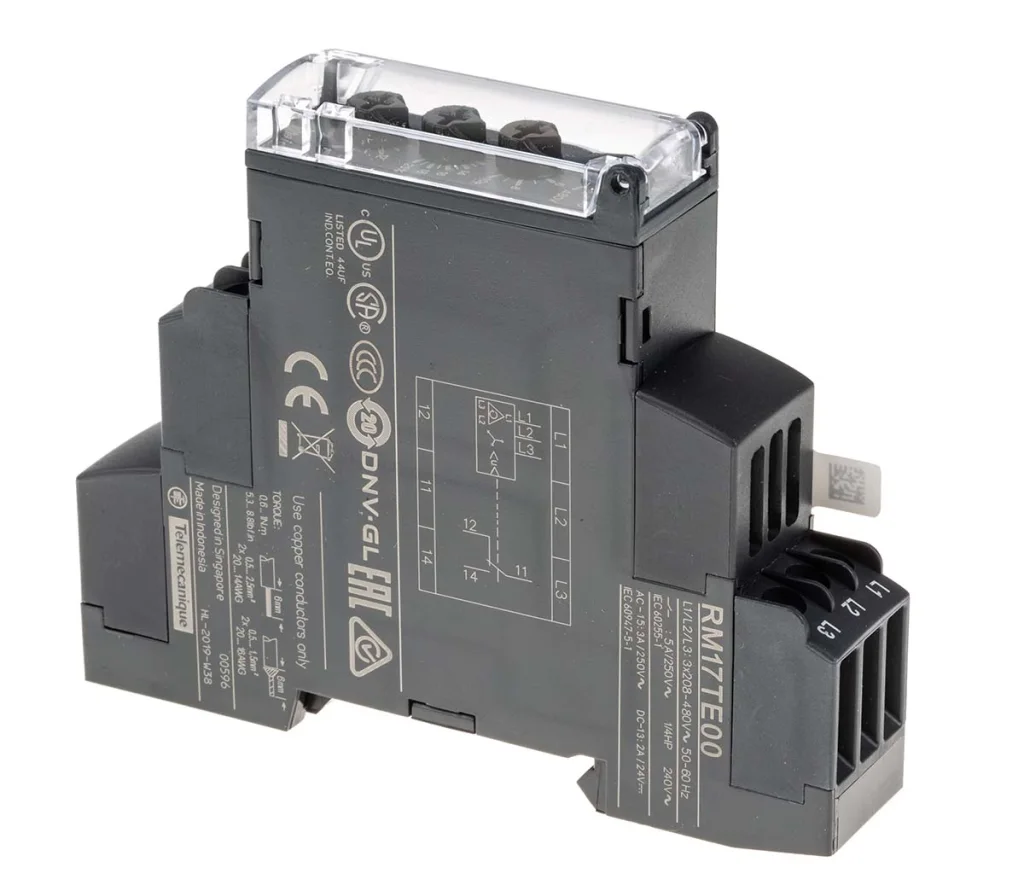

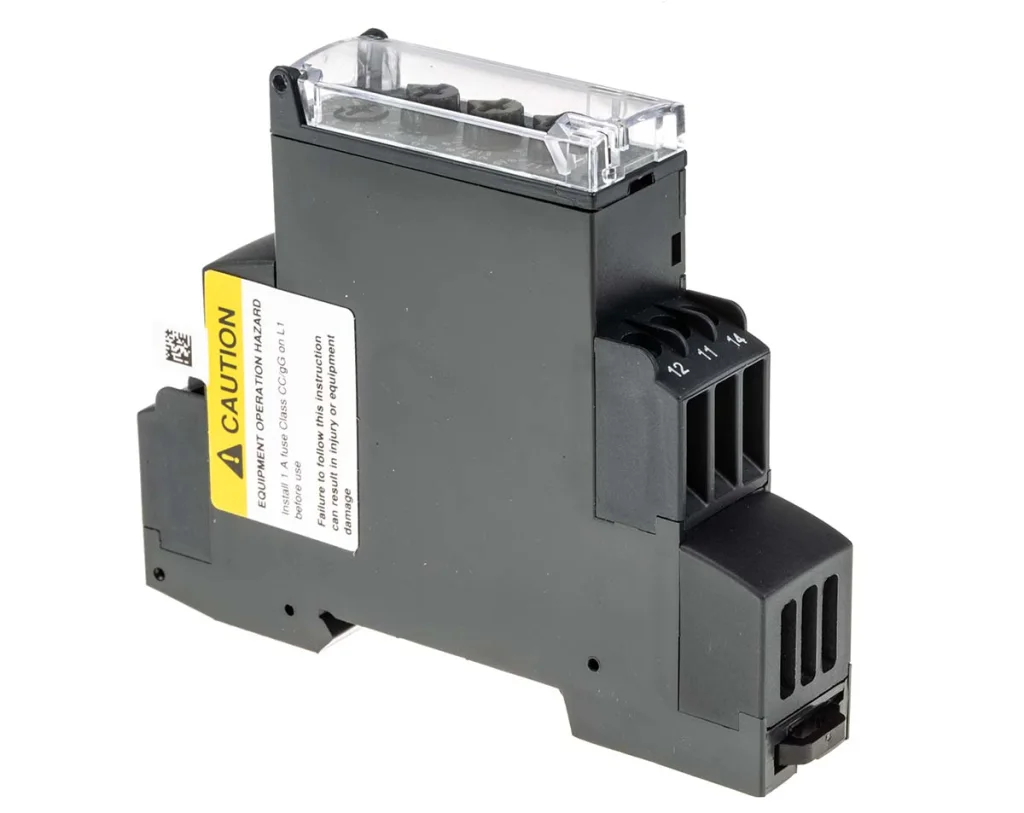

RM17 Tx00 Series Three-Phase Network Control Relay
Schneider Electric RM17Tx00 Series multi-function 3 phase supply control relays. Monitoring the correct sequencing of phases L1, L2, and L3 and the total loss of one or more of each phase. In the event of a phase sequence or missing phase fault, the relay opens instantly. In the event of voltage fault, the relay opens at the end of the time delay set.
APPROVALS : UL, CSA, GL, C-Tick, GOST
Clear hinged front cover
Front face potentiometer
LED output status
DIN rail
Phase, Asymmetry and Under-Voltage / Over-Voltage Controller: RM17 TE00
The relay monitors its own Un supply voltage:
The relay controls: the direct sequence of the three phases, the loss of at least one of the three phases (U measured < 0.7 x Un), asymmetry adjustable from 5 → 15 % of Un, over- and under-voltage drift in window mode adjustable from 2 → 20 % of Un.
Specifications
| Attribute | Value |
| Brand | Schneider Electric |
| Height | 90 mm |
| Length | 72 mm |
| Minimum Voltage Sensed | 183 V ac |
| Voltage Sensing Range | 183 → 528 V ac |
| Monitoring Application | Phase, Voltage |
| Contact Configuration | SPDT |
| Dimensions | 72 x 17.5 x 90 mm |
| Electrical Phase | 3 |
| Maximum Voltage Sensed | 528 V ac |
| Time Delay | 0.1 → 10 s |
| Minimum Operating Temperature | -20 °C |
| Phase Sensitivity | Phase Asymmetry, Phase Failure, Phase Sequence |
| Operating Temperature Range | -20 → +50 °C |
| Width | 17.5 mm |
| Maximum Operating Temperature | +50 °C |
| Voltage Sensitivity | Overvoltage, Undervoltage |
