RS PRO Pneumatic Operated Process Valve
- RS Stock No.:
- 9108513
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 9108513 |
| Product description | RS PRO Pneumatic Operated Process Valve |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: IT
Product Details

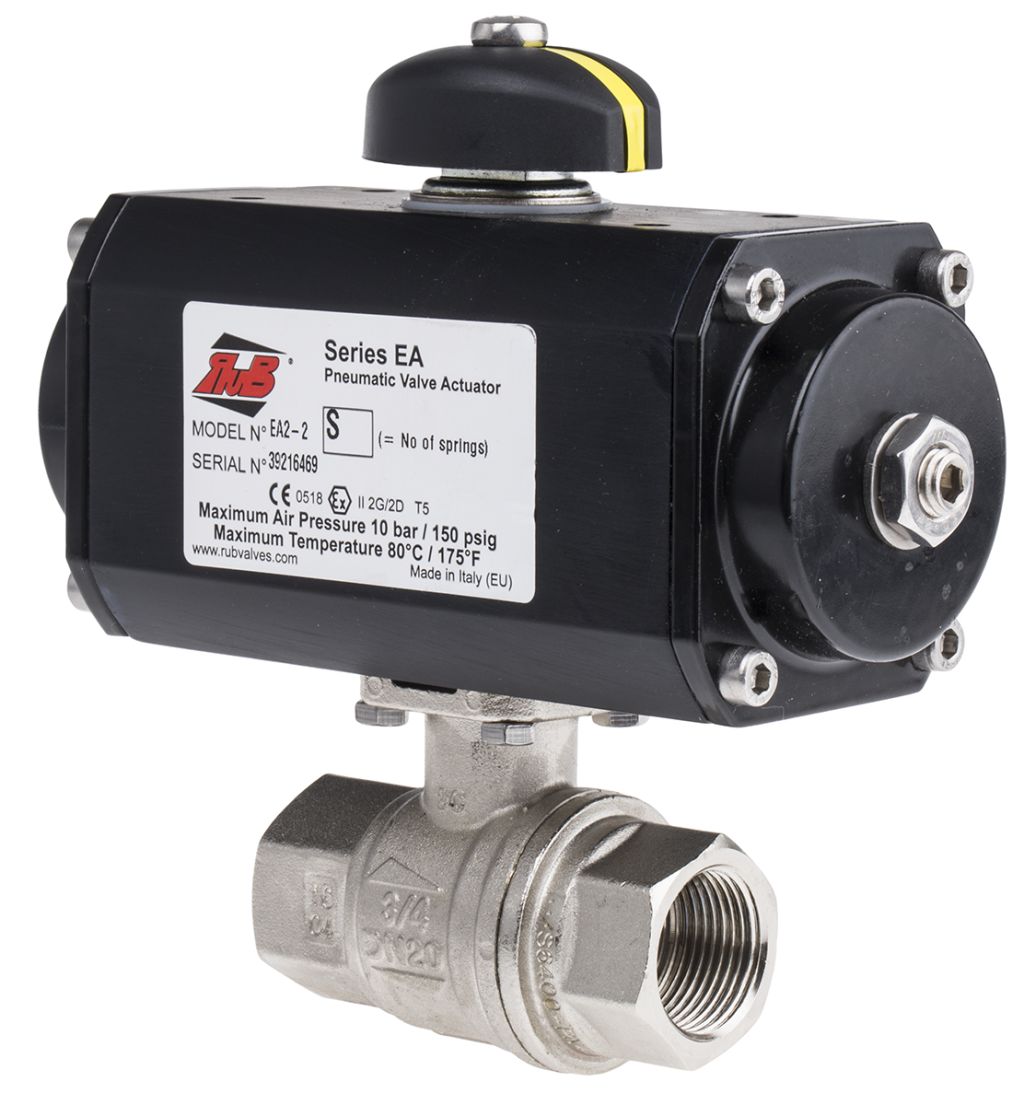

Pneumatic Actuator with s.64 Ball Valve
RS Pro pneumatic actuator with s.64 ball valve.
Features and Benefits
• ISO 5211 direct mount on valve
• NAMUR pads for direct mount of solenoid and limit switch
• Pilot ring for perfect alignment of shaft and stem
• Extruded aluminium body
• Nickel plated steel shaft
• Stainless steel fasteners
• High tensile long life return springs
• Visual position indicator
• Indoor or outdoor installation
• Single travel stop on one end
• Fast field conversion between double-acting and spring-return
• Minimum ambient temperature while actuator at rest: -35°C
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Number of Ports Supported | 2 |
| Actuator Type | Pneumatic |
| Function | Double Acting |
| Operating Pressure Range | 3 → 10 bar |
