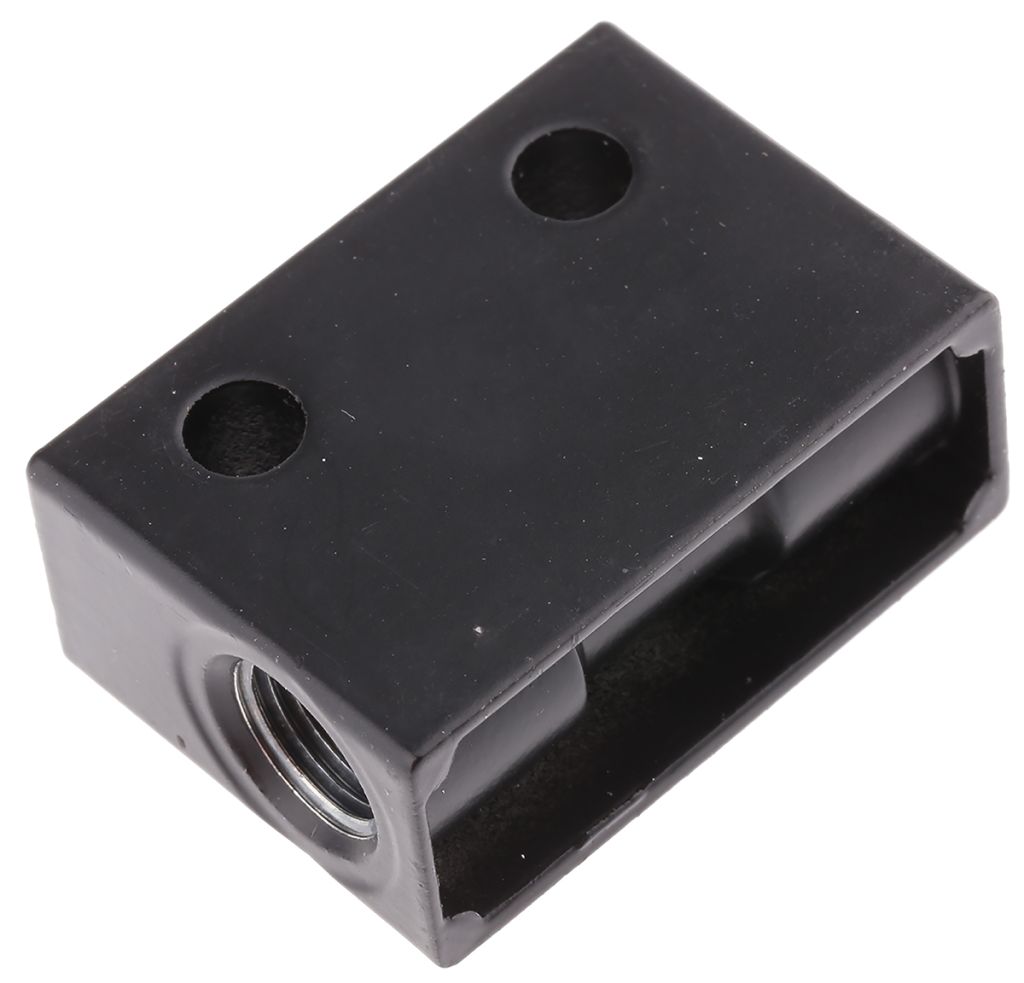

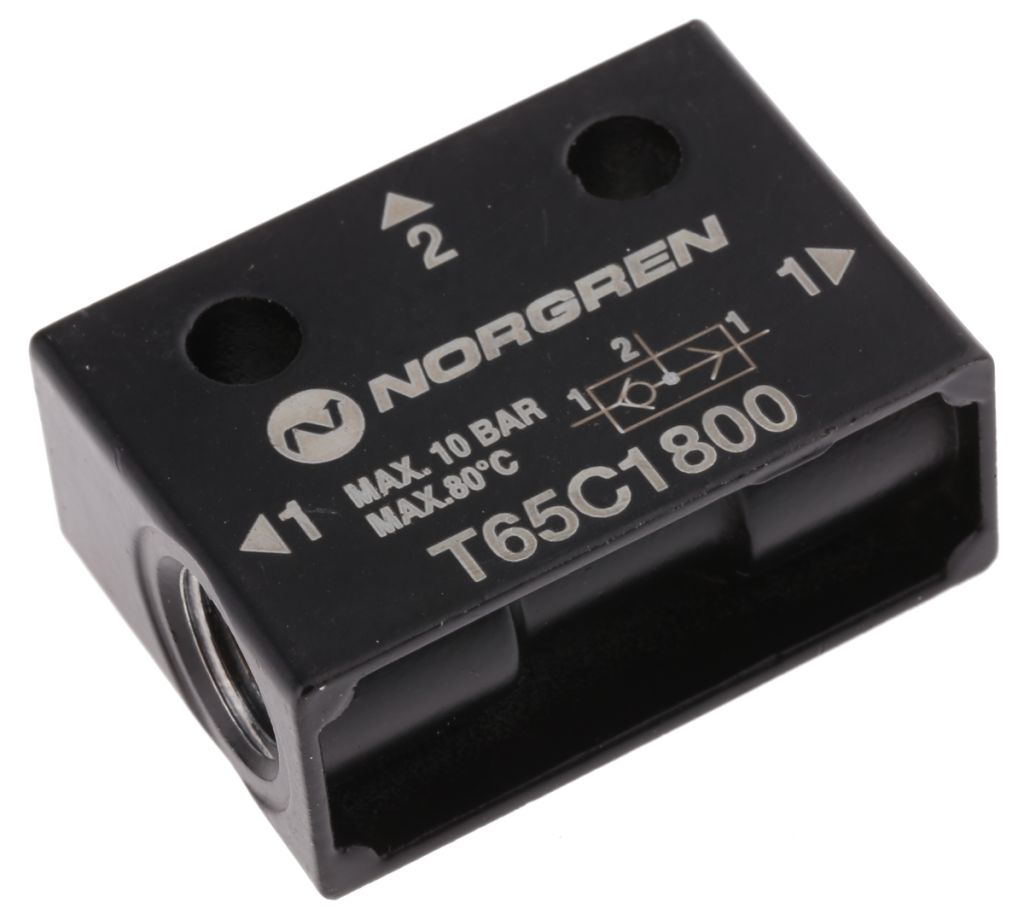

Norgren T65C series 10 bar Pneumatic Logic Controller with OR function
- RS Stock No.:
- 0722542
- Mfr. Prt No.:
- T65C1800
- Brand:
- Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0722542 |
| Product description | Norgren T65C series 10 bar Pneumatic Logic Controller with OR function |
| Manufacturer / Brand | Norgren |
| Manufacturer part number | T65C1800 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Shuttle Valves - BSP Threads
Two shuttle valves which will allow two independent signal sources to be connected to a common pilot line.
May be used to perform an OR logic function
Available with either 1/8 or 1/4 BSP threaded connection ports.
Specifications
| Attribute | Value |
| Brand | Norgren |
| Manufacturer Series | T65C |
| Maximum Operating Pressure | 10 bar |
| Minimum Operating Temperature | -20 °C |
| Minimum Operating Pressure | 0.7 bar |
| Logic Function | OR |
| Maximum Operating Temperature | +80 °C |
