SMC KDM Series Multi-Connector Fitting, Tube-to-Tube Connection Style
- RS Stock No.:
- 2453080
- Mfr. Prt No.:
- KDM10-04
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2453080 |
| Product description | SMC KDM Series Multi-Connector Fitting, Tube-to-Tube Connection Style |
| Manufacturer / Brand | SMC |
| Manufacturer part number | KDM10-04 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 23, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details

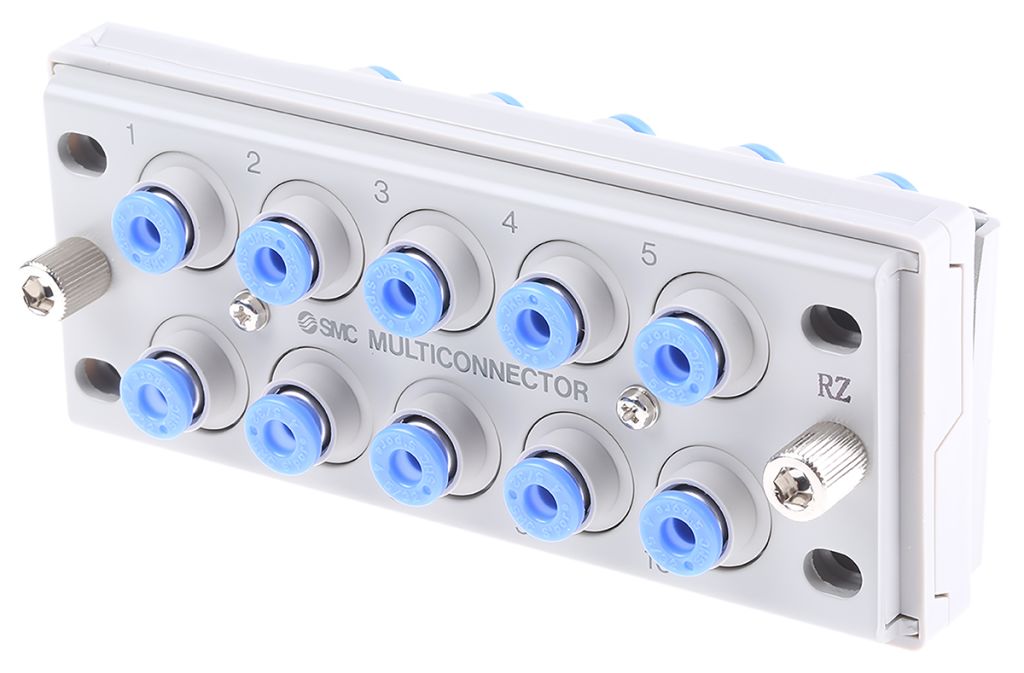

SMC Multi-Connector
The KDM series from SMC are rectangular multi-connectors. This series offers substantial reduction in mounting space and one touch connection / disconnection which reduces labour.
Substantial reduction in mounting space
Panel mountable
Suitable for positive pressure and vacuum
Specifications
| Attribute | Value |
| Brand | SMC |
| Pneumatic Fitting Type | Multi-Connector Fitting |
| Material | PBT |
| Minimum Operating Temperature | -5 °C |
| Maximum Operating Temperature | +60 °C |
| Manufacturer Series | KDM |
| Body Material | PBT |
| Outlet Port | Push In 4 mm |
| Mounting Type | Bulkhead |
| Maximum Operating Pressure | 1 MPa |
| Suitable Media | Air |
| Number of Inlet Ports | 10 |
| Number of Outlet Ports | 10 |
| Inlet Port | Push In 4 mm |
| Connection Style | Tube-to-Tube |
