Panasonic 1 μH 14.1 A Power Choke Coil 9.6mΩ
- RS Stock No.:
- 1220410
- Mfr. Prt No.:
- ETQP3M1R0KVP
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1220410 |
| Product description | Panasonic 1 μH 14.1 A Power Choke Coil 9.6mΩ |
| Manufacturer / Brand | Panasonic |
| Manufacturer part number | ETQP3M1R0KVP |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1220410 |
| Product description | Panasonic 1 μH 14.1 A Power Choke Coil 9.6mΩ |
| Manufacturer / Brand | Panasonic |
| Manufacturer part number | ETQP3M1R0KVP |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: JP
Product Details
Panasonic Non Standard SMT Inductors (Chokes)
ETQP3M Series Low Profile Power Choke Coils

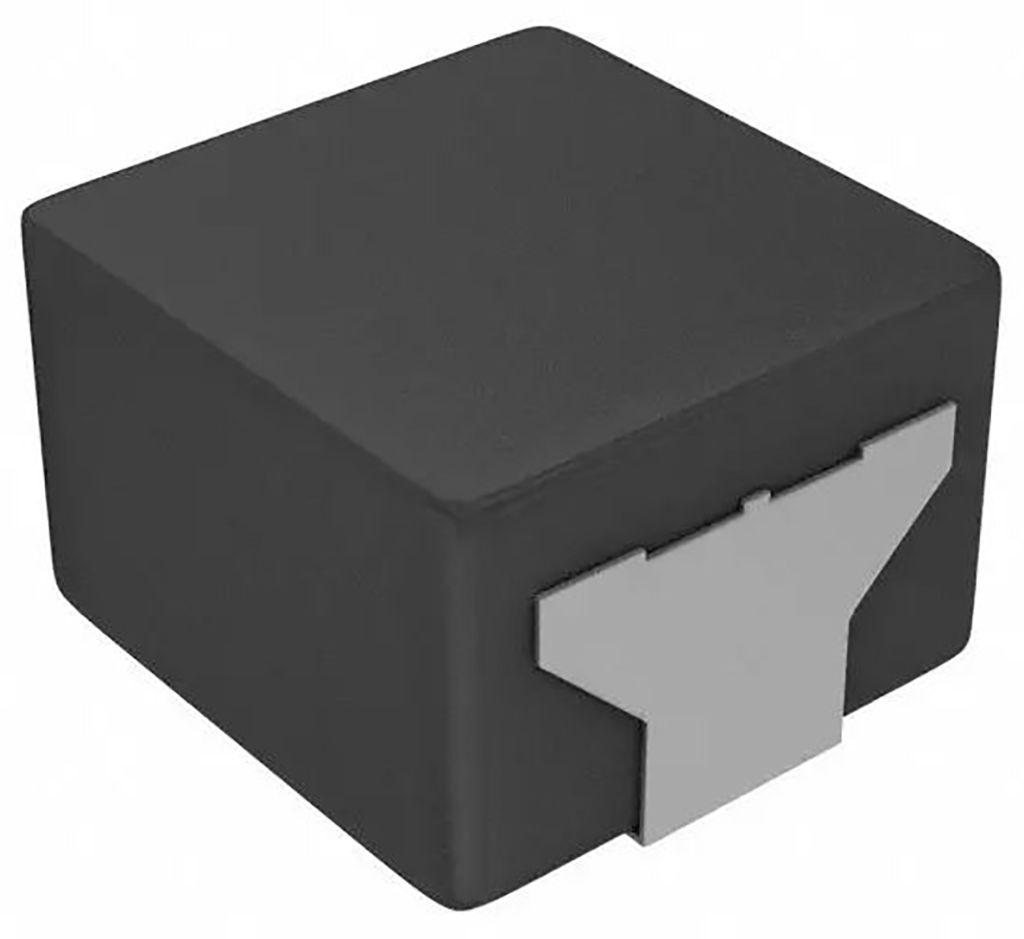

ETQP3M choke coils from Panasonic are a low profile, compact solution. The use of ferrous alloy magnetic material ensures high bias current while low RDC of winding and low eddy-current loss of the cores enables high efficiency. Constructed from metal composite core technology, ETQP3M choke coils are highly reliable and offer high heat resistance up to +155°C. Designed to be used in automotive applications, and harsh conditions, these power choke coils have high vibration resistance. These power choke coils feature low audible (buzz) noise.
Features
Excellent inductance stability over a wide temperature range
Highly efficient
Excellent heat resistance
High bias current
Surface mount design
Low profile
Product Application Information
With an AEC-Q200 qualification, ETQP3M choke coils are suitable for use in automotive applications. These choke coils are recommended as noise filters for drive circuitry that required peak current handling capability and high temperature operations. Other suitable applications include DC/DC buck converters and boost converters.
Specifications
| Attribute | Value |
| Brand | Panasonic |
| Inductance | 1 μH |
| Maximum Operating Temperature | +155 °C |
| Length | 5.5 mm |
| Depth | 5 mm |
| DC Resistance | 9.6 mΩ |
| Minimum Operating Temperature | -55 °C |
| Maximum Current | 14.1 A |
| Series | ETQP3M |
| Height | 3 mm |
| Operating Temperature Range | -55°C → +155°C |
| Dimensions | 5.5 x 5 x 3 mm |
| Mounting Type | Surface Mount |
| Termination Style | Surface Mount |
| Package/Case | 0530 |
