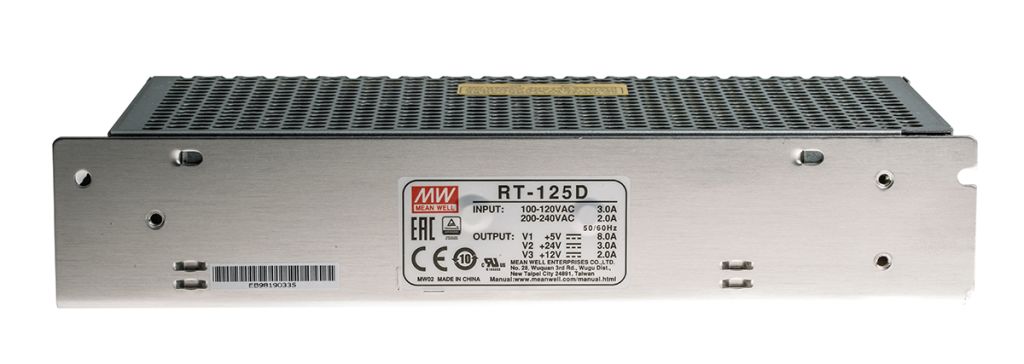

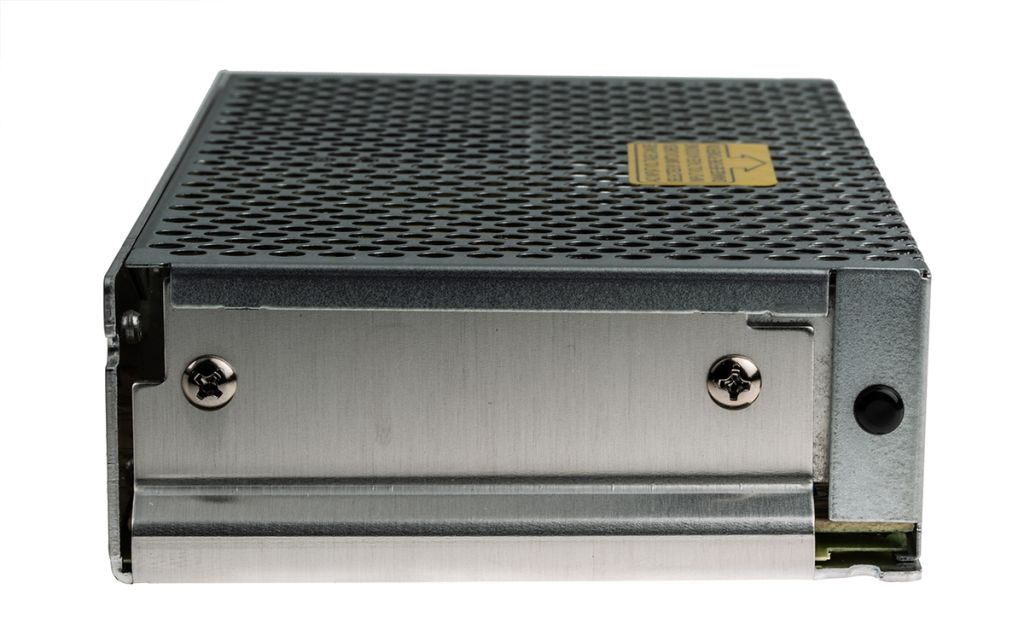

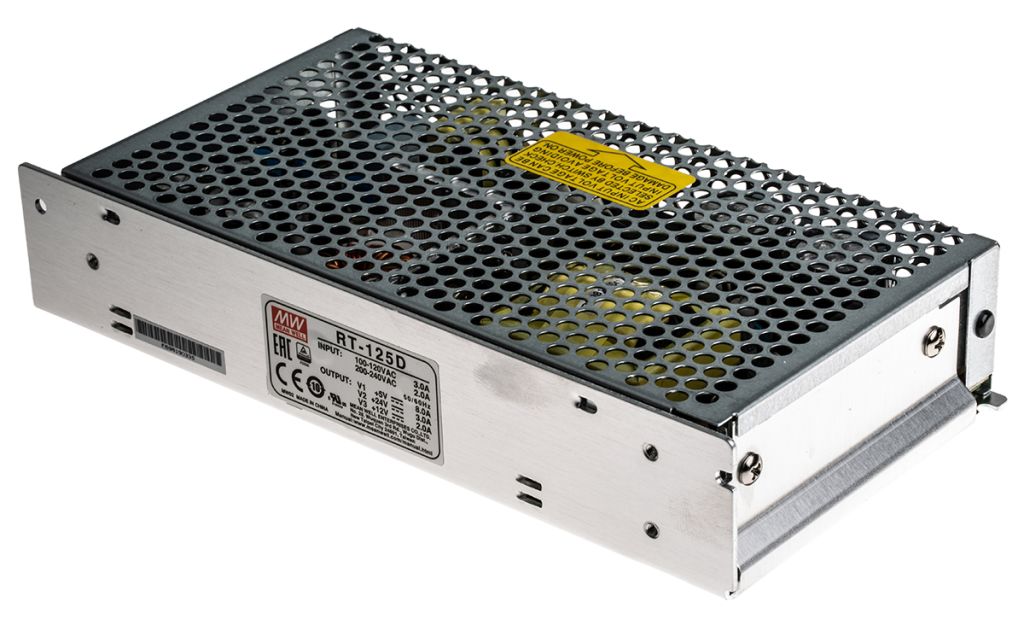

POWER SUPPLY,RT-125D,SMPS,5/24/12V,136W
- RS Stock No.:
- 0413639
- Brand:
- Mean Well
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0413639 |
| Product description | POWER SUPPLY,RT-125D,SMPS,5/24/12V,136W |
| Manufacturer / Brand | Mean Well |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 23, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Specifications
| Attribute | Value |
| Brand | Mean Well |
| Length | 199 mm |
| Power Rating | 136 W |
| Number of Outputs | 3 |
| Package Type | Enclosed |
| Input Voltage | 176 → 264 V ac, 248 → 373 V dc, 88 → 132 V ac |
| Maximum Temperature | +70 °C |
| Mounting Type | Chassis Mount |
| Width | 98 mm |
| Depth | 38 mm |
| Minimum Temperature | -25 °C |
| Efficiency | 82 % |
| Weight | 700 g |
| Output Voltage | 5 V dc, 12 V dc, 24 V dc |
| Output Current | 2 A, 3 A, 8 A |
