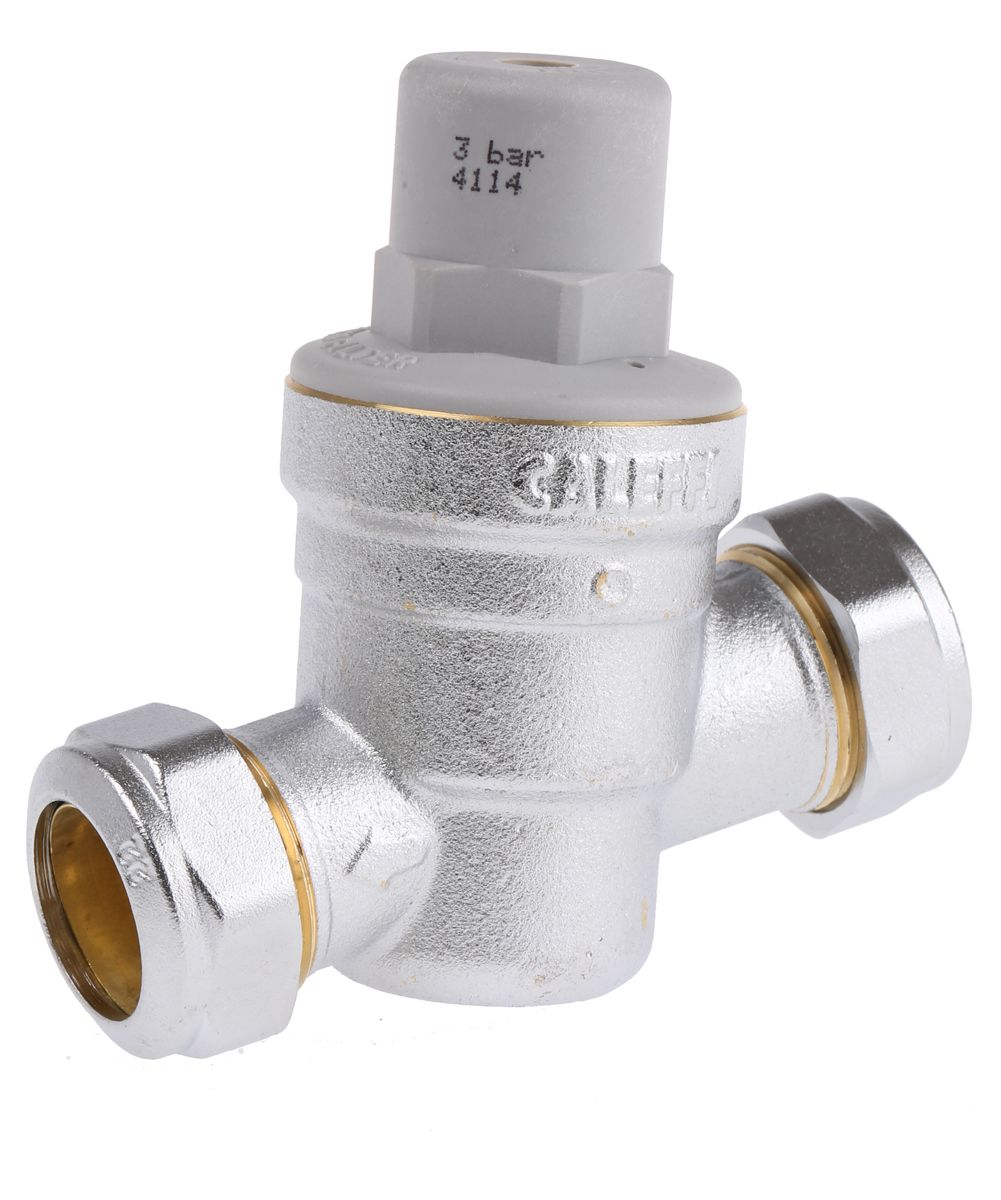

RS PRO Pressure Reducing Valve, 22 mm Compression

RS Stock No.:
4318894
Brand:
RS PRO

Technical Reference


Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 4318894
Product description RS PRO Pressure Reducing Valve, 22 mm Compression
Manufacturer / Brand RS PRO

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Dec 25, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: IT


Product Details

Pressure Reducing Valve - BSP Female

Note

To facilitate maintenance it is recommended that isolation valves are fitted before and after the pressure reducing valve.
No Gauge port

To avoid noise in long runs of pipework and equipment it is desirable to maintain the flow rate less than two litres per second
Suitable for use with water or compressed air
Can be installed in any position and serviced in situ
Single piece acetal resin cartridge
Preset pressure
40°C maximum operating temperature

L761345-01L761351-01

Specifications

Attribute Value
Brand RS PRO
Connection 22 mm Compression
Minimum Outlet Pressure 1 bar
Maximum Outlet Pressure 6 bar
Maximum Flow Rate 2 L/s
Connection Size 22 mm
Thread Standard or Connection Type Compression
Body Material Chrome Plated Brass
Outlet Pressure Range 1 → 6 bar
