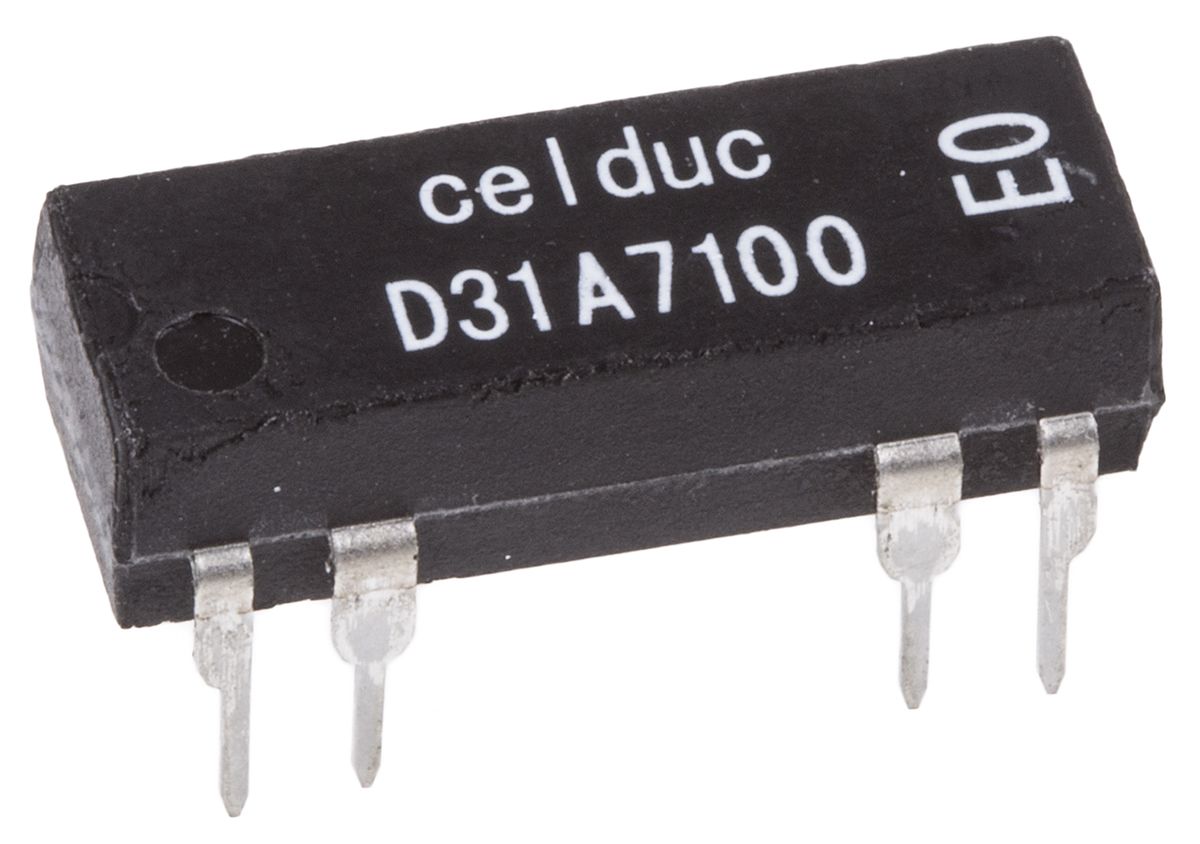

Celduc SPNO Reed Relay, 24V dc Coil, 2.15 kΩ, Plug In
- RS Stock No.:
- 1782725
- Mfr. Prt No.:
- D31A7100
- Brand:
- Celduc
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 1782725 |
| Product description | Celduc SPNO Reed Relay, 24V dc Coil, 2.15 kΩ, Plug In |
| Manufacturer / Brand | Celduc |
| Manufacturer part number | D31A7100 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 23, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Celduc Reed Relays
Specifications
| Attribute | Value |
| Brand | Celduc |
| Contact Configuration | SPNO |
| Coil Voltage | 24 V dc |
| Mounting Type | Plug In |
| Maximum Switching Voltage AC | 100 V ac |
| Maximum Switching Voltage DC | 100 V dc |
| Coil Resistance | 2.15 kΩ |
| Length | 19.1 mm |
| Height | 6.8 mm |
| Depth | 7.85 mm |
| Dimensions | 19.1 x 7.85 x 6.8 mm |
| Isolation Coil To Contact | 1.4 kV dc |
| Life | 1000000 (Electrical) cycles |
| Operating Temperature Range | -40 → +70 °C |
| Terminal Type | Through Hole |
| Contact Material | Rhodium |
| Contact Resistance | 150 mΩ |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +70 °C |
| Operating Time Including Bounce | 1 ms |
| Maximum Switching Power DC | 10 W |
