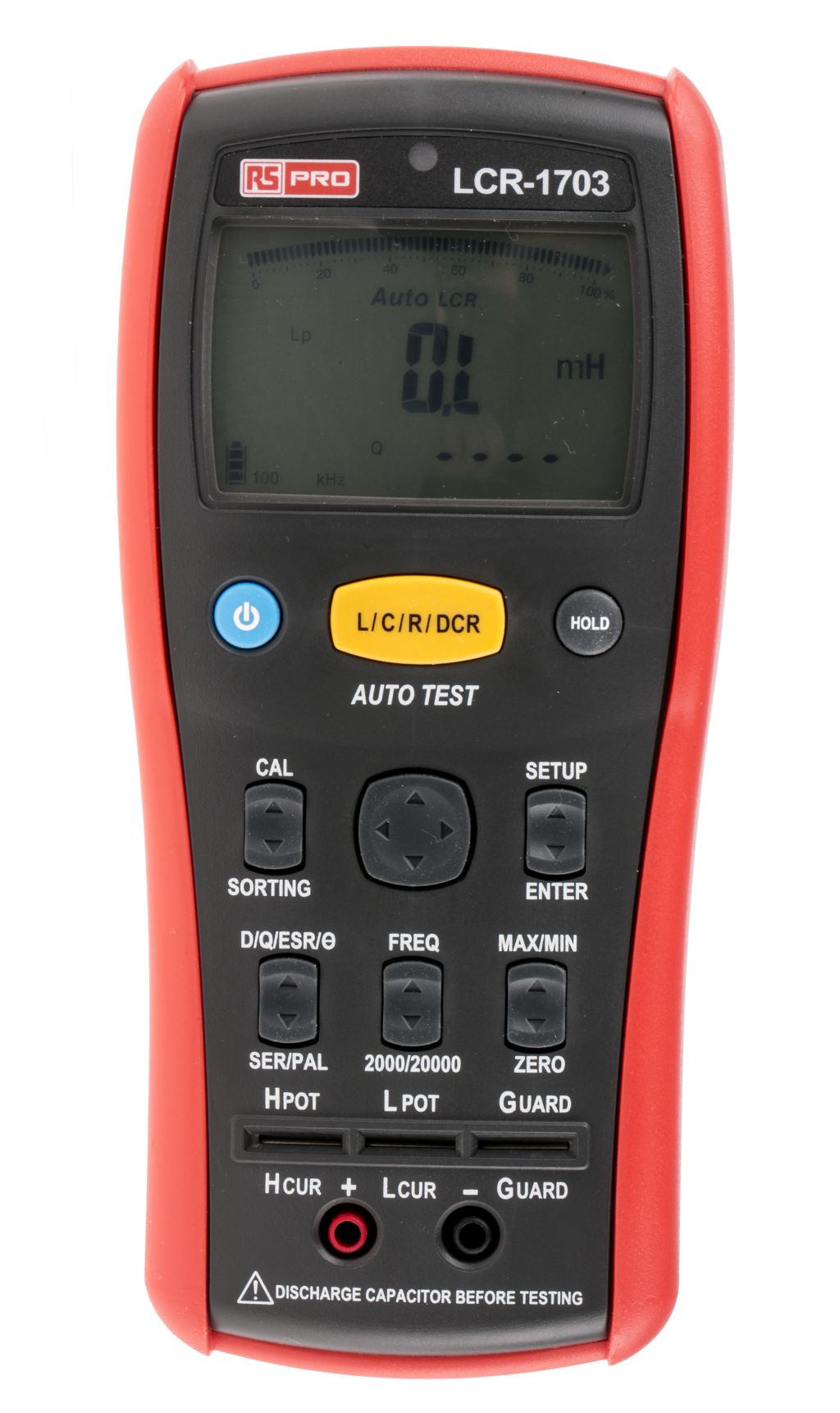

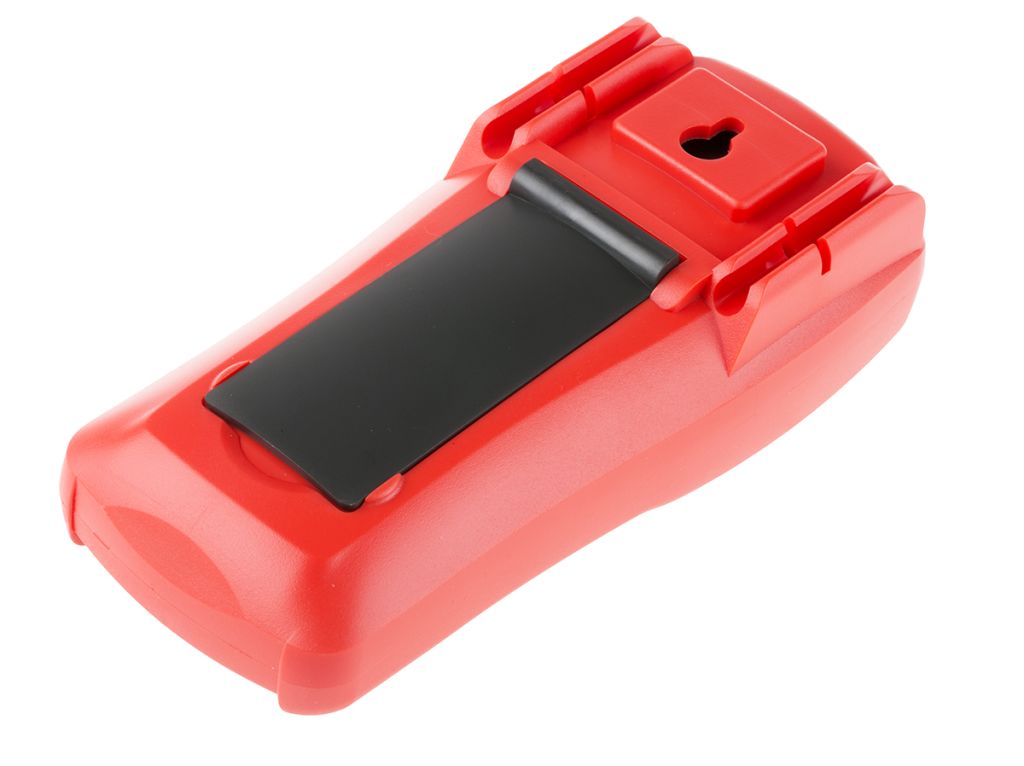

RS Pro LCR1703 LCR Meter
RS Pro LCR1703 hand held LCR smart meter features innovative automatic selection technology. Its USB interface provides the convenience of external DC power supply and connection to a PC for data acquisition. The auto ON/OFF backlit display gives the user continuous visibility while extending battery life. This instrument is competitively priced, technically advanced, highly efficient, slim and tactile, with ergonomically designed comfort grip. Also includes alligator clips, shorting bar, magnetic hanging kit, 4 wires SMD test clip, DC power cable, USB cable, software CD, battery (installed) and manual.
SUPPLIED_WITH : Alligator clips, shorting bar, magnetic hanging ki
Features and Benefits:
• 20000/2000 Count dual digital display
• 46 segments bar graph display
• Auto selection of LCR testing
• Auto-ranging
• 0.2% basic accuracy capacitance and inductance
• Measurement parameters L.C.R.D.Q., Ɵ, EsR
• Test frequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz selectable
• Parallel/serial test mode
• Sorting mode for QC
Dimensions (W x L x D): 95 mm x 207 mm x 52 mm
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Maximum Resistance Measurement | 200 MΩ |
| Power Source | Battery |
| Minimum Operating Temperature | 0 °C |
| Height | 200 mm |
| Width | 51.2 mm |
| Length | 95 mm |
| Model Number p | LCR-1703 |
| Battery Life | 50 h |
| Bench/Handheld | Handheld |
| Weight | 605 g |
| Battery Type | AA |
| Dimensions | 95 x 51.2 x 200 mm |
| Maximum Inductance Measurement | 20000 H |
| Display Type | Auto Backlit Bar Graph Display |
| Maximum Operating Temperature | +50 °C |
| Maximum Capacitance Measurement | 20 mF |
