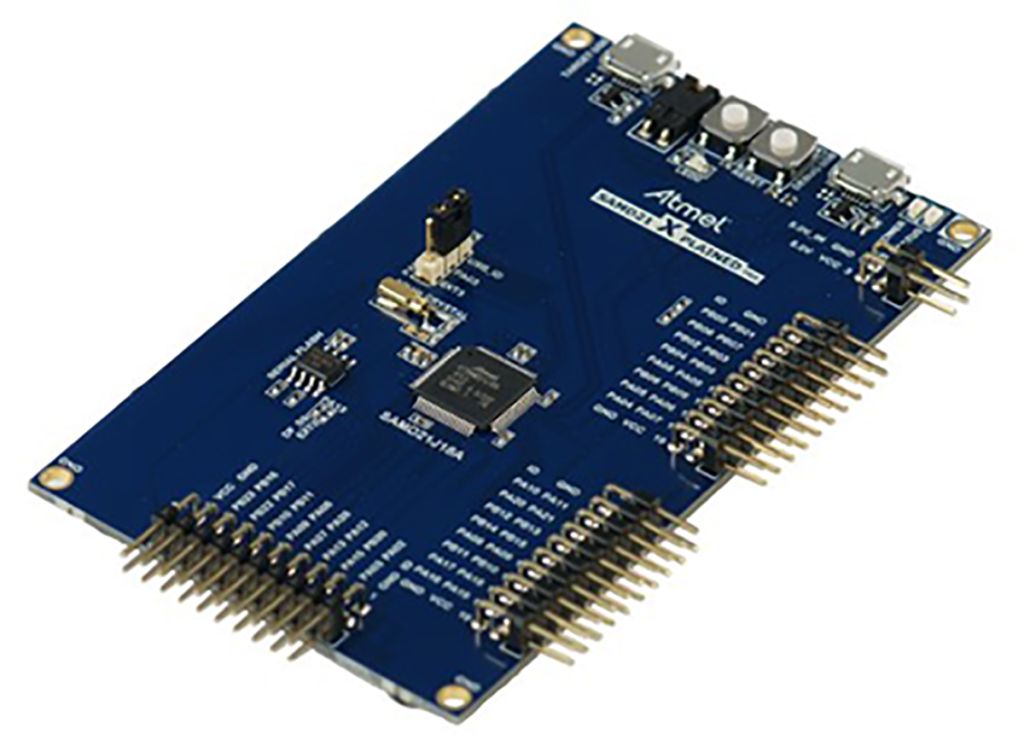

Microchip Xplained Pro MCU Development Board ATSAMD21-XPRO
- RS Stock No.:
- 1306174
- Mfr. Prt No.:
- ATSAMD21-XPRO
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1306174 |
| Product description | Microchip Xplained Pro MCU Development Board ATSAMD21-XPRO |
| Manufacturer / Brand | Microchip |
| Manufacturer part number | ATSAMD21-XPRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1306174 |
| Product description | Microchip Xplained Pro MCU Development Board ATSAMD21-XPRO |
| Manufacturer / Brand | Microchip |
| Manufacturer part number | ATSAMD21-XPRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
ATSAMD21 Xplained Pro Development Board
The Atmel® ATSAMD21 XPRO evaluation kit is intended to prototype and evaluate the ATSAM D21 ARM® Cortex®M0+ based microcontrollers. The SAM D21 Xplained Pro microcontroller kit hardware platform is supported by the Atmel Studio integrated development platform (IDP). In addition the Xplained Pro MCU series kit includes an on board embedded debugger with no need for any further tools to program or debug the ATSAMD21J18A microcontroller.
Features & Benefits of the ATSAMD21 Xplained Pro Development Board
•SAMD21J18A microcontroller
•User and reset button
•USB interface
•8 Mbit Serial Flash
•Xplained Pro extension headers x 3
•Embedded Debugger(EDBG)
•Status LED
•32 kHz crystal
Specifications
| Attribute | Value |
| Brand | Microchip |
| Classification | Development Board |
| Kit Name | Xplained Pro |
| Technology | MCU |
| Device Core | ARM Cortex M0+ |
| Processor Family Name | SAM |
| Processor Part Number | SAMD21J18A |
| Processor Type | MCU |
