Sauter FK 25 Force Gauge 1000Hz, Range: 25N, Resolution: 0.01 N

RS Stock No.:
0559707
Mfr. Prt No.:
FK 25
Brand:
Sauter

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 0559707
Product description Sauter FK 25 Force Gauge 1000Hz, Range: 25N, Resolution: 0.01 N
Manufacturer / Brand Sauter
Manufacturer part number FK 25

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Nov 2, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: CN


Product Details

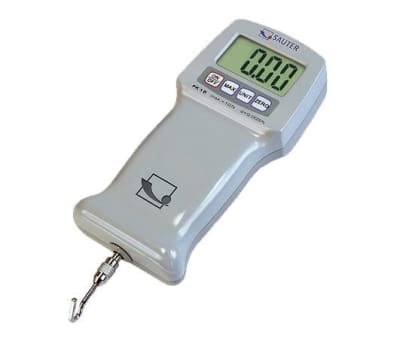

FK Series Force Gauge, Digital

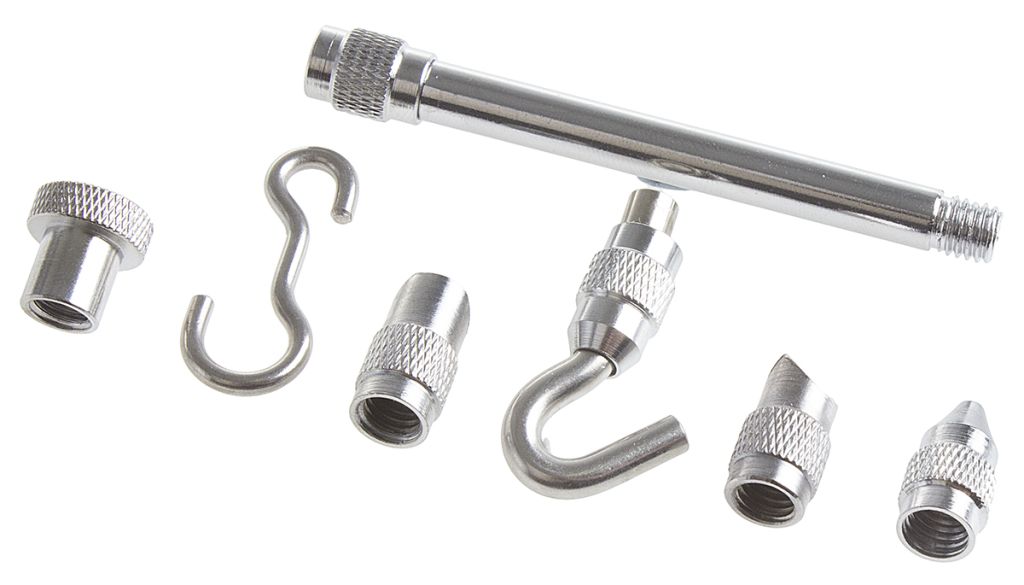

SUPPLIED_WITH : Measuring instrument with Euro-plug charger and 6

Digital force gauge for easy measurement of tractive and compressive forces
Measurement frequency 1000 Hz
Measurement accuracy ±0.5%, overload protection for 200% of final value
Display rotatable through 180 °, with indicator in N, kg, lb and oz
Peak hold function for recording max. measured force, track function for continuous measurement
Suitable for use with all Sauter test stands


Specifications

Attribute Value
Brand Sauter
Measurement Units kg, lb, N, oz
Width 84 mm
Length 195 mm
Best Accuracy ±0.5 %
Resolution 0.01 N
Maximum Operating Temperature +30 °C
Minimum Operating Temperature +10 °C
Height 35 mm
Range 25 N
Weight 600 g
Sampling Rate 1000 Hz
Plug Type Type A - North American/Japanese 2-blade, Type C - European Plug, Type G - British 3-pin
